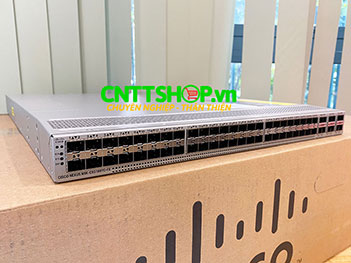

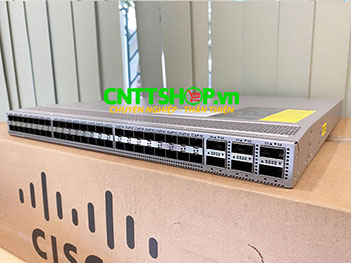

Cisco Nexus 9000 series N9K-C93180YC-FX-24 fixed with 24p 1/10G/25G SFP and 6p 40G/100G QSFP28.
Part Number |
:
|
List Price |
: $
|
Giá bán |
:
|
Bảo hành |
:
|
Made In |
:
|
Stock |
:
|
Cisco Nexus 93180YC-FX-24 là thiết bị chuyển mạch One-Rack-Unit (1RU) có độ trễ dưới 1 micro giây. Switch N9K-C93180YC-FX-24 với 24 cổng downlink (được cấp phép sử dụng 24 trong số 48 cổng bất kỳ) trên 93180YC-FX-24 có khả năng hỗ trợ Ethernet 1-, 10- hoặc 25-Gbps hoặc dưới dạng cổng Fibre Channel 16 hoặc 32-Gbps, tạo ra một điểm hội tụ cho các máy chủ lưu trữ tài nguyên back-end.
View Datasheet N9K-C93180YC-FX-24
6 cổng uplink có thể được cấu hình thành cổng Ethernet hoặc FCoE 40 và 100 Gbps, cung cấp các tùy chọn truyền tải linh hoạt. Bộ chuyển mạch này có khả năng tuân thủ IEEE, FC-FEC và RS-FEC để hỗ trợ 25-Gbps. Tất cả các cổng đều hỗ trợ mã hóa MACsec wire-rate.
Specifications | |
Ports | 24 x 10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports (total number of ports is 48) |
Downlink supported speeds | 1/10/25-Gbps speeds |
CPU | 4 cores |
System memory | 24 GB |
SSD drive | 64 GB |
System buffer | 40 MB |
Management ports | 1 RJ-45 port L1 and L2 ports are unused |
USB ports | 1 |
RS-232 serial ports | 1 |

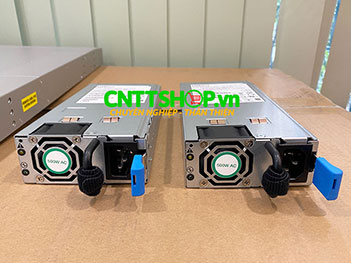

Power supplies (up to 2) | 500W AC, 930W DC, or 1200W HVAC/HVDC |
Typical power (AC/DC) | 260W |
Maximum power (AC/DC) | 425W |
Input voltage (AC) | 100 to 240V |
Input voltage (high-voltage AC [HVAC]) | 200 to 277V |
Input voltage (DC) | –48 to –60V |
Input voltage (high-voltage DC [HVDC]) | –240 to –380V |
Frequency (AC) | 50 to 60 Hz |

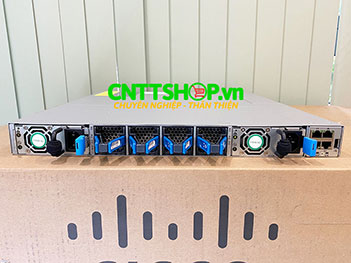

Fans | 4 |
Airflow | Port-side intake and exhaust |
Physical dimensions (H x W x D) | 1.72 x 17.3 x 22.5 in (4.4 x 43.9 x 57.1 cm) |
Acoustics | 57 dBA at 40% fan speed, 68.9 dBA at 70% fan speed, and 77.4 dBA at 100% fan speed |
RoHS compliance | Yes |
MTBF | 238,470 hours |
Minimum ACI image | ACI-N9KDK9-14.2.1 |
Minimum NX-OS image | NXOS-9.3.2 |
Performance and scalability | |
Maximum number of Longest Prefix Match (LPM) routes | 1,792,000 |
Maximum number of IP host entries | 1,792,000 |
Maximum number of MAC address entries | 512,000 |
Maximum number of multicast routes | 128,000 |
Number of Interior Gateway Management Protocol (IGMP) snooping groups | Shipping: 8000 Maximum: 32,000 |
Maximum number of Cisco Nexus 2000 Series Fabric Extenders per switch | 16 |
Maximum number of Access Control List (ACL) entries | Single-slice forwarding engine: 5000 ingress 2000 egres |
Maximum number of VLANs | 4096 |
Number of Virtual Routing and Forwarding (VRF) instances | Shipping: 1000 Maximum: 16,000 |
Maximum number of ECMP paths | 64 |
Maximum number of port channels | 512 |
Maximum number of links in a port channel | 32 |
Number of active SPAN sessions | 4 |
Maximum number of VLANs in Rapid per-VLAN Spanning Tree (RPVST) instances | 3967 |
Maximum number of Hot-Standby Router Protocol (HSRP) groups | 490 |
Number of Network Address Translation (NAT) entries | 1023 |
Maximum number of Multiple Spanning Tree (MST) instances | 64 |
Flow-table size used for Cisco Tetration platform | 64,000 |
Number of queues | 8 |
