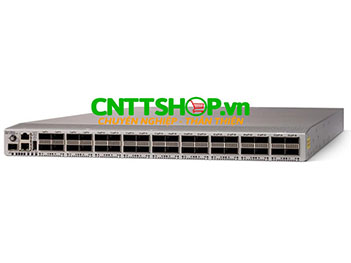

Switch Cisco Nexus N3K-C3636C-R 3636C-R switch, 36 Ports QSFP28 MACSEC
Cisco Part Number |
:
|
List Price |
: $
|
Giá bán |
:
|
Bảo hành |
:
|
Made In |
:
|
Stock |
:
|
Thiết bị chuyển mạch Cisco Nexus N3K-C3636C-R là một bộ chuyển mạch 10G, 25G, 40G hoặc 100 Gigabit Ethernet (GE) tốc độ cao, mật độ cao được thiết kế cho trung tâm dữ liệu. Bộ đệm lớn và kích thước bảng định tuyến của Cisco Nexus N3K-C3636C-R cũng làm cho switch này trở thành một lựa chọn thay thế cho một loạt các ứng dụng, chẳng hạn như IP storage, demilitarized zone (DMZ), big data, và edge routing.
View Datasheet N3K-C3636C-R
Switch Cisco Nexus N3K-C3636C-R được thiết kế 1-Rack-Unit (1RU) nhỏ gọn và cung cấp các chức năng Lớp 2 và Lớp 3 mở rộng. Nó là một phần của R-Series và sử dụng Phần mềm Cisco® NX-OS hàng đầu trong ngành.

Thông số kỹ thuật Switch Cisco Nexus N3K-C3636C-R
Description
|
Specification
|
Physical
|
- 1RU fixed-form-factor switch
- 36 QSFP28 ports; each supports native 100-GE and 40-GE mode
- 2 redundant power supplies
- 3 redundant fans
- Lane select LED button
- Management, console, and USB flash-memory ports
|
Performance
|
- 7.2-Tbps switching capacity
- Forwarding rate of up to 3.34 bpps
- Line-rate traffic throughput (both Layer 2 and 3) on all ports for packet size larger than 115 bytes
- Configurable Maximum Transmission Unit (MTU) of up to 9216 bytes (jumbo frames)
|
Hardware tables and scalability
|
Number of MAC addresses
|
750,000
|
Number of Virtual LANs (VLANs)
|
4096
|
Number of spanning-tree instances
|
- Rapid Spanning Tree Protocol (RSTP): 512
- Multiple Spanning Tree Protocol (MSTP): 64
|
Number of Access Control List (ACL) entries
|
- 7000 ingress
|
Routing table*
|
- Maximum number of Longest-Prefix-Match (LPM) routes: 128,000
- Maximum number of IP host entries:750,000
- Maximum number of MAC address entries: 192,000
- Maximum number of Layer 3 multicast entries: 64,000
|
Number of EtherChannels
|
256 (with VPC)
|
Number of ports per EtherChannel
|
32
|
Buffer size
|
16 GB
|
System memory
|
32 GB
|
Boot-flash memory
|
128 GB
|
Frequency
|
50 to 60 Hz
|
Power
|
Power-supply types
|
AC (forward and reverse airflow) DC (port-side exhaust)
|
Typical operating power
|
921 Watt (W)
|
Maximum power
|
1,341W
|
AC Power-Supply Units (PSUs)
- Input voltage
- Frequency
- Power-supply efficiency
|
- 100 to 240 VAC
- 50 to 60 Hz
- 89–91% at 220V
|
|
Maximum heat dissipation
|
2,631 MBtuTU
|
|
- Forward and reverse airflow schemes
◦ Forward airflow: Port-side exhaust (air enters through fan tray and power supplies and exits through ports)
◦ Reverse airflow: Port-side intake (air enters through ports and exits through fan tray and power supplies)
- Redundant fans
Hot-swappable (must swap within 31 minutes)
|
|
|
Measured sound power (maximum)
- Fan speed (PE): 50% duty cycle
- Fan speed (PE): 90% duty cycle
- Fan speed (PI) 50% duty cycle
- Fan speed (PI) 90% duty cycle
Fan speed: 100% duty cycle
|
- 74.6 dBA
- 87.5 dBA
- 76.2 dBA
- 90.0 dBA
|
Cooling
|
- Dimensions (height x width x depth)
1.65 x 17.3 x 31.22 in. (4.2 x 44 x 79.3 cm) 1.72 x 17.3 x 26.85 in. (4.4 x 43.9 x 68.2 cm)
|
Sound
|
- Weight
|
- 35.627.1 lb (12.316.1 kg)
|
Environment
|
Temperature: Operating
|
32 to 104°F (0 to 40°C)
|
Temperature: Storage
|
–40 to 158°F (–40 to 70°C)
|
Relative humidity: Operating
|
- 10– to 85% noncondensing
- Up to 5 days at maximum (85%) humidity
Recommend American Society of Heating, Refrigeration, and
Air-Conditioning Engineers (ASHRAE) data center environment
|
Relative humidity: Storage
|
5 –to 95% noncondensing
|
Altitude
|
- 0– to 10,000 ft (0 to 3000m)
|
Mean Time Between Failures (MTBF)
|
194,870 hours
|
Bạn đang cần tư vấn về sản phẩm: N3K-C3636C-R ?
Chào anh, thông tin và báo giá về dịch vụ bảo hành 01 năm cho switch Cisco Nexus N3K-C3636C-R đã được gửi vào mail. Anh vui lòng check mail nhé.
Chào chị, thông tin và báo giá về module khác chạy được cho switch cisco Nexus N3K-C3636C-R đã được gửi vào mail. Chị vui lòng check mail nhé.
Chào anh, thông tin và báo giá về thiết bị chuyển mạch Switch Cisco Nexus N3K-C3636C-R đã được gửi vào mail. Anh vui lòng check mail nhé.
Thiết bị chuyển mạch cisco Nexus N3K-C3636C-R dùng được cả 2 nguồn ạ
switch Cisco Nexus N3K-C3636C-R có cấu hình bằng giao diện web được bạn nhé
