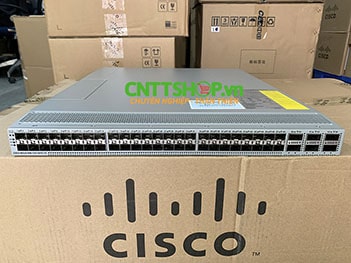

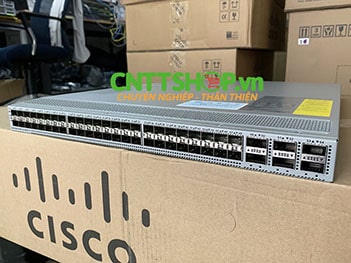

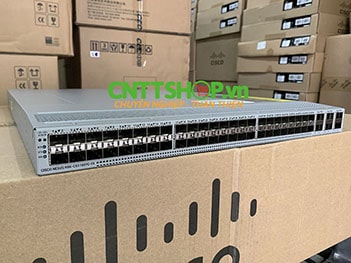

N9K-C93180YC-FX Cisco Nexus Switch 48 x 1/10/25-Gbps fiber ports and 6 x 40/100-Gbps QSFP28 ports
Nexus 9300 series N9K-C93180YC-FX with 48p 1/10G/25G SFP and 6p 40G/100G QSFP28.
Cisco Part Number : N9K-C93180YC-FX
List Price : $27500
Giá bán : Liên hệ
Bảo hành : 12 tháng
Made In : China
Stock : Liên hệ
Cisco Nexus N9K-C93180YC-FX là thiết bị chuyển mạch 1RU có độ trễ dưới 1 micro giây, hỗ trợ băng thông 3,6 Tbps và 1,4 bpps. 48 cổng downlink trên 93180YC-FX có khả năng hỗ trợ Ethernet 1-, 10- hoặc 25 Gbps hoặc các cổng Fibre Channel 16-, 32 Gbps.
| View Datasheet N9K-C93180YC-FX |
Nexus N9K-C93180YC-FX với 6 cổng up link có thể được cấu hình là cổng Ethernet hoặc FCoE 40 và 100 Gbps, cung cấp các tùy chọn linh hoạt. Bộ chuyển mạch có tính năng tuân thủ theo chuẩn IEEE, FC-FEC và RS-FEC để hỗ trợ 25 Gbps. Tất cả các cổng đều hỗ trợ mã hóa wire-rate MACsec.
Thông số kỹ thuật
| Ports | 48 x 10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports |
| Downlink supported speeds |
1/10/25-Gbps Ethernet
16/32-Gbps Fibre Channel
|
| CPU | 6 cores |
| System memory | 24 GB |
| SSD drive | 128 GB |
| System buffer | 40 MB |
| Management ports |
1 RJ-45 port
L1 and L2 ports are unused
|
| USB ports | 1 |
| RS-232 serial ports | 1 |

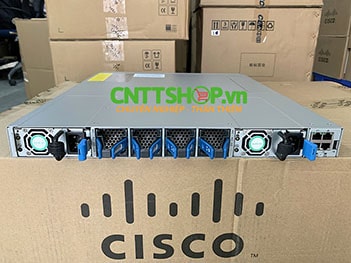

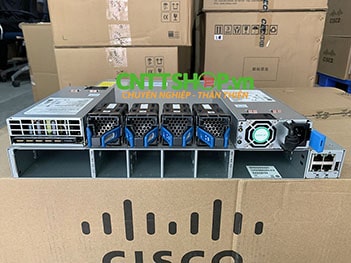

| Power supplies (up to 2) | 500W AC, 930W DC, or 1200W HVAC/HVDC |
| Typical power (AC/DC) | 260W |
| Maximum power (AC/DC) | 425W |
| Input voltage (AC) | 100 to 240V |
| Input voltage (high-voltage AC [HVAC]) |
200 to 277V |
| Input voltage (DC) | –48 to –60V |
| Input voltage (high-voltage DC [HVDC]) |
–240 to –380V |
| Frequency (AC) | 50 to 60 Hz |
| Fans | 4 |
| Airflow | Port-side intake and exhaust |
| Physical dimensions (H x W x D) |
1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1 cm) |
| Acoustics | 57 dBA at 40% fan speed, 68.9 dBA at 70% fan speed, and 77.4 dBA at 100% fan speed |
| RoHS compliance | Yes |
| MTBF | 238,470 hours |
| Minimum ACI image | ACI-N9KDK9-12.2A |
| Minimum NX-OS image | NXOS-703I7.1 |
Hardware performance and scalability specifications
| Maximum number of Longest Prefix Match (LPM) routes | 1,792,000 |
| Maximum number of IP host entries | 1,792,000 |
| Maximum number of MAC address entries | 512,000 |
| Maximum number of multicast routes | 32,000 |
| Number of Interior Gateway Management Protocol (IGMP) snooping groups |
Shipping: 8,000
Maximum: 32,000
|
| Maximum number of Cisco Nexus 2000 Series Fabric Extenders per switch | 16 |
| Maximum number of Access Control List (ACL) entries |
Single-slice forwarding engine:
5000 ingress
2000 egress
|
| Maximum number of VLANs | 3,967 |
| Number of Virtual Routing and Forwarding (VRF) instances |
Shipping: 1,000
Maximum: 16,000
|
| Maximum number of ECMP paths | 64 |
| Maximum number of port channels | 512 |
| Maximum number of links in a port channel | 32 |
| Number of active SPAN sessions | 4 |
| Maximum number of VLAN’s in Rapid per-VLAN Spanning Tree (RPVST) instances | 3,967 |
| Maximum number of Hot-Standby Router Protocol (HSRP) groups | 490 |
| Number of Network Address Translation (NAT) entries | 1,023 |
| Maximum number of Multiple Spanning Tree (MST) instances | 64 |
| Flow-table size used for Cisco Tetration Analytics platform | 32,000 |
