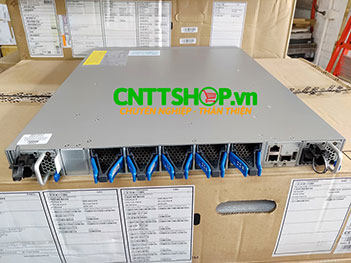

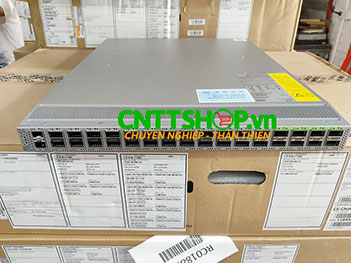

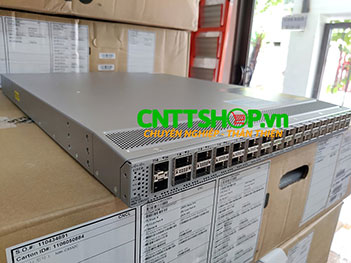

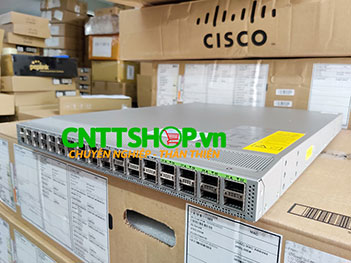

Cisco Nexus 9332C ACI Spine Switch N9K-C9332C with 32p 40/100G QSFP28, 2p 1/10G SFP.
Part Number |
:
|
List Price |
: $
|
Giá bán |
:
|
Bảo hành |
:
|
Made In |
:
|
Stock |
:
|
Thiết bị chuyển mạch Cisco Nexus N9K-C9332C là thiết bị chuyển mạch dòng Spine với kích thước 1-Rack-Unit (1RU) hỗ trợ băng thông 6,4 Tbps và 2,3 bpps. N9K-C9332C bao gồm 32 cổng QSFP28 cố định 40 / 100G và 2 cổng SFP + cố định 1 / 10G .
Thiết bị không hỗ trợ cáp breakout, 8 cổng cuối cùng được đánh dấu màu xanh lục có khả năng mã hóa wire-rate MACsec. Switch N9K-C9332C có thể hoạt động ở chế độ Cisco ACI Spine hoặc NX-OS.
Specifications | |
Physical |
- 32-port 40/100G QSFP28 ports and 2-port 1/10G SFP+ ports
- Buffer: 40MB
- System memory: 16 GB
- SSD: 128GB
- USB: 1 port
- RS-232 serial console ports: 1
- Management ports: 2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP)
- Broadwell-DE CPU: 4 cores
|
Power and cooling |
- Power: 1100W AC, 1100 DC or 1100W HVAC/HVDC - Input voltage: 100 to 240V AC or -40V to -72V DC (min‑max), -48V to -60V DC (nominal)Supports input voltage of 100–120V for a max output of 800W, 200–240V for a max output of 1200W. PSU redundancy is not supported when used in 100–120V. - Hot-swappable, 5 fans with redundancy - Frequency: 50 to 60 Hz (AC) - Efficiency: 90% or greater (20 to 100% load) - RoHS compliance: Yes - Port-side intake or port-side exhaust options - Typical power: 296W (AC) - Maximum power: 700W (AC) |
Environmental |
- Physical (H x W x D): 1.7 x 17.3 x 22.9 in. (4.4 x 43.9 x 58.1 cm)
- Weight: 25.1lb (11.4kg) with power supplies and fans, 19 lb (8.6kg) without power supplies and fans
- Operating temperature: 32 to 104°F (0 to 40°C)
- Nonoperating (storage) temperature: –40 to 158°F
(–40 to 70°C) This is correct - Humidity: 5 to 85% (noncondensing)
- Altitude: 0 to 13,123 ft (0 to 4000m)
- RoHS compliance: Yes
|
Acoustics |
- Fan speed at 50%: 76.4 dBA
- Fan speed at 70%: 83.3 dBA
- Fan speed at 100%: 92.1 dBA
|
MTBF | - 363,500 hours |
Performance and Scalability | |
Maximum number of IPv4 Longest Prefix Match (LPM) routes |
- Default: 7000
- LPM heavy : 262,000
|
Maximum number of IPv4 host entries |
- Default: 96,000
- LPM heavy : 262,000
|
Maximum number of MAC address entries | 92,000 |
Number of multicast routes |
- Default: 8000
- LPM heavy: 32,768
|
Number of Interior Gateway Management Protocol (IGMP) snooping groups | 8000 |
Number of Access Control List (ACL) entries |
- Per slice of the forwarding engine:
- 4000 ingress
- 2000 egress
- Maximum: 16,000 ingress
- 8000 egress
- Shipping: 14,328 ingress
- 7160 egress
|
Maximum number of VLANs | 3967 |
Maximum number of Virtual Routing and Forwarding (VRF) instances | 1000 |
Maximum number of links in a port channel | 32 |
Maximum number of Equal-Cost Multipath (ECMP) paths | 64 |
Maximum number of ECMP groups | 1024 |
Maximum number of port channels | 64 |
Number of active SPAN sessions | 4 |
Maximum number of Rapid Per-VLAN Spanning Tree (RPVST) instances | 3967 |
Maximum number of Hot-Standby Router Protocol (HSRP) groups | 490 |
Maximum number of Multiple Spanning Tree (MST) instances | 64 |
Maximum number of VTEPs | 256 |
Maximum number of static Network Address Translation (NAT) entries | 1023 |
Maximum number of dynamic NAT entries | 1023 |
Maximum number of static twice NAT entries | 768 |
Maximum number of dynamic twice NAT entries | 1023 |
Number of Queues | 8 |
Regulatory Standards Compliance | |
Safety |
- UL 60950-1 Second Edition
- CAN/CSA-C22.2 No. 60950-1 Second Edition
- EN 60950-1 Second Edition
- IEC 60950-1 Second Edition
- AS/NZS 60950-1
- GB4943
|
EMC: Emissions |
- 47CFR Part 15 (CFR 47) Class A
- AS/NZS CISPR22 Class A
- CISPR22 Class A
- EN55022 Class A
- ICES003 Class A
- VCCI Class A
- EN61000-3-2
- EN61000-3-3
- KN22 Class A
- CNS13438 Class A
|
EMC: Immunity |
- EN55024
- CISPR24
- EN300386
- KN 61000-4 series
|
RoHS | - The product is RoHS-6 compliant with exceptions for leaded-Ball Grid-Array (BGA) balls and lead press-fit connectors |
NXA-PAC-1100W-PE2 | Cisco Nexus 1100W AC PS, port-side exhaust |
NXA-PAC-1100W-PI2 | Cisco Nexus 1100W AC PS, port-side intake |
NXA-PAC-1200W-PE | Cisco Nexus 1200W AC PS, port-side exhaust |
NXA-PAC-1200W-PI | Cisco Nexus 1200W AC PS, port-side intake |
N9K-PUV-1200W | Cisco Nexus 1200W, 200-277AC,240-380DC, dual airflow PSU |
NXA-PDC-930W-PE | Cisco Nexus 930W -48V DC PS, port-side exhaust |
NXA-PDC-930W-PI | Cisco Nexus 930W -48V DC PS, port-side intake |
NXA-PHV-1100W-PE | Cisco Nexus 1100W Platinum HV-AC-DC PS, port-side exhaust |
NXA-PHV-1100W-PI | Cisco Nexus 1100W Platinum HV-AC-DC PS, port-side intake |
NXA-PDC-1100W-PE | Cisco Nexus 1100W Platinum DC PS, port-side exhaust |
NXA-PDC-1100W-PI | Cisco Nexus 1100W Platinum DC PS, port-side intake |
NXA-FAN-160CFM-PI | Cisco Nexus Fan, 160CFM, port-side intake airflow |
NXA-FAN-160CFM-PE | Cisco Nexus Fan, 160CFM, port-side exhaust airflow |
NXA-FAN-35CFM-PI | Cisco Nexus Fan, 35CFM, port-side intake airflow |
NXA-FAN-35CFM-PE | Cisco Nexus Fan, 35CFM, port-side exhaust airflow |
List Price:$220
List Price:$200
List Price: Updating...
List Price: Updating...
Bạn đang cần tư vấn về sản phẩm: #N9K-C9332C ?
Đối với switch Cisco Nexus N9K-C9332C, anh cần lựa chọn OS là ACI hoặc NX-OS khi đặt hàng anh nhé.
Báo giá Thiết bị chuyển mạch Cisco Nexus N9K-C9332C đã được gửi vào mail nhé bạn
Datasheet, báo giá thiết bị chuyển mạch Switch Cisco Nexus N9K-C9332C đã được gửi vào mail, bạn vui lòng kiểm tra để biết thông tin.
Thiết bị chuyển mạch Cisco Nexus N9K-C9332C có 32p 40/100G QSFP28 và 2p 1/10G SFP nhé bạn
Thiết bị chuyển mạch Cisco Nexus N9K-C9332C có 2 khe cắm nguồn ạ.
Báo giá thiết bị chuyển mạch Switch Cisco Nexus N9K-C9332C đã được gửi vào mail, bạn vui lòng kiểm tra để biết thông tin.
Thiết bị chuyển mạch Cisco Nexus N9K-C9332C khi mua mới đã bao gồm 2 nguồn nhé bạn
Thiết bị chuyển mạch Cisco Nexus N9K-C9332C bảo hành 12 tháng nhé bạn
Chào anh,
8 cổng có màu xanh ở bên phải của switch là các cổng có hỗ trợ tính năng Media Access Control Security (MACsec). MACsec là một công nghệ bảo mật cho phép mã hóa lưu lượng ở lớp vật lý và cung cấp kết nối an toàn tới máy chủ an toàn, leaf, hoặc giữa leaf và spine.
Bên mình có bán luôn module quang dùng cho mã này không ạ?
Chào anh!
CNTTShop bán module quang cho Switch Nexus N9K-C9332C, anh liên hệ tới hotline 0906 051 599 hoặc để lại thông tin đê được tư vấn và báo giá tốt nhất.
Thông tin đến anh!
