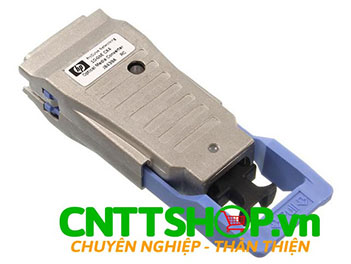

Module quang HP J8439A X130 CX4 10G 300m Optical Media Converter
| HPE Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|
HP J8439A là converter quang để chuyển đổi kết nối từ 10-GbE CX4 based copper port sang kết nối quang sử dụng đầu kết nối MTP/MPO multi-mode 12 fiber sử dụng cáp MTP/MPO.
Thông số kỹ thuật của Converter HP J8439A
|
HP X130 CX4 Optical Media Converter (J8439A)
An optical media converter that connects to CX4 ports, providing 10-Gigabit connectivity up to 300 m on multimode fiber.
|
Dimensions |
2.83(d) x 0.98(w) x 0.59(h) in. (7.19 x 2.49 x 1.5 cm) |
| Weight |
0.06 lb. (0.03 kg) |
| Cabling |
Maximum distance:
- 62.5 µm multimode cable @ 150 MHz*km = 1-50 meters
- 50 µm multimode cable @ 500 MHz*km = 1-100 meters
- 50 µm multimode cable @ 2000 MHz*km = 1-300 meters
Duplex: full |
| Notes |
The CX4 Media Converter connects directly to the CX4 port, and a 12-strand multimode ribbon cable is used between CX4 Media Converters.
The 12-strand multimode ribbon cable can have either 62.5 or 50 micron core diameters, terminated by standard Multiple Terminations Push-pull Latch (MTP) connectors in a crossover configuration. The ribbon cables are known as Multi-fiber Push (MPO).
Users should specify a "crossover" (often called "key up/key up") configuration for the ribbon cable. Also, specify female-female cables to connect to HP 10-GbE CX4 Media Converters.
For a suggested vendor of MPO ribbon cables, please see the "Cabling" answers on the "HP 10-GbE Transceivers
|
| Services |
Refer to the HP website at www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.
|
HP J8439A sử dụng cho các dòng switch sau của HP
- HP X130 CX4 Optical Media Converter
- Aruba 5400 zl Switch Series
- HP ProCurve Switch 2900 Series
- HP ProCurve Switch 3400cl Series
- HP 4200 vl Switch Series
- HP ProCurve Switch 5300xl Series
- HP E6400 cl Series
- ProCurve Switch 8100fl Series
- HP 2910 al Switch Series
