| Datasheet CS-KITPRO-PTZ4K-K9 |
| Specifications |

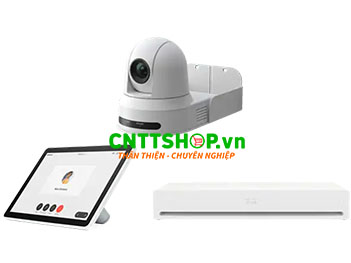

Webex Room Kit Plus PTZ 4K
integrator bundle |
Webex Codec Pro
Webex PTZ 4K Camera
Webex Room Navigator |
| Optional hardware components |
Cisco Table Microphone (with Euroblock plug), Cisco Ceiling Microphone, wall mount for Codec Pro, rack mount for Codec Pro, various cables |
| Bandwidth |
Up to 6 Mbps point to point |
Minimum bandwidth for
resolution and frame rate |
720p30 from 768 kbps
720p60 from 1152 kbps
1080p30 from 1472 kbps
1080p60 from 2560 kbps |
| Firewall traversal |
Cisco Expressway ™ technology
H.460.18, H.460.19 firewall traversal |
| Video standards |
Cisco Expressway ™ technology H.460.18, H.460.19 firewall traversal |
| Video standards |
H.264, H.265, H.263 for TANDBERG ® MXP interoperability only (check the admin guide) |
| Video inputs |
2 HDMI inputs support formats up to a maximum 1080p60
3 HDMI inputs support formats up to a maximum UHD (3840 x 2160) @ 30 fps including HD1080p60
One 3G-SDI/HD-SDI input supports formats up to a maximum 1080p60
Extended Display Identification Data (EDID)
Consumer Electronics Control (CEC) 2.0 |
| Video outputs |
2 HDMI outputs support formats up to 3840 x 2160@60 fps (4Kp60)
1 HDMI output supports formats up to 3840 x 2160@30 fps (4Kp30)
CEC 2.0 |
| Encode and decode |
Video stream: Full HD 1080p60
Content stream: 4K 2160p15 |
| Audio standards |
G.711, G.722, G.722.1, G.729AB, 64 kbps and 128 kbps MPEG4 AAC-LD mono and stereo, OPUS |
| Audio features |
High-quality 20-kHz audio
8 separate acoustic echo cancellers
8-port audio mixer
8 assignable equalizers
Automatic Gain Control (AGC)
Automatic noise reduction
Active lip synchronization |
| Audio inputs |
8 microphones, 48V phantom powered, Euroblock connector, each with separate echo cancellers and noise reduction; all microphones can be set for balanced line level
3 HDMI, digital: stereo PC/DVD input |
| Audio outputs |
6 balanced line level outputs, Euroblock connector
3 HDMI outputs
HDMI input #1 supports Audio Return Channel (ARC) audio output to Quad Camera
1 line out for subwoofer (Quad Camera) |
| PresenterTrack (PTZ 4K Camera) |
AI-powered face and upper body detection capability
Camera automatically follows the active presenter within a defined zone and helps ensure an optimized view |
| Dual stream |
H.239 (H.323) dual stream
BFCP Session Initiation Protocol (SIP) dual stream
Supports resolutions up to 3840 x 2160p15 fps and 1080p60 |
| Wireless sharing |
Webex clients (up to 3840 x 2160p5)
Cisco Intelligent Proximity client (up to 1920 x 1080p5) |
| Protocols |
H.323
SIP
Webex |
| NNetwork interfaces Codec Pro |
1 Ethernet (RJ-45) 10/100/1000 for LAN
2 Ethernet (RJ-45) 10/100/1000 for direct pairing with camera (camera control)
2 Ethernet (RJ-45) 10/100/1000 with PoE, 1 dedicated for direct pairing with Touch 10
Wi-Fi 802.11a/b/g/n/ac 2.4 GHz and 5 GHz for LAN
2x2 multiple input and multiple output (MIMO) |
| Other interfaces |
2x USB A port, USB-B, uUSB, factory reset pinhole |
| Power supply |
100 to 240 VAC, 50/60 Hz, 12V DC input
Standby 6W, average 20W, peak 70W |
| Operating temperature and humidity |
0° to 40°C (32° to 104°F) ambient temperature
10% to 90% Relative Humidity (RH) |
| Storage and transport temperature |
-20° to 60°C (-4° to 140°F) at RH 10% to 90% (noncondensing) |
| Dimensions |
| Codec Pro |
Width: 17.1 in. (43.6 cm)
Height: 2.6 in. (6.6 cm)
Depth: 9.1 in. (23.1 cm)
Weight: 7.3 lbs (3.3 kg) |
| PTZ 4K Camera |
Width: 6.3 in. (15.8 cm)
Height (at max tilt): 7.0 in. (17.7 cm)
Depth: 8.0 in. (20.0 cm)
Weight: 3.75 lbs (1.7 kg) |
