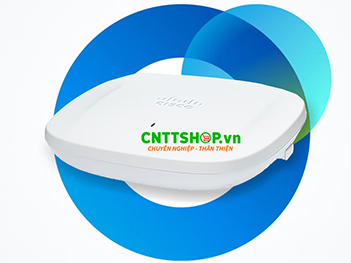

Cisco CW9162I-ROW là điểm truy cập không dây công nghệ Wifi 6E hỗ trợ 3 băng tần 2,4Ghz/ 5Ghz/ 6Ghz 2x2 MU-MIMO, tốc độ tổng hợp 3,9Gbps hoàn hảo đáp ứng mật độ truy cập vừa và nhỏ. Được thiết kế để tương thích với các thiết bị hỗ trợ băng tần 6Ghz, nhưng cũng đáp ứng thiết bị có các chuẩn wifi thấp hơn.
Wifi Cisco CW9162I-ROW với ba đài phát 2x2 và cung cấp nhiều tính năng tiên tiến WPA3, OFDMA, MU-MIMO, điều chế tín hiệu 1024-QAM, lọc nhiễu CleanAir Pro ..vv cung cấp băng thông lớn và tốc độ truy cập nhanh. Là giải pháp lý tưởng sử dụng cho môi trường có các ứng dụng cần băng thông cao, độ trễ thấp như Livestream, Video Call, hội nghị trực tuyến, video 4k hoặc 8k ..vv
Hãy cùng xem bảng thông số kỹ thuật sau để biết thêm các thông tin về Cisco CW9162I-ROW.
Thông số kỹ thuật
| Product specifications | |
| Part numbers | CW9162I-ROW (Rest Of World) |
| Software | Cisco IOS XE Software Release 17.9.2/17.10.1 or later |
| Supported wireless controllers | Cisco Catalyst 9800 Series Wireless Controllers (physical or virtual) |
| 802.11n version 2.0 (and related) capabilities | ● 2x2 MIMO with two spatial streams ● Maximal Ratio Combining (MRC) ● 802.11n and 802.11a/g ● 20- and 40-MHz channels ● PHY data rates up to 444.4 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz) ● Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive) ● 802.11 Dynamic Frequency Selection (DFS) ● Cyclic Shift Diversity (CSD) support |
| 802.11ac | ● 2x2 downlink MU-MIMO with two spatial streams ● MRC ● 802.11ac beamforming ● 20-, 40-, and 80-MHz channels ● PHY data rates up to 866.7 Mbps (2x2 80 MHz on 5 GHz) ● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) ● 802.11 DFS ● CSD support ● Wi-Fi Protected Access (WPA) 3 support |
| 802.11ax | ● 2x2 uplink/downlink MU-MIMO with two spatial streams (6 GHz) ● 2x2 downlink MU-MIMO with two spatial streams (2.4 GHz and 5 GHz) ● Uplink/downlink OFDMA ● TWT ● BSS coloring ● MRC ● 802.11ax beamforming ● 20-, 40-, 80-, and 160-MHz channels (6 GHz) ● 20-, 40-, and 80-MHz channels (5 GHz) ● 20-MHz channels (2.4 GHz) ● PHY data rates up to 3.9 Gbps (2x2 160 MHz on 6 GHz, 2x2 80 MHz on 5 GHz, and 2x2 20 MHz on 2.4 GHz) ● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) ● 802.11 DFS ● CSD support ● WPA3 support |
| Integrated antenna | ● 2.4 GHz: Peak gain 4 dBi, internal antenna, omnidirectional in azimuth ● 5 GHz: Peak gain 5 dBi, internal antenna, omnidirectional in azimuth ● 6 GHz: Peak gain 5 dBi, internal antenna, omnidirectional in azimuth |
| Interfaces | ● 1x 100M/1000M/2.5G Multigigabit Ethernet (RJ-45) port ● Management console port (RJ-45) ● USB 2.0 at 4.5W |
| Indicators | ● Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors |
| Dimensions (W x L x H) | ● Access point (without mounting brackets): ◦ 7.8 x 7.8 x 1.7 in. (200 x 200 x 44.45 mm) |
| Weight | ● 2.05 lb. (0.93 kg) |
| Input power requirements | ● 802.3bt, Cisco Universal PoE (Cisco UPOE), 802.3at Power over Ethernet Plus (PoE+) ● Cisco power injectors: AIR-PWRINJ7=, AIR-PWRINJ6=, MA-INJ-6 ● 802.3af PoE (for 802.3af, see the matrix below for radio configuration) ● DC power input (12V/ MA-PWR-30W) |
| Environmental | ● Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) ● Nonoperating (storage) altitude test: 25°C (77°F) at 15,000 ft (4600 m) ● Operating temperature: 32° to 122°F (0° to 50°C) ● Operating humidity: 10% to 90% (noncondensing) ● Operating altitude test: 40°C (104°F) at 9843 ft (3000 m) |
| System memory | ● 2048 MB DRAM ● 1024 MB flash |
| Available transmit power settings |
2.4 GHz: ● 20 dBm (100 mW) 5 GHz: ● 20 dBm (100 mW) 6 GHz: ● 20 dBm (100 mW) |
| Compliance standards |
● Safety: ◦ EN 60950-1 / EN 62368-1 Ed.3 ◦ UL 60950-1 / UL62368-1 3rd ◦ CAN/CSA-C22.2 No. 60950-1 / CAN/CSA-C22.2 No. 62368-1 3rd ◦ AS/NZS60950.1 / AS/NZS62368.1 Ed.3 ◦ UL 2043 ◦ Class III equipment ● Emissions: ◦ EN 55032:2015/A11:2020 ◦ EN IEC 61000-3-2:2019/A1:2021 ◦ EN61000-3-3:2013+A1:2019 ◦ AS/NZS CISPR32: 2015+AMD1:2020 ◦ 47 CFR FCC Part 15B ◦ ICES-003 (Issue 7, Class B) ◦ VCCI-CISPR 32:2016 ◦ CNS 13438:2006 (95) ◦ KS C 9832:2019 ● Immunity: ◦ KS C 9835:2019 ● Emissions and immunity: ◦ EN 301 489-17 V3.2.4 (2020-09) ◦ QCVN 112:2017/BTTTT ◦ KS X 3124:2020 ◦ KS X 3126:2020 ◦ EN 61000-6-1: 2019 ● Radio: ◦ EN 301 893 (v2.1.1) ◦ EN 303 687 (v0.0.14, draft) ◦ AS/NZS 4268 (rev. 2017) ◦ 47 CFR FCC Part 15C, 15.247, 15.407 ◦ RSP-100 ◦ RSS-GEN ◦ RSS-247 ◦ LP002 ◦ Japan Std. 66, and Std. 71 ● RF safety: ◦ EN 62311:2020 ◦ AS/NZS 2772.2 (rev. 2016) ◦ 47 CFR Part 2.1091 ◦ RSS-102 ◦ IEEE standards: ◦ IEEE 802.3 ◦ IEEE 802.3ab ◦ IEEE 802.3af/at/bt ◦ IEEE 802.11a/b/g/n/ac/ax ◦ IEEE 802.11h, 802.11d ● Security: ◦ WPA2-Enterprise with 802.1X ◦ WPA3-Personal, WPA3-Enterprise ◦ WPA3-Enhanced Open (OWE) ◦ Advanced Encryption Standard (AES) ● Extensible Authentication Protocol (EAP) types: ◦ EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol (MSCHAP) v2 ◦ Protected EAP (PEAP) v0 or EAP-MSCHAP v2 ◦ EAP-Flexible Authentication via Secure Tunneling (EAP-FAST) ◦ PEAP v1 or EAP-Generic Token Card (GTC) ◦ EAP-Subscriber Identity Module (SIM) |
