| Product specifications |
| Part numbers |

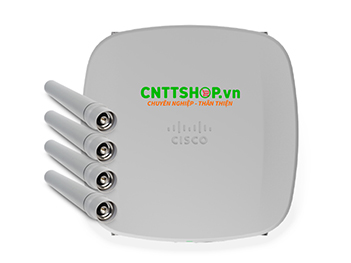

CW9163E-MR (Được quản lý trên Cloud Meraki). |
| Software |
Cisco IOS ® XE Software Release 17.13.1 or later |
| Supported wireless controllers |
Cisco Catalyst 9800 Series Wireless Controllers (physical or virtual) |
| 802.11n version 2.0 (and related) capabilities |
● 2x2 MIMO with two spatial streams
● Maximal Ratio Combining (MRC)
● 802.11n and 802.11a/g
● 20- and 40-MHz channels
● PHY data rates up to 750 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz)
● Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive)
● 802.11 Dynamic Frequency Selection (DFS)
● Cyclic Shift Diversity (CSD) support |
| 802.11ac |
● 2x2 MIMO with two spatial streams
● MRC
● 802.11ac beamforming
● 20-, 40-, 80-, channels
● PHY data rates up to 867Mbps (2x2 80MHz on 5 GHz)
● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
● 802.11 DFS
● CSD support
● Wi-Fi Protected Access (WPA) 3 support |
| 802.11ax |
● 1024-QAM
● Uplink/downlink OFDMA
● TWT
● BSS coloring
● MRC
● 802.11ax beamforming
● 20-, 40-, 80-, and 160-MHz channels (6 GHz)
● 20-, 40-, 80-, channels (5 GHz)
● 20-MHz channels (2.4 GHz)
● PHY data rates up to 3.9 Gbps (2x2 160 MHz on 6 GHz, 2x2 80 MHz on 5 GHz, and 2x2 20 MHz on 2.4 GHz)
● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
● 802.11 DFS
● CSD support
● WPA3 support |
| Antennas |
CW-ANT-O1-NS-00 Omnidirectional Dipole Self-Identifying Antenna with N-Type Connector
● 2.4 GHz: Peak gain 4 dBi, omnidirectional in azimuth
● 5 GHz: Peak gain 8 dBi, omnidirectional in azimuth
● 6 GHz: Peak gain 8 dBi, omnidirectional in azimuth
|
| Interfaces |
● 1x 100M/1000M/2.5G Multigigabit Ethernet (RJ-45)
● Management console port (RJ-45)
● 4x N-Type Wi-Fi antenna connectors
● RP-SMA active GPS/GNSS antenna connector |
| Indicators |
Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors |
| Dimensions (W x L x H) |
● Access point (without mounting brackets): 9.64 x 9.64 x 2.5 in. (245 x 245 x 63.5 mm) |
| Weight |
3.3 lb (1.5 kg) |
| Input power requirements |
802.3at Power over Ethernet Plus (PoE+), 802.3af Power over Ethernet (PoE)
Cisco power injectors: AIR-PWRINJ7=, AIR-PWRINJ6=, MA-INJ-6
|
| Environmental |
● Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)
● Nonoperating (storage) altitude test: 25°C (77°F) at 15,000 ft (4600 m)
● Operating temperature: -40° to 149°F (-40° to 65°C) without solar derating
● Operating temperature: -40° to 131°F (-40° to 55°C) with solar derating
● Operating humidity: 5% to 95% (noncondensing)
● Operating altitude test: 40°C (104°F) at 9843 ft (3000 m)
● Ingress Protection: IP67 |
| System memory |
● 2048 MB DRAM
● 1024 MB flash |
| Available transmit power settings |
| 2.4 GHz |
● 23 dBm (200 mW)
● -4 dBm (0.39 mW) |
| 5 GHz |
● 23 dBm (200 mW)
● -4 dBm (0.39 mW) |
| 6 GHz |
● 23 dBm (200 mW)
● -4 dBm (0.39 mW) |
| Compliance standards |
| Safety: |
◦ IEC 60950-1 / IEC 60950-22
◦ IEC 62368-1
◦ EN 60950-1 / EN60950-22
◦ EN62368-1
◦ CAN/CSA-C22.2 No. 60950-1 / 60950-22
◦ CAN/CSA-C22.2 No. 62368-1
◦ AS/NZS60950.1 / AS/NZS62368.1
|
| ● Radio: |
◦ EN 300 328 (v2.2.2 2019-7)
◦ EN 301 893 (v2.1.1)
◦ AS/NZS 4268 (rev. 2017)
◦ 47 CFR FCC Part 15C, 15.247, 15.407
◦ RSP-100
◦ RSS-GEN
◦ RSS-247
◦ LP002 (rev 2020)
◦ Japan Std. 33a, Std 66 and Std 71
◦ QCVN (54:2020/BTTTT)
◦ QCVN (65:2013/BTTTT)
|
| ● Emissions: |
◦ CISPR 32 (rev. 2015)
◦ EN 55032:2015/A11:2020
◦ EN 61000-3-2:2019
◦ EN61000-3-3:2013+A1:2019
◦ KS C 9610-3-2:2020
◦ KS C 9610-3-3:2020
◦ AS/NZS CISPR32 Class B (rev. 2015)
◦ 47 CFR FCC Part 15B
◦ ICES-003 (Issue 7, Class B)
◦ VCCI-CISPR 32:2016
◦ CNS 13438
◦ KS C 9832:2019
◦ QCVN 118:2019/BTTTT
|
| ● Immunity: |
◦ CISPR 24 (rev 2010)
◦ EN55024 + AMD 1 (rev. 2010)
◦ EN55035: 2017
◦ QCVN (TCVN 7317:2003)
◦ KS C 9835:2019
|
| ● Emissions and immunity: |
◦ EN 301 489-1 V2.2.3 (2019-11)
◦ EN 301 489-17 V3.2.4 (2020-09)
◦ QCVN 18:2014/BTTTT
◦ QCVN 112:2017/BTTTT
◦ KS X 3124:2020
◦ KS X 3126:2020
|
| ● RF safety: |
◦ EN 50385:2017
◦ ARPANSA
◦ AS/NZS 2772.2 (rev. 2016)
◦ 47 CFR Part 1.1310 and Part 2.1091
◦ RSS-102 (2015)
|
| ● IEEE standards: |
◦ IEEE 802.3
◦ IEEE 802.3ab
◦ IEEE 802.3af/at
◦ IEEE 802.11a/b/g/n/ac/ax
◦ IEEE 802.11h, 802.11d
◦ IEEE 802.15.1/802.15.4
|
| ● Security |
◦ WPA2-Personal (802.11i)
◦ WPA2-Enterprise with 802.1X
◦ WPA3-Personal, WPA3-Enterprise
◦ WPA3-Enhanced Open (OWE)
◦ Advanced Encryption Standard (AES)
|
| ● Extensible Authentication Protocol (EAP) types: |
◦ EAP-Transport Layer Security (TLS)
◦ EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol (MSCHAP) v2
◦ Protected EAP (PEAP) v0 or EAP-MSCHAP v2
◦ EAP-Flexible Authentication via Secure Tunneling (EAP-FAST)
◦ PEAP v1 or EAP-Generic Token Card (GTC)
◦ EAP-Subscriber Identity Module (SIM)
|
| Certifications |
● Wi-Fi Alliance: Wi-Fi 6 (R2), Wi-Fi 6E, WPA3-R3, WPA3-Suite B, Enhanced Open Security
● Bluetooth SIG: Bluetooth Low Energy (BLE) |
