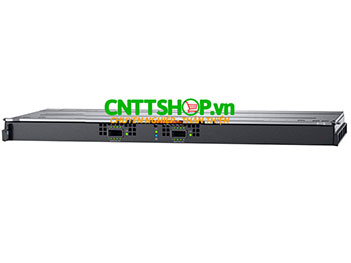

MX7116n Dell EMC Networking MX Fabric Expander Module
DELL Part Number |
:
|
List Price |
: $
|
Giá bán |
:
|
Bảo hành |
:
|
Made In |
:
|
Stock |
:
|
Thiết bị chuyển mạch Dell EMC Networking MX7116n Low latency 25 Gigabit Ethernet Fabric Expansion Module for the PowerEdge MX7000 platform

Thông số kỹ thuật Dell EMC MX7116n
Product |
Description |
Physical |
- 25GbE Fabric Expander in PowerEdge MX Fabric A/B I/O sled form factor
- Indicators:
- Power/Health LED
- ID LED
- Supported Optic LED
- Compute sled link/activity LEDs
- Size: 1.18”h x 17.11”w x 10.94”d
- Weight: 6.83lbs (3.1kg)
- Max. power consumption: 21.9 Watts
- Typ. power consumption: 16.0 Watts
- Max. operating specifications:
- Standard Operating Temperature 10°C to 35°C (50°F to 95°F)
- Operating Relative Humidity 5% to 85%, noncondensing
- Max. non-operating specifications:
- Storage temperature: -40°C to 65°C (-40°F to 149°F)
- Storage humidity: 5 to 95% (RH), noncondensing
- Expanded Operating Temperature, Continuous
- Operation: 5°C to 40°C at 5% to 85% RH with 29°C dew point
- Note: Outside the standard operating temperature, the system can operate continuously in temperatures as low as 5°C and as high as 40C.
- For temperature between 35°C to 40°C, de-rate maximum allowable temperature by 1°C per 175m above 950m (1°F per 319 ft) Fresh Air Compliant to 45°C
|
Redundancy |
Redundant Power and Cooling provided by Dell EMC PowerEdge MX7000 Chassis |
Performance |
|
Cables |
- QSFP28-DD to QSFP28-DD, active optical, passive DAC
|
Bạn đang cần tư vấn về sản phẩm: #MX7116n ?
Công suất tối đa của module chuyển mạch Dell EMC Networking MX7116n là 21.9W nhé bạn.
