| Product |
Description |
| Total Fibre Channel Ports |
- Up to 16 internal server facing and up to 16 external fabric facing ports (8-port increments through dynamic Ports on Demand (POD) license.
- The 16 internal server facing ports operate at either 16 Gbps or 32 Gbps speed depending on the minimezzanine adapter, and do not require any optical transceivers.
- The 16 external fabric facing ports are available in two different port types:
- 8 external SFP+ ports operate at 8Gbps, 16Gbps, or 32Gbps speed
- 2 external QSFP+ ports offer 4 ports each operate at 16Gbps or 32Gbps speed
|
| Supported Optics |
- Transceiver, 16Gbps FC, SWL SFP
- Transceiver, 16Gbps FC, LWL SFP
- Transceiver, 32Gbps FC, SWL SFP
- Transceiver, 32Gbps FC, LWL SFP
- Transceiver, 16Gbps FC, SW4 QSFP (supports 4x1 Breakout)
- Transceiver, 32Gbps FC, SW4 QSFP (supports 4x1 Breakout)
|
| ANSI Fibre Channel protocol |
- Fibre Channel Physical and Signaling Interface standard (FC-PH)
|
| Modes of operation |
- Fibre Channel Class 2 and Class 3
|
| Fabric initialization |
- Complies with FC-SW-3 Rev. 6.6
|
| Scalability |
- Full-fabric architecture with a maximum of 239 switches
|
| Certified maximum |
6,000 active nodes, 56 switches, 19 hops in a Fabric OS® fabrics |
| ISL trunking |
Frame-based trunking with up to eight ports per ISL trunk for an up to 256 Gbps per ISL; supporting trunk Exchange-based load balancing across ISLs with DPS included in Fabric OS |
| Max. Switching bandwidth |
1024 Gbps (32 * 32 Gbps) in Full Fabric Switch mode |
| Max. Throughput |
512 Gbps (16 * 32 Gbps) in Access Gateway mode (default mode) |
| Maximum port-to-port latency |
Latency for locally switched ports is ≤ 900 ns (including FEC) |
| Maximum frame size |
2,112-byte payload |
| Frame buffers |
2,000 dynamically allocated |
| Classes of services |
Class 2, Class 3, Class F (inter-switch frames) |
| Port types |
F_Port, E_Port, M_Port, D_Port (ClearLink Diagnostic Port), N_Port |
Switch
.png){kind=icon}
.png){kind=logo}
.jpg)
.png){kind=logo}

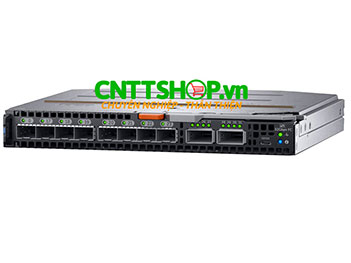

Bạn đang cần tư vấn về sản phẩm: MXG610s ?
