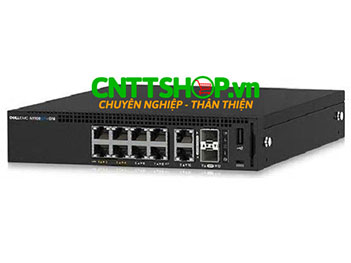

Thiết bị chuyển mạch Switch Dell EMC PowerSwitch N1108EP-ON with 8x 10/100/1000Mbps half/full duplex ports, 2x GbE RJ45 and 2x GbE SFP interfaces, 8xPoE/ PoE+, 135W PoE power budget RJ45, 1 RU half-width form factor
Cam Kết Bán Hàng
✓ Đầy Đủ CO/CQ
✓ Hỗ Trợ Đại Lý Và Dự Án
✓ Giao Hàng Trên Toàn Quốc
✓ Sản Phẩm Chính Hãng™ 100%
✓ Cam Kết Giá Rẻ Nhất Thị Trường
✓ Bảo Hành, Đổi Trả Nhanh Chóng
✓ Hỗ Trợ Kỹ Thuật Chuyên Nghiệp, Nhiệt Tình
CNTTShop.vn - Trên 10 năm Uy tín cung cấp Thiết bị mạng & Dịch vụ Giải pháp mạng trên toàn quốc.
NTT03 Thống Nhất Complex, 82 Nguyễn Tuân, Thanh Xuân, Hà Nội. số 31B, đường 1, phường An Phú, Quận 2 (Thủ Đức), TP HCM.DELL Part Number |
:
|
List Price |
: $
|
Giá bán |
:
|
Bảo hành |
:
|
Made In |
:
|
Stock |
:
|
Tech Specs & Customization |
|
Chassis |
|
Port Attributes |
Traffic-Port Features: Auto-negotiation for speed and flow control Auto MDI/MDIX Port mirroring Flow-based port mirroring Broadcast storm control Energy Efficient Ethernet per port settings Port Profile support including Admin profiles Management & Configuration-Port Attributes: 1 USB (Type A) port for configuration |
Switch Attributes |
Line-rate Layer 2 switching Dual firmware images on-board Temperature sensors for environmental monitoring Cable diagnostics Switch auditing support |
CPU Memory | 1GB |
Flash Memory | 1GB |
Switch Fabric Capacity (full duplex) | 24Gbps |
Forwarding Rate | 18Mpps |
Packet Buffer Memory | 1.5MB |
Approximate Weight in pounds | 4 lbs |
Approximate Weight in kilograms | 1.81 Kg |
Power Supply (Watts) | 151W AC (24W switch + 137W PoE) |
Max Thermal Output (BTU/hr) | 292.62 |
Dimensions & Weight |
|
Dimensions in inches (H x W x D) | 1.75 in x 8.5 in x 10 in |
Dimensions in millimeters (H x W x D) | 44.45 mm x 215.9 mm x 254 mm |
Environmental Operating Conditions |
|
Operating Temperature in Celsius | 0 to 50 C |
Operating Temperature in Fahrenheit | 32 degrees to 122 |
Storage Temperature in Celsius | -40° to 65° C |
Storage Temperature in Fahrenheit | -40° to 149° F |
Operating Relative Humidity | 95% |
Storage Relative Humidity | 85% |
Power Supply Efficiency | 80% or better in all operating modes |
Interface | |
1GbE Port Attributes Multi-speed | 8x 10/100/1000Mbps half/full duplex ports |
1GbE Port Attributes Single-speed | 2x 1000Mbps half/full duplex RJ45 ports |
Integrated 1GbE SFP dedicated ports | 2 |
Power-over-Ethernet Plus (PoE/PoE+) Ports | 8 |
PoE Power Budget |
137W |
Bạn đang cần tư vấn về sản phẩm: #N1108EP-ON ?
Thiết bị chuyển mạch Dell EMC N1108EP-ON sử dụng nguồn AC, không dùng nguồn PoE nhé bạn.
