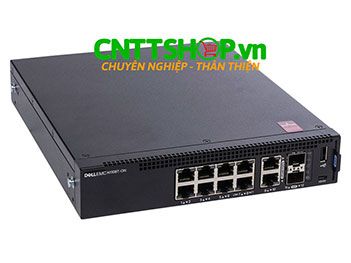

Thiết bị chuyển mạch Switch Dell EMC PowerSwitch N1108T-ON 8 Ports 10/100/1000Mbps half/full duplex RJ45 ports, 2x GbE RJ45 and 2x GbE SFP interfaces, 1 RU half-width form factor, fanless operation
DELL Part Number |
:
|
List Price |
: $
|
Giá bán |
:
|
Bảo hành |
:
|
Made In |
:
|
Stock |
:
|
Tech Specs & Customization |
|
Chassis |
|
Port Attributes |
Traffic-Port Features: Auto-negotiation for speed and flow control Auto MDI/MDIX Port mirroring Flow-based port mirroring Broadcast storm control Energy Efficient Ethernet per port settings Port Profile support including Admin profiles Management & Configuration-Port Attributes: 1 USB (Type A) port for configuration |
Switch Attributes |
Line-rate Layer 2 switching Dual firmware images on-board Temperature sensors for environmental monitoring Cable diagnostics Switch auditing support |
CPU Memory | 1GB |
Flash Memory | 1GB |
Switch Fabric Capacity (full duplex) | 24Gbps |
Forwarding Rate | 18Mpps |
Packet Buffer Memory | 1.5MB |
Approximate Weight in pounds | 3.54lbs |
Approximate Weight in kilograms | 1.61kg |
Power Supply (Watts) | 24W AC |
Max Thermal Output (BTU/hr) | 35.72 |
Power Consumption Max (Watts) | 10.47 |
Dimensions & Weight |
|
Dimensions in inches (H x W x D) | 1.75 in x 8.5 in x 10 in |
Dimensions in millimeters (H x W x D) | 44.45 mm x 215.9 mm x 254 mm |
Environmental Operating Conditions |
|
Operating Temperature in Celsius | 0° to 45° C |
Operating Temperature in Fahrenheit | 32° to 113° F |
Storage Temperature in Celsius | -40° to 65° C |
Storage Temperature in Fahrenheit | -40° to 149° F |
Operating Relative Humidity | 95% |
Storage Relative Humidity | 85% |
Power Supply Efficiency | 80% or better in all operating modes |
Interface | |
1GbE Port Attributes Multi-speed | 8x 10/100/1000Mbps half/full duplex ports |
1GbE Port Attributes Single-speed | 2x 1000Mbps half/full duplex RJ45 ports |
Integrated 1GbE SFP dedicated ports | 2 |
Bạn đang cần tư vấn về sản phẩm: #N1108T-ON ?
Tôi muốn nâng cấp phần cứng cho thiết bị N1108T-ON Dell EMC PowerSwitch 8 Ports GE, 2 Combo Uplink được không shop?
Thiết bị chuyển mạch Dell EMC PowerSwitch N1108T-ON không nâng cấp được phần cứng nhé bạn.
