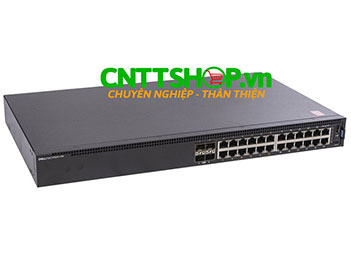

Dell EMC PowerSwitch N1124P-ON
| DELL Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|
Thông số kỹ thuật
|
Tech Specs & Customization |
|
|
Chassis |
|
|
Port Attributes |
Traffic-Port Features: Auto-negotiation for speed and flow control Auto MDI/MDIX Port mirroring Flow-based port mirroring Broadcast storm control Energy Efficient Ethernet per port settings Port Profile support including Admin profiles Management & Configuration-Port Attributes: 1 USB (Type A) port for configuration |
|
Switch Attributes |
Line-rate Layer 2 switching Dual firmware images on-board Temperature sensors for environmental monitoring Cable diagnostics Switch auditing support |
| CPU Memory | 1GB |
| Flash Memory | 1GB |
| Switch Fabric Capacity (full duplex) | 128Gbps |
| Forwarding Rate | 96Mpps |
| Packet Buffer Memory | 2MB |
| Approximate Weight in pounds | 8.33lbs |
| Approximate Weight in kilograms | 3.78kg |
| Power Supply (Watts) | 250W AC |
| Max Thermal Output (BTU/hr) | 851.66 |
|
Dimensions & Weight |
|
| Dimensions in inches (H x W x D) | 1.75 in x 17 in x 10 in |
| Dimensions in millimeters (H x W x D) | 44.45 mm x 431.8 mm x 254 mm |
|
Environmental Operating Conditions |
|
| Operating Temperature in Celsius | 0° to 45° C |
| Operating Temperature in Fahrenheit | 32° to 113° F |
| Storage Temperature in Celsius | -40° to 65° C |
| Storage Temperature in Fahrenheit | -40° to 149° F |
| Operating Relative Humidity | 95% |
| Storage Relative Humidity | 85% |
| Power Supply Efficiency | 80% or better in all operating modes |
| Interface | |
| 1GbE Port Attributes Multi-speed | 24x 10/100/1000Mbps half/full duplex ports |
| Integrated 10GbE SFP+ dedicated ports (10 Gbps) | 4 |
| Power-over-Ethernet Plus (PoE/PoE+) Ports | 12 |
|
PoE Power Budget |
190W |
Bạn đang cần tư vấn về sản phẩm: N1124P-ON ?
Thiết bị N1124P-ON Dell EMC PowerSwitch 24 Ports GE (12 PoE+ 190W), 4 SFP+ Uplink có công suất PoE bao nhiêu ạ?
Thiết bị chuyển mạch Dell EMC PowerSwitch N1124P-ON cung cấp PoE 12 cổng, tối đa 30W mỗi cổng với tổng công suất 190W nhé bạn.
