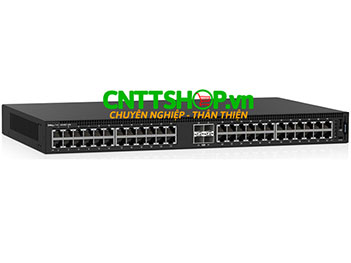

Thiết bị chuyển mạch Switch Dell EMC PowerSwitch N1148P-ON 48 Ports 10/100/1000Mbps half/full duplex ports, 4x SFP/SFP+ 1/10GbE ports, 24xPoE/PoE+ ports, 375W PoE power budget, 1 RU switch form factor
DELL Part Number |
:
|
List Price |
: $
|
Giá bán |
:
|
Bảo hành |
:
|
Made In |
:
|
Stock |
:
|
Tech Specs & Customization |
|
Chassis |
|
Port Attributes |
Traffic-Port Features: Auto-negotiation for speed and flow control Auto MDI/MDIX Port mirroring Flow-based port mirroring Broadcast storm control Energy Efficient Ethernet per port settings Port Profile support including Admin profiles Management & Configuration-Port Attributes: 1 USB (Type A) port for configuration |
Switch Attributes |
Line-rate Layer 2 switching Dual firmware images on-board Temperature sensors for environmental monitoring Cable diagnostics Switch auditing support |
Stacking Attributes |
Maximum stacking distance (meters): 3 Maximum stacking speed (full-duplex): 176Gbps 10G SFP+ ports needs to be configured for stacking 24 and 48 port T and P switches can be mixed in a stack |
CPU Memory | 1GB |
Flash Memory | 1GB |
Switch Fabric Capacity (full duplex) | 176Gbps |
Forwarding Rate | 132Mpps |
Packet Buffer Memory | 2MB |
Approximate Weight in pounds | 9.19lbs |
Approximate Weight in kilograms | 4.17kg |
Power Supply (Watts) | 500W AC |
Max Thermal Output (BTU/hr) | 1566.15 |
Dimensions & Weight |
|
Dimensions in inches (H x W x D) | 1.75 in x 17 in x 10 in |
Dimensions in millimeters (H x W x D) | 44.45 mm x 431.8 mm x 254 mm |
Environmental Operating Conditions |
|
Operating Temperature in Celsius | 0° to 45° C |
Operating Temperature in Fahrenheit | 32° to 113° F |
Storage Temperature in Celsius | -40° to 65° C |
Storage Temperature in Fahrenheit | -40° to 149° F |
Operating Relative Humidity | 95% |
Storage Relative Humidity | 85% |
Power Supply Efficiency | 80% or better in all operating modes |
Interface | |
1GbE Port Attributes Multi-speed | 48x 10/100/1000Mbps half/full duplex ports |
Integrated 10GbE SFP+ dedicated ports (10 Gbps) | 4 |
Power-over-Ethernet Plus (PoE/PoE+) Ports | 24 |
PoE Power Budget |
375W |
Bạn đang cần tư vấn về sản phẩm: #N1148P-ON ?
Cảm ơn bạn đã quan tâm sản phẩm của CNTTShop . Báo giá của Thiết bị chuyển mạch Switch Dell EMC PowerSwitch N1148P-ON đã được gửi cho bạn qua mail, bạn vui lòng check mail nhé.
Thiết bị N1148P-ON Dell EMC PowerSwitch 48 Ports GE (24 PoE+ 375W), 4x10GE Uplink có hỗ trợ stack không?
Thiết bị chuyển mạch Dell EMC PowerSwitch N1148P-ON hỗ trợ stack qua cổng mạng (chiều dài dây tối đa 3m) nhé bạn.
