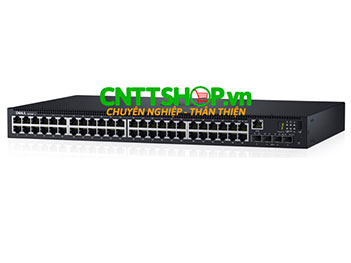

Thiết bị chuyển mạch Switch Dell EMC Power Switch N1548 Stackable Layer 3 with 48 Ports RJ45 auto-sensing, 4x SFP+ ports, 1 integrated 100W PSU
DELL Part Number |
:
|
List Price |
: $
|
Giá bán |
:
|
Bảo hành |
:
|
Made In |
:
|
Stock |
:
|
Tech Specs & Customization |
|
Chassis |
|
Stacking Attributes |
Integrated rear mini-SAS stacking ports: not available User port stacking: Y Maximum stacking distance (meters): 100 Maximum stacking speed (full-duplex): 40Gbps |
Switch Attributes |
Line-rate Layer 2 switching: standard Line-rate Layer 3 routing: standard Dual firmware images on-board: standard Temperature sensors for environmental monitoring: standard Cable diagnostics: Standard Optical transceiver (SFP/SFP+) diagnostics: standard Switch auditing support: standard UDLD: standard |
Traffic-Port Features | Auto-negotiation for speed and flow control: standard Auto MDI/MDIX: standard Port mirroring: standard Flow-based port mirroring: standard Broadcast storm control: standard Energy Efficient Ethernet per port settings: standard Port Profile support including Admin profiles: standard |
CPU Memory | 1GB |
Flash Memory | 256MB |
Switch Fabric Capacity (full duplex) | 176Gbps |
Forwarding Rate | 164Mpps |
Packet Buffer Memory | 1.5MB |
Power Supply (Watts) | 100 |
Max Thermal Output (BTU/hr) | 152.2 |
Power Consumption Max (Watts) | 44.6 |
Dimensions & Weight |
|
Dimensions in inches (H x W x D) | 1.7 x 17.3 x 10.1 |
Dimensions in millimeters (H x W x D) | 43.5 x 440.0 x 257.0 |
Approximate Weight in pounds (without modules) | 8.8 |
Approximate Weight in kilograms (without modules) | 4 |
Environmental Operating Conditions |
|
Operating Temperature in Celsius | 0° to 45° C |
Operating Temperature in Fahrenheit | 32° to 113° F |
Storage Temperature in Celsius | -40° to 65° C |
Storage Temperature in Fahrenheit | -40° to 149° F |
Operating Relative Humidity | 95% |
Storage Relative Humidity | 85% |
Power Supply Efficiency | 80% or better in all operating modes |
Interface | |
1GbE Port Attributes Multi-speed | 48x 1GbE RJ45 auto-sensing (1Gb/100Mb/10Mb) fixed ports |
Integrated 10GbE SFP+ dedicated ports (beyond standard ports) | 4 |
Bạn đang cần tư vấn về sản phẩm: #N1548 ?
CNTTShop phân phối thiết bị Cisco, Dell, HP, ... chính hãng giá tốt. Thiết bị chuyển mạch Dell EMC PowerSwitch N1548 có thể dùng chung với thiết bị chuyển mạch của các hãng khác (Cisco, HP, ...) nhé bạn.
