| Product |
Description |

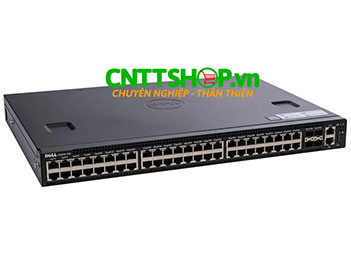

| S3048-ON |
- S3048-ON 1000BASE-T, 48 x 1000BASE-T, 4 x SFP+, 1 x AC PSU, 3 x Fans, IO I/O Panel to PSU Airflow
- S3048-ON 1000BASE-T, 48 x 1000BASE-T, 4 x SFP+, 1 x AC PSU, 3 x Fans, PSU to I/O Panel Airflow
- S3048-ON 1000BASE-T, 48 x 1000BASE-T, 4 x SFP+, 1 x AC PSU, 3 x Fans, I/O Panel to PSU Airflow, TAA
- S3048-ON 1000BASE-T, 48 x 1000BASE-T, 4 x SFP+, 1 x AC PSU, 3 x Fans, PSU to I/O Panel Airflow, TAA
|
| Performance |
| Switching capacity (full duplex) |
- 260Gbps (full-duplex) 130 Gbps (half-duplex
|
| Forwarding Capacity (Mpps) |
|
| Buffer size |
|
| Latency (microseconds) |
|
| CPU memory |
|
| Flash Memory |
|
| Ports |
| 1GBase-T |
48
|
| 1GbE SFP |
4 |
| 10 GbE SFP+ |
4 |
Chassis
|
| Optics |
- Transceiver, SFP, 100BASE-FX, 1310nm wavelength, up to 2km reach
- Transceiver, SFP, 1000BASE-T
- Transceiver, SFP, 1000BASE-SX, 850nm wavelength, up to 550m reach
- Transceiver, SFP, 1000BASE-LX, 1310nm wavelength, up to 10km reach
- Transceiver, SFP, 1000BASE-ZX, 1550nm wavelength, up to 80km reach
- Transceiver, SFP+, 10GbE, LRM, 1310nm wavelength, up to 220m reach
- Transceiver, SFP+, 10GbE, SR, 850nm wavelength, up to 300m reach
- Transceiver, SFP+, 10GbE, LR, 1310nm wavelength, up to 10km reach
- Transceiver, SFP+, 10GbE, ER, 1550nm wavelength, up to 40km reach
- Transceiver, SFP+, 10GbE, ZR, 1550nm wavelength, up to 80km reach
|
| Cables |
- Dell Networking cable, SFP+ to SFP+, 10GbE, copper twinax direct attach cable, 0.5m
- Dell Networking cable, SFP+ to SFP+, 10GbE, copper twinax direct attach cable, 1m
- Dell Networking cable, SFP+ to SFP+, 10GbE, copper twinax direct attach cable, 3m
- Dell Networking cable, SFP+ to SFP+, 10GbE, copper twinax direct attach cable, 5m
- Dell Networking cable, SFP+ to SFP+, 10GbE, copper twinax direct attach cable, 7m
- Dell Networking Cable, SFP+ to SFP+, 10GbE, Active Optical Cable, 15m
|
| Dimensions in inches (H x W x D) |
1.7126 x 17.0866 x 16.0236 |
| Dimensions in millimeters (H X W X D) |
43.5 x 434.0 x 407.0 |
| Approximate Weight in pounds (without modules) |
12.8 pounds |
| Approximate Weight in kilograms (without modules) |
5.8 kilograms |
| Max Thermal Output (BTU/hr) |
290 BTU/hr (Max, 87W, 216 BTU/hr) (Typical, 65W) |
| Power Consumption Max (Watts) |
87 W |
Environmental Operating Conditions
|
| Operating Temperature in Celsius |
0° to 45° C |
| Operating Temperature in Fahrenheit |
32° to 113° F |
| Storage Temperature in Celsius |
-40° to 65° C |
| Storage Temperature in Fahrenheit |
-40° to 149° F |
| Operating Relative Humidity |
95% |
| Storage Relative Humidity |
85% |
| Power Supply Efficiency |
80% or better in all operating modes |
Switch
.png){kind=icon}
.png){kind=logo}
.jpg)
.png){kind=logo}
Bạn đang cần tư vấn về sản phẩm: S3048-ON ?
Băng thông chuyển mạch của thiết bị chuyển mạch Dell EMC PowerSwitch S3048-ON là 260 Gbps nhé bạn.
