| Product |
Description |

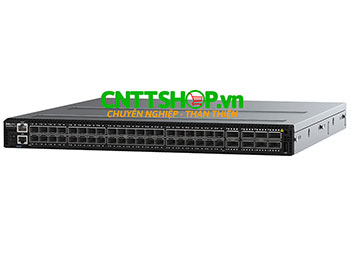

| S4248FBL-ON |
- S4248FBL, 40x 10GbE SFP+, 2x QSFP+, 6x 100GbE QSFP28, 2x AC PSU, 5x fan modules, I/O Panel to PSU Airflow
- S4248FBL, 40x 10GbE SFP+, 2x QSFP+, 6x 100GbE QSFP28, 2x AC PSU, 5x fan modules, PSU to I/O Panel Airflow
|
| Performance |
| Switching capacity (full duplex) |
|
| Forwarding Capacity (Mpps) |
|
| Buffer size |
|
| Latency (microseconds) |
|
| CPU memory |
32GB DDR3 |
| SSD |
64GB mSATA |
| Ports |
| 10GbE |
72 |
| 25GbE |
24 |
| 40GbE (QSFP+) |
8 |
| 50GbE |
12 |
| 100GbE |
6 |
| Power and cooling |
| Max. power consumption (W) |
470 (max)/180 (normal) |
| Power options |
AC or DC |
| Redundant power supplies |
2 |
| Redundant power supplies |
- S4200, AC Power Supply, IO Panel to PSU Airflow
- S4200, AC Power Supply, PSU to IO Panel Airflow
- S4248, DC Power Supply, I/O Panel to PSU Airflow
- S4248, DC Power Supply, PSU to I/O Panel Airflow
|
| Fans |
S4200 fan module, IO Panel to PSU Airflow
S4200 fan module, PSU to IO Panel Airflow
|
| Optics |
- Transceiver, 100GbE, SR4 QSFP28
- Transceiver, 100GbE, LR4 QSFP28
- Transceiver, 100GbE, LR4Lite QSFP28
- Transceiver, 100GbE, PSM4 10Km QSFP28
- Transceiver, 100GbE, CWDM4 2Km QSFP28
- Transceiver, 100GbE, PSM4 500m QSFP28
- Transceiver, 40GbE, SR4 optic QSFP+
- Transceiver, 40GbE, eSR4 optic QSFP+
- Transceiver, 40GbE, LR4 optic QSFP+
- Transceiver, 40GbE, ER4 optics QSFP+
- Transceiver, 40GbE, PSM4 10Km, QSFP+
- Transceiver, 40GbE, PSM4-LR MPO 10Km QSFP+ to LC
- Transceiver, 40GbE, LM4 / SM4 Duplex QSFP+
- Transceiver, 40GbE QSFP+ to SFP+/SFP Adapter (QSA)
- Transceiver, 10GbE, SR SFP+, short reach
- Transceiver, 10GbE, LR SFP+, long reach
- Transceiver, 10GbE, ER SFP+, extended reach
- Transceiver, 10GbE, ZR SFP+ extra extended reach
|
| Cables |
- 100GbE, 4x25GbE, QSFP28 to 4xSFP28, passive DAC
- 100GbE, QSFP28 to QSFP28, active optical
- 100GbE, QSFP28 to QSFP28, passive DAC
- 100GbE, 2x50GbE, QSFP28 to 2xQSFP28, passive DAC, breakout
- 40GbE, QSFP+ to QSFP+, active optical
- 40GbE, QSFP+ to QSFP+, passive DAC
- 40GbE, MTP to 4xLC optical breakout
- 40GbE, 4x10GbE, QSFP+ to 4xSFP+, passive DAC
|
| Features |
| Max VLANs (Configured) |
4K |
| Max MAC entries |
750K |
| Link aggregation (groups/Members) |
32 links per group, 128 groups |
| Max routes (IPv4/IPv6) |
2 Million / 400K |
| Jumbo frames (Bytes) |
9216 bytes |
| IPv4 routing |
RIP, OSPF, BGP |
| IPv6 routing |
OSPFv3 |
| Multicast routing |
In process |
Switch
.png){kind=icon}
.png){kind=logo}
Bạn đang cần tư vấn về sản phẩm: S4248FBL-ON ?
Băng thông chuyển mạch của thiết bị chuyển mạch Dell EMC PowerSwitch S4248FBL-ON là 1.6 Tbps nhé bạn.
