| Overview |

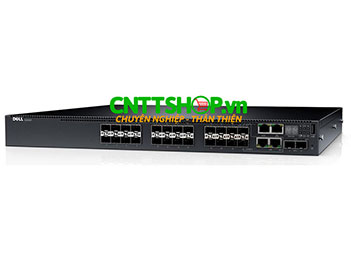

Dell EMC N3024EF-ON Switch, 24x 1GbF, 2x SFP+ 10GbE, 2x GbE,L3, Stacking,IO to PSU air,1x AC PSU |
| Performance |
| Switch capacity |
212 Gbps |
| Forwarding capacity |
158 Mpps |
| Buffer size |
4MB |
| CPU Memory |
2GB |
| Flash Memory |
1GB |
| Ports |
| 10/100/1000 Base-T |
2 |
| 1GbE (SFP) |
24 |
| 10GbE |
2 fixed SFP+ and 2 modular (auto-negotiate 1/10Gb) |
| Expansion module slots |
1 slot with 2 optional modules: 2 port SFP+, 2 port 10GBase-T |
| Power-over-Ethernet ports |
- |
|
Chassis
|
| Dimensions in inches (H x W x D) |
1.7126 x 17.0866 x 16.0236 |
| Dimensions in millimeters (H X W X D) |
43.5 x 434.0 x 407.0 |
| Approximate weight in pounds (without modules) |
13.2277 |
| Approximate weight in kilograms (without modules) |
6 |
| Power and cooling |
| Max. power consumption (watts) |
67.1 |
| Power Supply (Watts) |
200 |
| Max Thermal Output (BTU/hr) |
228.96 |
| AC power supplies |
2 hot swappable power supply bays, 1 PSU included |
| Redundant power |
Optional (internal) |
| Airflow |
I/O panel to PSU |
| Features |
| Stacking |
Stacks up to 12 using dedicated ports |
| VLANs |
4094 |
| VLAN support |
Voice VLAN, Private Edge, Protocol and MAC-based, GVRP |
| Layer 2 and 3 |
Layer 3 Advanced |
| IPv4/IPv6 routing |
IPv4/IPv6, RIP, OSPFv3, VRRP, static routing |
| Multicast support |
IGMP v1/v2/v3, IGMP Proxy, IGMP Snooping and Querier, DVMRP, PIM-DM, PIM-SM |
| Rapid Deployment |
Ready rails, deploy switch configuration files, stacking commands and firmware updates by simply inserting a USB device into the port. |
| iSCSI optimization |
iSCSI aware (detect and prioritize iSCSI traffic into pre-defined QoS); iSCSI auto-configuration (switch configuration routine automatically sets up and optimizes performance with Dell EqualLogic storage arrays) |
| Management and security |
| Switch security |
Strong passwords, password masking, management access control - privilege levels. RADIUS and TACACS+ support, 802.1x port-based authentication. |
| SNMP support |
SNMPv1/2/3 |
| sFlow |
Yes |
| Management |
GUI access via http/https. CLI via console, Telnet, SSH, HiveManager NG |
