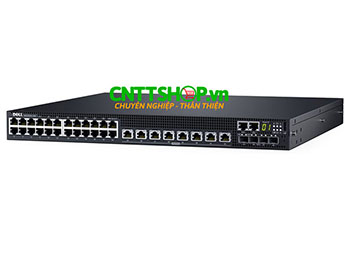

Dell EMC PowerSwitch N3132PX-ON
| DELL Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|
Thiết bị chuyển mạch Switch Core Dell EMC PowerSwitch N3132PX-ON Stackable Layer 3, 24 RJ45 10/100/1000Mb UPoE 60W, 8 Ports RJ45 10/100/1000/2500/5000Mb UPoE 60W ports, 4x 10GbE SFP+ Uplink.
Thông số kỹ thuật Dell EMC N3132PX-ON
| Overview | Dell EMC Networking N3132PX-ON,L3,24x1Gb PoE+,8x2.5/5GbE,4x10GbESFP+ ports, IO-PSU air, 1x1100w PSU |
| Performance | |
| Switch capacity | 328 Gbps |
| Forwarding capacity | 428 Mpps |
| Buffer size | 5MB |
| CPU Memory | 2GB |
| Flash Memory | 512MB |
| Dimensions in inches (H x W x D) | 17.0866 x 16.0236 x 1.7126 |
| Dimensions in millimeters (H X W X D) | 434 x 407 x 43.5 |
| Approximate weight in pounds (without modules) | 15.7 |
| Approximate weight in kilograms (without modules) | 7.12 |
| Power Supply (Watts) | 1100 x 2 |
| Max Thermal Output (BTU/hr) | 7216.68 |
| Power Consumption Max (Watts) | 2115 |
| Ports | |
| 10/100/1000 Base-T | 32 |
| 1GbE (SFP) | 4 |
| 10GbE | 4 |
| Expansion module slots | 1 |
| Power-over-Ethernet ports | 32x 60w PoE |
| Power and cooling | |
| Max. power consumption (watts) | 2145 |
| AC power supplies | 1 |
| Redundant power | Yes, dependent upon configuration |
| Airflow | I/O panel to PSU |
| Features | |
| Stacking | Stacks up to 12 using dedicated ports |
| VLANs | 4094 |
| VLAN support | Voice VLAN, Private Edge, Protocol and MAC-based, GVRP |
| Layer 2 and 3 | Layer 3 Advanced |
| IPv4/IPv6 routing | IPv4/IPv6, RIP, OSPFv3, VRRP, static routing |
| Multicast support | IGMP v1/v2/v3, IGMP Proxy, IGMP Snooping and Querier, DVMRP, PIM-DM, PIM-SM |
| Rapid Deployment | Ready rails, deploy switch configuration files, stacking commands and firmware updates by simply inserting a USB device into the port. |
| iSCSI optimization | iSCSI aware (detect and prioritize iSCSI traffic into pre-defined QoS); iSCSI auto-configuration (switch configuration routine automatically sets up and optimizes performance with Dell EqualLogic storage arrays) |
| Management and security | |
| Switch security | Strong passwords, password masking, management access control - privilege levels. RADIUS and TACACS+ support, 802.1x port-based authentication. |
| SNMP support | SNMPv1/2/3 |
| sFlow | Yes |
| Management | GUI access via http/https. CLI via console, Telnet, SSH, HiveManager NG |
Bạn đang cần tư vấn về sản phẩm: N3132PX-ON ?
Thiết bị chuyển mạch Dell EMC N3132PX-ON sử dụng nguồn 1100W nhé bạn.
