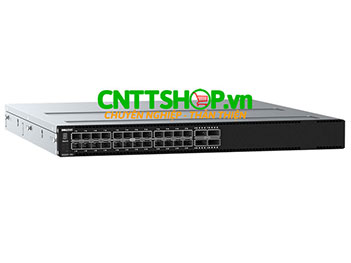

Dell EMC PowerSwitch S5224F-ON

• S5224F, 24x 25GbE SFP28 + 4x 100GbE QSFP28, 2x AC PSU, Fan modules, I/O Panel to PSU Airflow, OS10 Enterprise Edition
• S5224F, 24x 25GbE SFP28 + 4x 100GbE QSFP28, 2x AC PSU, Fan modules, PSU to I/O Panel Airflow, OS10 Enterprise Edition
• S5224F, 24x 25GbE SFP28 + 4x 100GbE QSFP28, 2x AC PSU, Fan modules, I/O Panel to PSU Airflow, NO-OS
• S5224F, 24x 25GbE SFP28 + 4x 100GbE QSFP28, 2x AC PSU, Fan modules, PSU to I/O Panel Airflow, NO-OS
• S5224F, 24x 25GbE SFP28 + 4x 100GbE QSFP28, 2x AC PSU, Fan modules, I/O Panel to PSU Airflow, OS10 Enterprise Edition, TAA
• S5224F, 24x 25GbE SFP28 + 4x 100GbE QSFP28, 2x AC PSU, Fan modules, PSU to I/O Panel Airflow, OS10 Enterprise Edition, TAA

• 24xSFP28
• 4xQSFP28

Max 10GbE density

40

Max 25GbE density

40

Dynamic routes

4

Max 50GbE density

8

Max 100GbE density

4

Switching capacity

1.08Tbps (2.16Tbps full-duplex)

Throughput

1488Mpps

Latency (nano sec)

881

1588v2 PTP timing (hardware)

Yes

CPU Memory

16GB

Packet Buffer

32MB

17.1”Wx18.1”D x1.7”H

43.4Wx46.0D x4.4H (cm)

• Transceiver, 2x100GbE, 2xSR4, QSFP28-DD
• Transceiver, 2x100GbE, 2xPSM4-IR, QSFP28-DD
• Transceiver, 2x100GbE, 2xCWDM4, QSFP28-DD
• Transceiver, 100GbE, SR4 QSFP28
• Transceiver, 100GbE, PSM4 (500m) QSFP28
• Transceiver, 100GbE, CWDM4 (2Km) QSFP28
• Transceiver, 100GbE, LR4 QSFP28
• Transceiver, 40GbE, SR4 optic QSFP+
• Transceiver, 40GbE, BIDI optic QSFP+ (Duplex)
• Transceiver, 40GbE, SM4 optic QSFP+ (Duplex)
• Transceiver, 40GbE, LM4 optic QSFP+ (Duplex)
• Transceiver, 40GbE, PSM4 10Km, QSFP+
• Transceiver, 40GbE, LR4 optic QSFP+
• Transceiver, 40GbE, ER4 optics QSFP+
• Transceiver, 25GbE, SR, NOF SFP28
• Transceiver, 25GbE, LR, SFP28
• Transceiver, 10GbE, SR SFP+, short reach
• Transceiver, 10GbE, LR SFP+, long reach
• Transceiver, 10GbE, ER SFP+, extended reach
• Transceiver, 10GbE, ZR SFP+ extra extended reach 10G
• Transceiver, 10GBASE-T use with QSA in QSFP+ port, 30m reach on CAT6a/7
• Transceiver, 1GbE, SX SFP Transceiver, 1GbE, LX SFP
• Transceiver, 1GbE, ZX SFP Transceiver, 1GbE, 10km, BiDi SFP
• Transceiver, 1GbE, 40km, BiDi SFP
• Transceiver, 1GbE, 80km, BiDi SFP
• Transceiver, 1GbE, 1000BASE-T, Gen2, SFP

• 100GbE, 4x25GbE, QSFP28 to 4xSFP28, passive DAC 100GbE, QSFP28 to QSFP28, active optical
• 100GbE, QSFP28 to QSFP28, passive DAC
• 100GbE, 2x50GbE, 2xQSFP to 2xQSFP28, passive DAC, breakout 40GbE, QSFP+ to QSFP+, active optical
• 40GbE, QSFP+ to QSFP+, passive DAC 40GbE, MTP to 4xLC optical breakout
• 40GbE, 4x10GbE, QSFP+ to 4xSFP+, passive DAC

• AC Power Supply, IO Panel to PSU Airflow AC Power Supply, PSU to IO Panel Airflow
• DC Power Supply, IO Panel to PSU Airflow (available as custom kit) DC Power Supply, PSU to IO Panel Airflow (available as custom kit)

Fan module, IO Panel to PSU Airflow

Fan module, PSU to IO Panel Airflow
