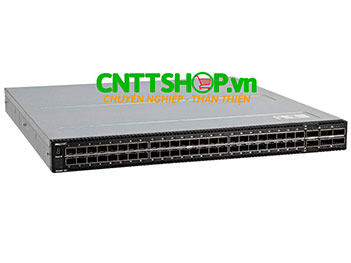

Dell EMC PowerSwitch S5248F-ON

• S5248F, 48x 25GbE SFP28 + 2x 200GbE QSFP28-DD + 4x 100GbE QSFP28, 2x AC PSU, Fan modules, I/O Panel to PSU Airflow, OS10 Enterprise Edition
• S5248F, 48x 25GbE SFP28 + 2x 200GbE QSFP28-DD + 4x 100GbE QSFP28, 2x AC PSU, Fan modules, PSU to I/O Panel Airflow, OS10 Enterprise Edition
• S5248F, 48x 25GbE SFP28 + 2x 200GbE QSFP28-DD + 4x 100GbE QSFP28, 2x AC PSU, Fan modules, I/O Panel to PSU Airflow, NO-OS
• S5248F, 48x 25GbE SFP28 + 2x 200GbE QSFP28-DD + 4x 100GbE QSFP28, 2x AC PSU, Fan modules, PSU to I/O Panel Airflow, NO-OS
• S5248F, 48x 25GbE SFP28 + 2x 200GbE QSFP28-DD + 4x 100GbE QSFP28, 2x AC PSU, Fan modules, I/O Panel to PSU Airflow, OS10 Enterprise Edition, TAA
• S5248F, 48x 25GbE SFP28 + 2x 200GbE QSFP28-DD + 4x 100GbE QSFP28, 2x AC PSU, Fan modules, PSU to I/O Panel Airflow, OS10 Enterprise Edition, TAA

• 48xSFP28
• 2xQSFP28-DD
• 4xQSFP28

Max 10GbE density

80

Max 25GbE density

80

Dynamic routes

8

Max 50GbE density

16

Max 100GbE density

8

Switching capacity

2.0Tbps (4.0Tbps full-duplex)

Throughput

1.5Bpps

Latency (nano sec)

847

1588v2 PTP timing (hardware)

Yes

CPU Memory

16GB

Packet Buffer

32MB

17.1”Wx18.1”D x1.7”H

43.4Wx46.0D x4.4H (cm)

AC Power Supply, IO Panel to PSU Airflow AC Power Supply, PSU to IO Panel Airflow

DC Power Supply, IO Panel to PSU Airflow (available as custom kit) DC Power Supply, PSU to IO Panel Airflow (available as custom kit)

Fan module, IO Panel to PSU Airflow

Fan module, PSU to IO Panel Airflow

• Transceiver, 2x100GbE, 2xSR4, QSFP28-DD
• Transceiver, 2x100GbE, 2xPSM4-IR, QSFP28-DD
• Transceiver, 2x100GbE, 2xCWDM4, QSFP28-DD
• Transceiver, 100GbE, SR4 QSFP28
• Transceiver, 100GbE, PSM4 (500m) QSFP28
• Transceiver, 100GbE, CWDM4 (2Km) QSFP28
• Transceiver, 100GbE, LR4 QSFP28
• Transceiver, 40GbE, SR4 optic QSFP+
• Transceiver, 40GbE, BIDI optic QSFP+ (Duplex)
• Transceiver, 40GbE, SM4 optic QSFP+ (Duplex)
• Transceiver, 40GbE, LM4 optic QSFP+ (Duplex)
• Transceiver, 40GbE, PSM4 10Km, QSFP+
• Transceiver, 40GbE, LR4 optic QSFP+
• Transceiver, 40GbE, ER4 optics QSFP+
• Transceiver, 25GbE, SR, NOF SFP28
• Transceiver, 25GbE, LR, SFP28
• Transceiver, 10GbE, SR SFP+, short reach
• Transceiver, 10GbE, LR SFP+, long reach
• Transceiver, 10GbE, ER SFP+, extended reach
• Transceiver, 10GbE, ZR SFP+ extra extended reach 10G
• Transceiver, 10GBASE-T use with QSA in QSFP+ port, 30m reach on CAT6a/7
• Transceiver, 1GbE, SX SFP Transceiver, 1GbE, LX SFP
• Transceiver, 1GbE, ZX SFP Transceiver, 1GbE, 10km, BiDi SFP
• Transceiver, 1GbE, 40km, BiDi SFP
• Transceiver, 1GbE, 80km, BiDi SFP
• Transceiver, 1GbE, 1000BASE-T, Gen2, SFP

• 100GbE, 4x25GbE, QSFP28 to 4xSFP28, passive DAC 100GbE, QSFP28 to QSFP28, active optical
• 100GbE, QSFP28 to QSFP28, passive DAC
• 100GbE, 2x50GbE, 2xQSFP to 2xQSFP28, passive DAC, breakout 40GbE, QSFP+ to QSFP+, active optical
• 40GbE, QSFP+ to QSFP+, passive DAC 40GbE, MTP to 4xLC optical breakout
• 40GbE, 4x10GbE, QSFP+ to 4xSFP+, passive DAC
