| Product |
Description |
| Order Option |

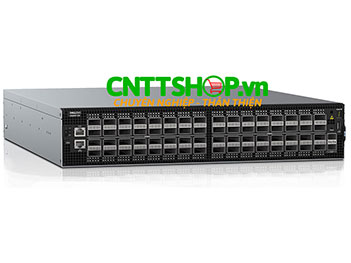

- Z9264F, 64x 100GbE QSFP28, 2x AC PSU, Fan module, I/O Panel to PSU Airflow, OS10 Enterprise Edition.
- Z9264F, 64x 100GbE QSFP28, 2x AC PSU, Fan module, PSU to I/O Panel Airflow, OS10 Enterprise Edition.
- Z9264F, 64x 100GbE QSFP28, 2x AC PSU, Fan module, I/O Panel to PSU Airflow, NO-OS.
- Z9264F, 64x 100GbE QSFP28, 2x AC PSU, Fan module, PSU to I/O Panel Airflow, NO-OS.
- Z9264F, 64x 100GbE QSFP28, 2x AC PSU, Fan module, I/O Panel to PSU Airflow, OS10 Enterprise Edition. TAA Certified.
- Z9264F, 64x 100GbE QSFP28, 2x AC PSU, Fan module, PSU to I/O Panel Airflow, OS10 Enterprise Edition. TAA Certified.
|
| Size |
2 RU, 337” (h) x 17.04” (w) x 20.08” (d) (8.56h x 44.2w x 51.0 cm d) |
| Weight |
44lbs (20kg) |
| Performance |
| Switch fabric capacity |
12.8Tbps (full-duplex) |
| Forwarding capacity |
2900Mpps when average packet < 250 bytes, 4200Mpps when average packet size >250 bytes |
| Latency |
300ns L2/400nsL= L3 |
| Packet buffer memory |
42MB |
| CPU memory |
16GB |
| MAC addresses |
160K |
| ARP table |
128K |
| IPv4 routes |
128K |
| IPv6 routes |
64K |
| Multicast hosts |
32K |
| Link aggregation |
16 links per group, 128 groups |
| Layer 2 VLANs |
4K |
| MSTP |
64 instances |
| Redundant power supplies |
- AC Power Supply, IO Panel to PSU Airflow
- AC Power Supply, PSU to IO Panel Airflow
- DC Power Supply, IO Panel to PSU Airflow (available as custom kit)
- DC Power Supply, PSU to IO Panel Airflow (available as custom kit)
|
|
Fans
|
- Fan module, IO Panel to PSU Airflow
- Fan module, PSU to IO Panel Airflow
|
|
Optics
|
- Transceiver, 100GbE, SR4 QSFP28
- Transceiver, 100GbE, eSR4 QSFP28
- Transceiver, 100GbE, SWDM4 QSFP28 (Duplex)
- Transceiver, 100GbE, PSM4 (500m) QSFP28
- Transceiver, 100GbE, CWDM4 (2Km) QSFP28
- Transceiver, 100GbE, LR4 QSFP28
- Transceiver, 100GbE, ER4 Lite (30Km) QSFP28
- Transceiver, 100GbE, DWDM4 (80Km) QSFP28
- Transceiver, 40GbE, SR4 optic QSFP+
- Transceiver, 40GbE, eSR4 optic QSFP+
- Transceiver, 40GbE, BIDI optic QSFP+ (Duplex)
- Transceiver, 40GbE, SM4 optic QSFP+ (Duplex)
- Transceiver, 40GbE, LM4 optic QSFP+ (Duplex)
- Transceiver, 40GbE, PSM4 10Km, QSFP+
- Transceiver, 40GbE, LR4 optic QSFP+
- Transceiver, 40GbE, ER4 optics QSFP+
|
| Cables |
- 100GbE, 4x25GbE, QSFP28 to 4xSFP28, passive DAC
- 100GbE, QSFP28 to QSFP28, active optical
- 100GbE, QSFP28 to QSFP28, passive DAC
- 100GbE, 2x50GbE, 2xQSFP to 2xQSFP28, passive DAC, breakout
- 40GbE, QSFP+ to QSFP+, active optical
- 40GbE, QSFP+ to QSFP+, passive DAC
- 40GbE, MTP to 4xLC optical breakout
- 40GbE, 4x10GbE, QSFP+ to 4xSFP+, passive DAC
|
| Cable management |
- Z9100 Cable Breakout Kit, MTP to LC (1RU 64-port LC over MMF)
- Z9100 Cable Breakout Kit, MTP to LC (1RU 64-port LC over SMF)
|
Switch
.png){kind=icon}
.png){kind=logo}
.jpg)
.png){kind=logo}
Bạn đang cần tư vấn về sản phẩm: Z9264F-ON ?
Băng thông chuyển mạch của thiết bị chuyển mạch Dell EMC PowerSwitch Z9264F-ON là 12.8 Tbps nhé bạn.
