| Product |
Description |

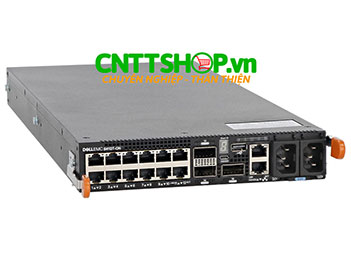

| S4112T-ON |
- S4112T, 12x 10GBASE-T, 3x 100GbE QSFP28, 2x AC Fixed PSU, 3x Fixed Fan, I/O Panel to PSU Airflow
- S4112T, 12x 10GBASE-T, 3x 100GbE QSFP28, 2x AC Fixed PSU, 3x Fixed Fan, I/O PSU to I/O Panel Airflow
- S4112T, 12x 10GBASE-T, 3x 100GbE QSFP28, 2x DC Fixed PSU, 3x Fixed Fan, I/O Panel to PSU Airflow
- S4112T, 12x 10GBASE-T, 3x 100GbE QSFP28, 2x DC Fixed PSU, 3x Fixed Fan, I/O PSU to I/O Panel Airflow
|
| Performance |
| Switching capacity (full duplex) |
|
| Forwarding Capacity (Mpps) |
|
| Buffer size |
|
| Latency (microseconds) |
|
| Ports |
| 1/10GBase-T |
12
|
| 1GbE (SFP) |
NA |
| 10GbE |
12 with breakout cables |
| 25GbE |
12 with breakout |
| 40GbE (QSFP+) |
3 |
| 50GbE |
6 |
| 100GbE |
3 |
| Expansion module slots (Modules support speed indicated) |
- |
| Optics |
- Transceiver, 10GbE, SR SFP+, short reach
- Transceiver, 10GbE, LR SFP+, long reach
- Transceiver, 10GbE, ER SFP+, extended reach
- Transceiver, 10GbE, ZR SFP+ extra extended reach 10G,
- Transceiver, 10GbE, USR, SFP+
- Transceiver, 10GBASE-T use with QSA in QSFP+ port, 30m reach on CAT6a/7
- Transceiver, 40GbE, SR4 optic QSFP+
- Transceiver, 40GbE, eSR4 optic QSFP+
- Transceiver, 40GbE, LR4 optic QSFP+
- Transceiver, 40GbE, ER4 optics QSFP+
- Transceiver, 40GbE, PSM4-LR MPO 10Km QSFP+ to LC
- Transceiver, 40GbE, LM4 / SM4 Duplex QSFP+
- Transceiver, 100GbE, SR4 QSFP28
- Transceiver, 100GbE, LR4 QSFP28
- Transceiver, 100GbE, LR4Lite QSFP28
- Transceiver, 100GbE, CWDM4 2Km QSFP28
- Transceiver, 100GbE, PSM4 500m QSFP28
|
| Power and cooling |
| Max. power consumption (W) |
200 (max) / 120 (normal) |
| Power options |
Fixed power supply |
| Redundant power supplies |
Redundant Fixed fans |
| Redundant power supplies |
Normal or reverse air flow |
| Features |
| Stacking |
Not currently available |
| Operating system |
Dell EMC OS10 and select 3rd party OS |
| Industry-standard CLI |
Dell EMC networking and several 3rd party OS |
| iSCSI optimization storage features |
iSCSI optimization and FSB |
| Max L2 VLANs and L3 VLANs |
4KL2/500L3 |
| Max MAC entries |
272K |
| Link aggregation (groups/Members) |
32 links per group, 128 groups |
| Max routes (IPv4/IPv6) |
200K/130K |
| Jumbo frames (Bytes) |
9,416 |
| IPv4 routing |
RIP, OSPF, BGP |
| IPv6 routing |
OSPFv3 |
| Multicast routing |
In process |
