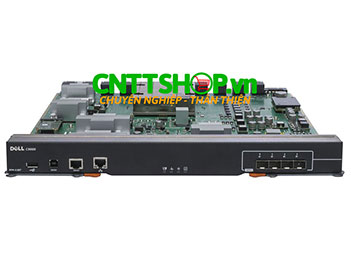

Dell Networking C9000 Series Route Processor Module (RPM)

Hardware

• 2.56Tbps RPM with 4 integrated SFP+ ports

Environmental Operating Conditions

• Supports line rate switching between line cards within the chassis. Supports up to 2,000 virtual ports. Includes 4 integrated SFP+ ports for additional connectivity options.

Optics

• Transceiver, SFP, 1000BASE-SX, 850nm Wavelength, 550m Reach
• Transceiver, SFP, 1000BASE-LX, 1310nm Wavelength, 10km Reach
• Transceiver, SFP, 1GbE, ZX, 1550nm Wavelength, 80km Reach typical on 9/125um SMF
• Transceiver, SFP, 1000BASE-T Transceiver, SFP+, 10GbE, SR, 850nm Wavelength, 300m Reach
• Transceiver, SFP+, 10GbE, LR, 1310nm Wavelength, 10km Reach
• Transceiver, SFP+, 10GbE, LRM, 1310nm Wavelength, 220 reach on MMF
• Transceiver, SFP+, 10GbE, ER, 1550nm Wavelength, 40km Reach

Cables

• Cable, SFP+ to SFP+, 10GbE, Copper Twinax Direct Attach Cable, 0.5 Meter
• Cable, SFP+ to SFP+, 10GbE, Copper Twinax Direct Attach Cable, 1 Meter
• Cable, SFP+ to SFP+, 10GbE, Copper Twinax Direct Attach Cable, 3 Meters
• Cable, SFP+ to SFP+, 10GbE, Copper Twinax Direct Attach Cable, 5 Meters
• Cable, SFP+ to SFP+, 10GbE, Copper Twinax Direct Attach Cable, 7 Meters

Maximum Power/Thermal

• 190W/648 BTU/hr

DRAM

• 24GB

Flash

• 32GB

Packet Buffer

• 9MB

Weight

• 4.18kg(9.20lbs)
