| Datasheet DS-C914S-12PK9 |
| Specifications |
| Protocols |
● FC-PH, Revision 4.3 (ANSI INCITS 230-1994)
● FC-PH, Amendment 1 (ANSI INCITS 230-1994/AM1-1996)
● FC-PH, Amendment 2 (ANSI INCITS 230-1994/AM2-1999)
● FC-PH-2, Revision 7.4 (ANSI INCITS 297-1997)
● FC-PH-3, Revision 9.4 (ANSI INCITS 303-1998)
● FC-PI, Revision 13 (ANSI INCITS 352-2002)
● FC-PI-2, Revision 10 (ANSI INCITS 404-2006)
● FC-PI-3, Revision 4 (ANSI INCITS 460-2011)
● FC-PI-4, Revision 8 (ANSI INCITS 450-2008)
● FC-PI-5, Revision 6 (ANSI INCITS 479-2011)
● FC-FS, Revision 1.9 (ANSI INCITS 373-2003)
● FC-FS-2, Revision 1.01 (ANSI INCITS 424-2007)
● FC-FS-2, Amendment 1 (ANSI INCITS 424-2007/AM1-2007)
● FC-FS-3, Revision 1.11 (ANSI INCITS 470-2011)
● FC-LS, Revision 1.62 (ANSI INCITS 433-2007)
● FC-LS-2, Revision 2.21 (ANSI INCITS 477-2011)
● FC-SW-2, Revision 5.3 (ANSI INCITS 355-2001)
● FC-SW-3, Revision 6.6 (ANSI INCITS 384-2004)
● FC-SW-4, Revision 7.5 (ANSI INCITS 418-2006)
● FC-SW-5, Revision 8.5 (ANSI INCITS 461-2010)
● FC-GS-3, Revision 7.01 (ANSI INCITS 348-2001)
● FC-GS-4, Revision 7.91 (ANSI INCITS 387-2004)
● FC-GS-5, Revision 8.51 (ANSI INCITS 427-2007)
● FC-GS-6, Revision 9.4 (ANSI INCITS 463-2010)
● FCP, Revision 12 (ANSI INCITS 269-1996)
● FCP-2, Revision 8 (ANSI INCITS 350-2003)
● FCP-3, Revision 4 (ANSI INCITS 416-2006)
● FCP-4, Revision 2b (ANSI INCITS 481-2011)
● FC-SB-2, Revision 2.1 (ANSI INCITS 349-2001)
● FC-SB-3, Revision 1.6 (ANSI INCITS 374-2003)
● FC-SB-3, Amendment 1 (ANSI INCITS 374-2003/AM1-2007)
● FC-SB-4, Revision 3.0 (ANSI INCITS 466-2011)
● FC-SB-5, Revision 2.00 (ANSI INCITS 485-2014)
● FC-BB-6, Revision 2.00 (ANSI INCITS 509-2014)
● FC-BB-2, Revision 6.0 (ANSI INCITS 372-2003)
● FC-BB-3, Revision 6.8 (ANSI INCITS 414-2006)
● FC-BB-4, Revision 2.7 (ANSI INCITS 419-2008)
● FC-BB-5, Revision 2.0 (ANSI INCITS 462-2010)
● FC-VI, Revision 1.84 (ANSI INCITS 357-2002)
● FC-SP, Revision 1.8 (ANSI INCITS 426-2007)
● FC-SP-2, Revision 2.71 (ANSI INCITS 496-2012)
● FAIS, Revision 1.03 (ANSI INCITS 432-2007)
● FAIS-2, Revision 2.23 (ANSI INCITS 449-2008)
● FC-IFR, Revision 1.06 (ANSI INCITS 475-2011)
● FC-FLA, Revision 2.7 (INCITS TR-20-1998)
● FC-PLDA, Revision 2.1 (INCITS TR-19-1998)
● FC-Tape, Revision 1.17 (INCITS TR-24-1999)
● FC-MI, Revision 1.92 (INCITS TR-30-2002)
● FC-MI-2, Revision 2.6 (INCITS TR-39-2005)
● FC-MI-3, Revision 1.03 (INCITS TR-48-2012)
● FC-DA, Revision 3.1 (INCITS TR-36-2004)
● FC-DA-2, Revision 1.06 (INCITS TR-49-2012)
● FC-MSQS, Revision 3.2 (INCITS TR-46-2011)
● Fibre Channel classes of service: Class 2, Class 3, and Class F
● Fibre Channel standard port types: E, F and FL
● Fibre Channel enhanced port types: SD, ST, and TE
● FC-NVMe
● In-band management using IP over Fibre Channel (RFC 2625)
● IPv6, IPv4, and Address Resolution Protocol (ARP) over Fibre Channel (RFC 4338)
● Extensive IETF-standards-based TCP/IP, SNMPv3, and remote monitoring (RMON) MIBs |
| Ports |

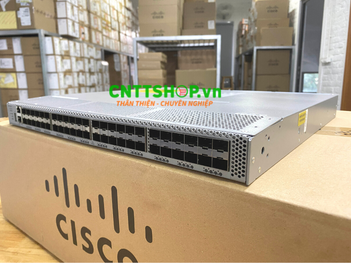

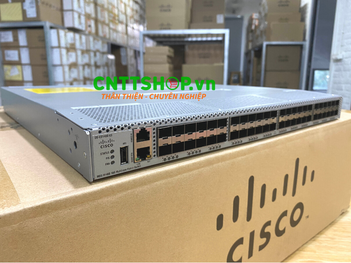

● Fixed configuration with 48 ports of 16-Gbps Fibre Channel
● Available in a 12-port configurable base or as a bundle with all 48 ports enabled
● Enable incremental ports on the 12-port base model, with the 12-port On-Demand Activation license |
| Security |
● VSAN fabric isolation
● Hardware zoning by Access Control Lists (ACLs)
● Fibre Channel Security Protocol (FC-SP) switch-to-switch authentication
● FC-SP host-to-switch authentication
● Role-based access control (RBAC) using RADIUS, TACACS+, or Lightweight Directory Access Protocol (LDAP) authentication, authorization, and accounting (AAA) functions
● Secure FTP (SFTP)
● Secure Shell Protocol Version 2 (SSHv2)
● Simple Network Management Protocol Version 3 (SNMPv3) implementing Advanced Encryption Standard (AES)
● Control-plane security |
| Performance |
Port speed: 2/4/8/16-Gbps autosensing with 16 Gbps of dedicated bandwidth per port
● Buffer credits: Up to 256 for a group of 4 ports, with a default of 64 buffer credits per port and a maximum of
253 buffer credits for a single port in the group
● PortChannel: Up to 16 physical links |
| Reliability and availability |
● ISSU

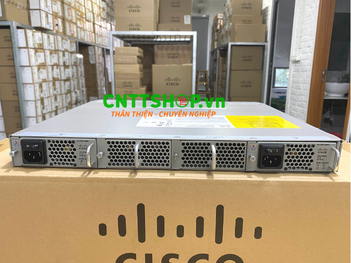

● Hot-swappable, dual redundant power supplies

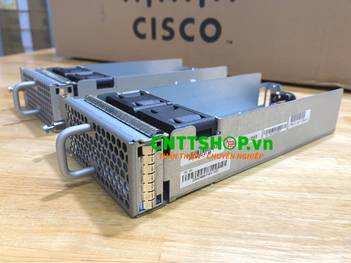

● Hot-swappable fan tray with integrated temperature and power management
● Hot-swappable SFP+ optics
● Passive backplane
● Stateful process restart
● Any port configuration for PortChannels
● Fabric-based multipathing
● Per-VSAN fabric services
● Port tracking
● VRRP for management connections
● Online diagnostics |
| Network management |
● Access methods
◦ Out-of-band 10/100/1000 Ethernet port
◦ RS-232 serial console port ◦ USB
● Access protocols
◦ CLI using the console and Ethernet ports
◦ SNMPv3 using the Ethernet port and in-band IP over Fibre Channel access
◦ Storage Networking Industry Association (SNIA) Storage Management Initiative Specification (SMI-S)
● Distributed device alias service
● Network security
◦ Per-VSAN RBAC using RADIUS and TACACS+-based authentication, authorization, and accounting (AAA) functions
◦ SFTP
◦ SSHv2 implementing AES
◦ SNMPv3 implementing AES
● Management applications
◦ Cisco MDS 9000 Family CLI
◦ Cisco Prime DCNM
|
| Programming interfaces |
● Scriptable CLI
● Cisco Prime DCNM web services API |
| Physical dimensions (HxWxD) |
● Dimensions (H x W x D): 1.72 x 17.16 x 16.34 in. (4.37 x 43.59 x 41.50 cm), 1RU
● Rack-mountable in standard 19-inch Electronic Industries Alliance [EIA] rack
● Weight of fully configured chassis: 19.84 lb (9 kg) |
| Power |

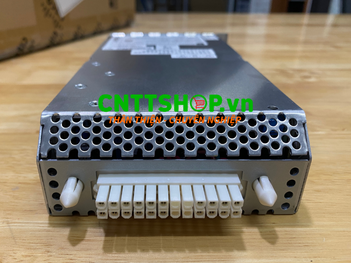

● Power supply: 300W AC (2 per switch)
● Power cord: Notched C15 socket connector connecting to C16 plug on power supply
● AC input characteristics
● 100 to 240V AC (10% range)
● 50 to 60 Hz (nominal)
● Airflow: back to front (toward ports)
● 200 linear feet per minute (LFM) through system fan assembly
● Cisco recommends maintaining a minimum air space of 2.5 in. (6.4 cm) between walls and chassis air vents
and a minimum horizontal separation of 6 in. (15.2 cm) between two chassis to prevent overheating |
| Temperature range |
● Temperature, ambient operating: 32 to 104°F (0 to 40°C)
● Temperature, ambient non-operating and storage: -40 to 158°F (-40 to 70°C)
● Relative humidity, ambient (noncondensing) operating: 10 to 90%
● Relative humidity, ambient (noncondensing) non-operating and storage: 10 to 95%
● Altitude, operating: -197 to 6500 ft (-60 to 2000m) |
| Approvals and compliance |
● Safety compliance
● CE Marking
● UL 60950
● CAN/CSA-C22.2 No. 60950
● EN 60950
● IEC 60950
● TS 001
● AS/NZS 3260
● IEC60825
● EN60825
● 21 CFR 1040
● EMC compliance
● FCC Part 15 (CFR 47) Class A
● ICES-003 Class A
● EN 55022 Class A
● CISPR 22 Class A
● AS/NZS 3548 Class A
● VCCI Class A
● EN 55024
● EN 50082-1
● EN 61000-6-1
● EN 61000-3-2
● EN 61000-3-3
|
| Fabric services |
● Name server
● Registered State Change Notification (RSCN)
● Login services
● Fabric Configuration Server (FCS)
● Public loop
● Broadcast
● In-order delivery |
| Advanced functions |
● VSAN
● IVR
● PortChannel with multipath load balancing
● Flow-based and zone-based QoS |
| Features and Benefits |
| Feature |
Benefit |
| Common software across all platforms |
Reduce Total Cost of Ownership (TCO) by using Cisco NX-OS and Cisco Prime DCNM for consistent provisioning, management, and diagnostic capabilities across the fabric. |
| PowerOn Auto Provisioning |
Automate deployment and upgrade of software images. |
| Smart zoning |
Reduce consumption of hardware resources and administrative time needed to create and manage zones. |
| Intelligent diagnostics/Hardware based slow port detection |
Enhance reliability, speed problem resolution, and reduce service costs by using Fibre Channel ping and traceroute to identify exact path and timing of flows, as well as Cisco Switched Port Analyzer (SPAN) and Remote SPAN (RSPAN) and Cisco Fabric Analyzer to capture and analyze network traffic |
| Virtual output queuing |
Help ensure line-rate performance on each port by eliminating head-of-line blocking. |
| High-performance ISLs |
Optimize bandwidth utilization by aggregating up to 16 physical ISLs into a single logical PortChannel bundle with multipath load balancing. |
| In-Service Software Upgrades |
Reduce downtime for planned maintenance and software upgrades. |
