| Specifications |
5050s |
| Intelligent Traffic Processing |
- L7 requests per second: 750K
- L4 connections per second: 350K
- L4 HTTP requests per second: 3.5M
- L4 concurrent connections: 24M
- Throughput: 30 Gbps/15 Gbps L4/L7
|
| Hardware Offload SSL/TLS |
- Included: 10,000 TPS (2K keys)
- Maximum: 10,000 TPS (2K keys)
- 12 Gbps bulk encryption
|
| FIPS SSL |
N/A |
| Hardware DDoS Protection |
N/A |
| Hardware Compression |
20M SYN cookies per second |
| TurboFlex Performance Profiles |
N/A |
| Software Compression |
- Included: 6 Gbps
- Maximum: 6 Gbps
|
| Software Architecture |
64-bit TMOS |
| On-Demand Upgradable |
Yes |
| Virtualization (Maximum Number of vCMP Guests) |
N/A |
| Processor |
1 quad core Intel Xeon processor (total 8 hyperthreaded logical processing cores) |
| Memory |
32 GB |
| Hard Drive |
400 GB solid state drive |
| Gigabit Ethernet CU Ports |
- 4 x 1GbE Cu RJ45 ports
- 8 x 10GbE SFP+ ports
- 1 x 10/100/1000 Ethernet Management port
- 1 x RJ45 console port
- 1 x RJ45 failover port
- 2 x USB 2.0 interfaces
|
| Gigabit Fiber Ports (SFP) |
Optional SFP (SX, LX, or copper) |
| 10 Gigabit Fiber Ports (SFP+) |
8 SR or LR (sold separately); Optional 10G copper direct attach |
| 40 Gigabit Fiber Ports (QSFP+) |
N/A |
| Power Supply |
One 400W included (80+ Platinum efficiency), dual power and DC optional |
| Typical Consumption |
165W (single supply, 110V input) |
| Input Voltage |
90–240 VAC +/- 10% auto switching, 50/60hz |
| Typical Heat Output |
564 BTU/hour (single supply, 110V input) |
| Dimensions |
1.75” (4.45 cm) H x 17” (43.18 cm) W x 21” (53.34 cm) D 1U industry standard rack-mount chassis |
| Weight |
21 lbs. (9.53 kg) (one power supply) |
| Operating Temperature |
32° to 104° F (0° to 40° C) |
| Operational Relative Humidity |
5% to 85% at 40° C |
| Safety Agency Approval |
- ANSI/UL 60950-1-2011
- CSA 60950-1-07, including Amendment 1:2011
- Low Voltage Directive 2006/95/EC; CB Scheme
- EN 60950-1:2006+A11:2009+A1:2010+A12:2011
- IEC 60950-1:2005, A1:200
|
| Certifications/ Susceptibility Standards |
- EN 300 386 V1.5.1 (2010-10); EN 55022:2010
- EN 61000-3-2:2006+A1:2009+A2:2009; EN 61000-3-3:2008
- EN 55024:2010; EN 55022:2010; EN 61000-3-3:2008
- EN 55024:2010; USA FCC Class A; VCCI Class A
|
Switch
.png){kind=icon}
.png){kind=logo}

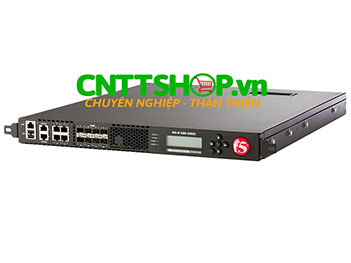

Bạn đang cần tư vấn về sản phẩm: F5 BIG-IP 5050s ?
