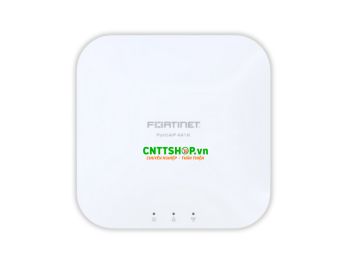

FAP-441K-S Fortinet FortiAP 4x4 MU-MIMO Quad Radio Indoor

FAP-441K-S Datasheet

Hardware

Type

Indoor AP

Number of Radios

4 + 1 BLE

Number of Antennas

Internal: x4 dual band WIFI +

x4 6GHz WIFI + x2 Tri-band

scanning + x1 2.4GHz BLE/

ZigBee + x1 GPS

Antenna Type and Peak Gain

Omni Directional Antenna

Dual band antenna:

• 4.0 dBi for 2.4GHz

• 5.6 dBi for 5 GHz

6GHz antenna:

• 5.4dBi for 6GHz band

Tri-band antenna:

• 4.0 dBi for 2.4 GHz,

• 6.0 dBi for 5 GHz and

• 5.7 dBi for 6 GHz band

BLE antenna:

• 5.1 dBi for 2.4GHz

GPS active antenna:

• 2.2 dBi antenna

Frequency Bands (GHz)

• ISM 2.4-2.484 GHz

• U-NII-1 5.15-5.25 GHz

• U-NII-2A 5.25-5.35 GHz

• U-NII-2C 5.47-5.725 GHz

• U-NII-3 5.725-5.85 GHz

• U-NII-4 5.850-5.925 GHz

• U-NII-5 5.925-6.425 GHz

• U-NII-6 6.425-6.525 GHz

• U-NII-7 6.525-6.875 GHz

• U-NII-8 6.875-7.125 GHz

Radio 1 Capabilities

Frequency band: 2.4GHz

Channel width: 20/40MHz

Modulation: BPSK, QPSK, 64/256/1024 QAM

MIMO Chains: 4x4 Service

Radio 2 Capabilities

Frequency band: 5.0GHz UNII-1 to UNII-4

Channel width: 20/40/80/160/240MHz

Modulation: BPSK, QPSK, 64/256/1024/4096 QAM

MIMO Chains: 4x4 Service

Radio 3 Capabilities

Frequency band: 6.0GHz UNII-5 to UNII-8

Channel width: 20/40/80/160/320MHz

Modulation: BPSK, QPSK, 64/256/1024/4096 QAM

MIMO Chains: 4x4 Service

Radio 4 Capabilities

Frequency band: 2.4/5.0/6.0GHz

Channel width: 20/40/80/160MHz

Modulation: BPSK, QPSK, 64/256/1024 QAM

MIMO Chains: 2x2 Scanning

Maximum Data Rate

2.4GHz band: up to 1.148 Gbps

5.0GHz band: up to 8.648 Gbps

6.0GHz band: up to 11.530 Gbps

Bluetooth Low Energy

(BT/BLE) Radio

Bluetooth scanning and iBeacon advertizement

@10 dBm max TX power

GNSS

Supported Bands:

• GPS L1 C/A, QZSS L1 C/A:

• 1575.42 MHz

• GLONASS L1: 1598.0625–1605.375 MHz

• BDS B1I: 1561.098 MHz, Galileo E1: 1575.42 MHz

 Default constallations:

• GPS + GLONASS + BDS + Galileo + QZSS

. Number of Tracking Channels: 47

. Number of Concurrent GNSS: 5

. SBAS: WAAS, EGNOS, MSAS and

GAGAN

. Sensitivity (@ Default Constallations): -147 dBm

Interfaces

• x2 100M/1000M/2.5G/5.0G/10G Multigigabit Ethernet (RJ45)

• x1 Type 3.0 USB at 4.5W, x1 RS-232 RJ45 Serial Port

Power over Ethernet (PoE)

• x1 802.3bt PoE default or

• x2 802.3at PoE (Dual PoE current sharing)

Simultaneous SSIDs

Up to 24

EAP Type(s)

EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST

User/Device Authentication

WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key,

WEP, Web Captive Portal, MAC blacklist and whitelist

Maximum Tx Power (Conducted)

• 2.4GHz band: 29 dBm / 794 mW (4 chains combined)*

• 5.0GHz band: 27.8 dBm / 602 mW (4 chains combined)*

• 6.0GHz band: 23 dBm / 200 mW (4 chains combined @

• 160MHz BW)*

Kensington Lock

Yes

IEEE Standards

802.11a, 802.11b, 802.11be, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11ac, 802.11ax, 802.1X, 802.3ad, 802.3at, 802.3bt, 802.3az

SSID Types Supported

Local-Bridge, Mesh, and Tunnel

Per Radio Client Capacity

Up to 512 clients per radio

(Radio1, Radio2 and Radio3)

Cellular Co-existence

Yes

LED Off Mode

Yes

Advanced 802.11 Features

OFDMA

Yes

Spatial Reuse (BSS Coloring)

Yes

UL MU-MIMO

Yes

DL- MU-MIMO

Yes

Enhanced Target Wake Time

(TWT)

Yes

ZeroWait DFS

No

Onboard Security Functions

UTP Capable

No

UTP Features

N/A

Wireless Monitoring Capabilities

Rogue Scan radio modes

Background, Dedicated

WIPS / WIDS radio modes

Background, Dedicated (recommended)

Packet Sniffer Mode

Yes

Spectrum Analyzer

Yes

Dimensions

Length x Width x Height

9.84 x 9.84 x 2.26 inches (250 x 250 x 57.5 mm)

Weight

4.36 lbs (1.98 kg)

Package (shipping) Weight

6.9 lbs (3.13 kg)

Mounting Options

Ceiling, T-Rail, and Wall

Included Accessories

Standard Mounting Kit for Ceiling, T-Rail, and Wall

Environment

Power Supply

GPI-145 or SP-FAP250-PA-10

Power Consumption (Max)

41.7 W

PoE Mode

Full - 802.3bt or 2x802.3at or DC : Tx Power - Maximum

(all radios); # of Chains - 4x4 ; USB - Enabled

High - 802.3at or 2x802.3af : R1(2.4GHz), R2(5GHz) and

R3 (6GHz) Operation in Low Tx Power 17 dBm, # of Chains

- 2x2; R4 operational ; USB - Disabled

Humidity

5% to 90% non-condensing

Operating/Storage Temp.

32°F to 122°F (0°C to 50°C)/-22°F to 158°F (-30°C to 70°C)

Directives

Low Voltage Directive * RoHS

UL2043 Plenum Material

Yes

Mean Time Between Failures

>10 Years

IP Rating

N/A

Surge Protection Built In

Yes

Hit-less PoE Failover

Yes

Certifications

Wi-Fi Alliance Certified

Certified (Wi-Fi 7 in progress)

DFS

No

Warranty

Limited Lifetime Warranty

Yes
