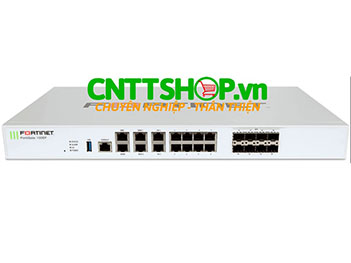

FG-100EF Firewall Fortinet FortiGate 100EF
| FortiGate Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|
Firewall Fortinet FortiGate FG-100EF cung cấp khả năng tường lửa thế hệ mới cho các doanh nghiệp vừa và lớn, với sự linh hoạt được triển khai tại các doanh nghiệp hoặc các chi nhánh.
FG-100EF Datasheet
Firewall FortiGate FG-100EF giúp chống lại các mối đe dọa trên mạng với bộ xử lý bảo mật cung cấp hiệu suất cao, hiệu quả bảo mật và khả năng hiển thị chi tiết các vấn đề bảo mật.
Thông số kỹ thuật Firewall FortiGate FG-100EF
| Interfaces and Modules |
| GE RJ45 Ports |
8 |
| GE RJ45 Management/HA/DMZ Ports |
1 / 2 / 1 |
| GE SFP Slots |
8 |
| GE RJ45 PoE/+ Ports |
- |
| GE RJ45 WAN Ports |
2 |
| GE RJ45 or SFP Shared Ports |
- |
| Console Port |
1 |
| USB Port |
1 |
| Internal Storage |
- |
| Included Transceivers |
- |
| System Performance and Capacity |
| Firewall Throughput (1518 / 512 / 64 byte, UDP) |
7.4 / 7.4 / 4.4 Gbps |
| Firewall Latency (64 byte, UDP) |
3 μs |
| Firewall Throughput (Packet per Second) |
6.6 Mpps |
| Concurrent Sessions (TCP) |
2 Million |
| New Sessions/Sec (TCP) |
30,000 |
| Firewall Policies |
10,000 |
| IPsec VPN Throughput (512 byte) |
4 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels |
2000 |
| Client-to-Gateway IPsec VPN Tunnels |
10,000 |
| SSL-VPN Throughput |
250 Mbps |
| Concurrent SSL-VPN Users |
300 |
| SSL Inspection Throughput (IPS, HTTP) |
190 Mbps |
| Application Control Throughput (HTTP 64K) |
1 Gbps |
| CAPWAP Throughput (1444 byte, UDP) |
1.5 Gbps |
| Virtual Domains (Default / Maximum) |
10 / 10 |
| Maximum Number of Switches Supported |
24 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) |
64 / 32 |
| Maximum Number of FortiTokens |
1,000 |
| Maximum Number of Registered FortiClients |
600 |
| High Availability Configurations |
Active / Active, Active / Passive, Clustering |
| System Performance — Optimal Traffic Mix |
| IPS Throughput |
1.9 Gbps |
| System Performance — Enterprise Traffic Mix |
| IPS Throughput |
500 Mbps |
| NGFW Throughput |
360 Mbps |
| Threat Protection Throughput |
250 Mbps |
| Dimensions and Power |
| Height x Width x Length (inches) |
1.75 x 17 x 10 |
| Height x Width x Length (mm) |
44.45 x 432 x 254 |
| Weight |
7.28 lbs (3.3 kg) |
| Form Factor |
Rack Mount, 1 RU |
Các loại nguồn sử dụng cho Firewall FortiGate FG-100EF
| External redundant AC power supply |
FRPS-100 |
External redundant AC power supply for up to 4 units: FG-100/101E, FG-300C, FG-310B, FS-348B and FS-448B. Up to 2 units: FG-200B, FG-200D, FG-200/201E, FG-240D and FG-300D, FG-400D, FG-500D, FG-600D, FHV-500D, FDD-200B, FDD-400B, FDD-600B and FDD-800B. |
Các loại module quang sử dụng cho Firewall FortiGate FG-100EF
| 1 GE SFP LX transceiver module |
FG-TRAN-LX |
1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots |
| 1 GE SFP RJ45 transceiver module |
FG-TRAN-GC |
1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots |
| 1 GE SFP SX transceiver module |
FG-TRAN-SX |
1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots |
Các tùy chọn Option, License cho FG-100EF
Fortinet FortiGate-100EF 360 Protection (ASE FortiCare plus App Ctrl, IPS, AV, Web Filtering, AS, FSA Cloud, Security Rating, IoT Detection, SD-WAN Orchestrator/Cloud Monitoring/Overlay Ctrl VPN, FMG/FAZ/IPAM Cloud, Industrial Security and FortiConverter
FortiGate-100EF 1 Year 360 Protection (ASE FortiCare plus App Ctrl, IPS, AMP, Web Filtering, AS, Security Rating, IoT Detection, SD-WAN Orchestrator/Cloud Monitoring/Overlay Ctrl VPN, FMG/FAZ/IPAM Cloud, Industrial Security and FortiConverter Svc)
#FC-10-FG1HF-817-02-12
List Price: Liên hệ
FortiGate-100EF 3 Year 360 Protection (ASE FortiCare plus App Ctrl, IPS, AMP, Web Filtering, AS, Security Rating, IoT Detection, SD-WAN Orchestrator/Cloud Monitoring/Overlay Ctrl VPN, FMG/FAZ/IPAM Cloud, Industrial Security and FortiConverter Svc)
#FC-10-FG1HF-817-02-36
List Price: Liên hệ
FortiGate-100EF 5 Year 360 Protection (ASE FortiCare plus App Ctrl, IPS, AMP, Web Filtering, AS, Security Rating, IoT Detection, SD-WAN Orchestrator/Cloud Monitoring/Overlay Ctrl VPN, FMG/FAZ/IPAM Cloud, Industrial Security and FortiConverter Svc)
#FC-10-FG1HF-817-02-60
List Price: Liên hệ
Fortinet FortiGate-100EF Enterprise Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering, Antispam, FortiSandbox Cloud, IoT Detection, Industrial Security, Security Rating, and FortiConverter Svc)
FortiGate-100EF 1 Year Enterprise Protection (24x7 FortiCare plus Application Control, IPS, AMP, Web Filtering, Antispam, IoT Detection, Industrial Security, Security Rating, and FortiConverter Svc)
#FC-10-FG1HF-811-02-12
List Price: Liên hệ
FortiGate-100EF 3 Year Enterprise Protection (24x7 FortiCare plus Application Control, IPS, AMP, Web Filtering, Antispam, IoT Detection, Industrial Security, Security Rating, and FortiConverter Svc)
#FC-10-FG1HF-811-02-36
List Price: Liên hệ
FortiGate-100EF 5 Year Enterprise Protection (24x7 FortiCare plus Application Control, IPS, AMP, Web Filtering, Antispam, IoT Detection, Industrial Security, Security Rating, and FortiConverter Svc)
#FC-10-FG1HF-811-02-60
List Price: Liên hệ
Fortinet FortiGate-100EF IoT Detection Service
FortiGate-100EF 1 Year IoT Detection Service
#FC-10-FG1HF-231-02-12
List Price: Liên hệ
Fortinet FortiGate-100EF FortiIPAM Cloud Service
FortiGate-100EF 1 Year FortiIPAM Cloud Service
#FC-10-FG1HF-233-02-12
List Price: Liên hệ
Fortinet FortiGate-100EF SD-WAN Orchestrator Entitlement License
FortiGate-100EF 1 Year SD-WAN Orchestrator Entitlement License
#FC-10-FG1HF-319-02-12
List Price: Liên hệ
Unified Threat Protection (UTP) (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud)
FortiGate-100EF 1 Year Unified Threat Protection (UTP) (24x7 FortiCare plus Application Control, IPS, AMP, Web Filtering and Antispam Service)
#FC-10-FG1HF-950-02-12
List Price: Liên hệ
FortiGate-100EF 3 Year Unified Threat Protection (UTP) (24x7 FortiCare plus Application Control, IPS, AMP, Web Filtering and Antispam Service)
#FC-10-FG1HF-950-02-36
List Price: Liên hệ
FortiGate-100EF 5 Year Unified Threat Protection (UTP) (24x7 FortiCare plus Application Control, IPS, AMP, Web Filtering and Antispam Service)
#FC-10-FG1HF-950-02-60
List Price: Liên hệ
FortiCloud Management, Analysis and 1 Year Log Retention
FortiGate-100EF 1 Year FortiGate Cloud Management, Analysis and 1 Year Log Retention
#FC-10-FG1HF-131-02-12
List Price: Liên hệ
FortiGate-100EF 3 Year FortiGate Cloud Management, Analysis and 1 Year Log Retention
#FC-10-FG1HF-131-02-36
List Price: Liên hệ
FortiGate-100EF 5 Year FortiGate Cloud Management, Analysis and 1 Year Log Retention
#FC-10-FG1HF-131-02-60
List Price: Liên hệ
FortiGate-100EF Services
FortiGate-100EF 1 Year FortiGuard Advanced Malware Protection (AMP) including Antivirus, Mobile Malware and FortiGate Cloud Sandbox Service
#FC-10-FG1HF-100-02-12
List Price: Liên hệ
1 Year FortiGuard IPS Service for FortiGate-100EF
#FC-10-FG1HF-108-02-12
List Price: Liên hệ
1 Year FortiGuard Web Filtering Service for FortiGate-100EF
#FC-10-FG1HF-112-02-12
List Price: Liên hệ
FortiGate-100EF 1 Year FortiGuard Industrial Security Service
#FC-10-FG1HF-159-02-12
List Price: Liên hệ
24x7 FortiCare Contract
1 Year 24x7 FortiCare Contract for FortiGate-100EF
#FC-10-FG1HF-247-02-12
List Price: Liên hệ
FortiGate-100EF 3 Year 24x7 FortiCare Contract
#FC-10-FG1HF-247-02-36
List Price: Liên hệ
FortiGate-100EF 5 Year 24x7 FortiCare Contract
#FC-10-FG1HF-247-02-60
List Price: Liên hệ
Fortinet FortiGate-100EF Threat Protection
FortiGate-100EF 1 Year Advanced Threat Protection (24x7 FortiCare plus Application Control, IPS and AMP Service)
#FC-10-FG1HF-928-02-12
List Price: Liên hệ
FortiGate-100EF 3 Year Advanced Threat Protection (24x7 FortiCare plus Application Control, IPS and AMP Service)
#FC-10-FG1HF-928-02-36
List Price: Liên hệ
FortiGate-100EF 5 Year Advanced Threat Protection (24x7 FortiCare plus Application Control, IPS and AMP Service)
#FC-10-FG1HF-928-02-60
List Price: Liên hệ
Fortinet FortiGate-100EF Fortiguard Security Audit Update Service
FortiGate-100EF 1 Year FortiGuard Security Rating Service
#FC-10-FG1HF-175-02-12
List Price: Liên hệ
FortiConverter Service for FortiGate
FortiGate-100EF 1 Year FortiConverter Service for one time configuration conversion service
#FC-10-FG1HF-189-02-12
List Price: Liên hệ
Fortinet FortiGate-100EF SD-WAN Cloud Assisted Monitoring: Cloud-based SD-WAN Bandwidth & Quality Monitoring Service
FortiGate-100EF 1 Year SD-WAN Cloud Assisted Monitoring: Cloud-based SD-WAN Bandwidth & Quality Monitoring Service
#FC-10-FG1HF-288-02-12
List Price: Liên hệ
Fortinet FortiGate-100EF SD-WAN Overlay Controller VPN Service: Cloud-based SD-WAN VPN Overlay Service & Portal
FortiGate-100EF 1 Year SD-WAN Overlay Controller VPN Service: Cloud-based SD-WAN VPN Overlay Service & Portal
#FC-10-FG1HF-289-02-12
List Price: Liên hệ
Fortinet FortiGate-100EF FortiManager Cloud: Cloud-based Central Management & Orchestration Service
FortiGate-100EF 1 Year FortiManager Cloud: Cloud-based Central Management & Orchestration Service
#FC-10-FG1HF-179-02-12
List Price: Liên hệ
Fortinet FortiGate-100EF FortiAnalyzer Cloud: Base subscription for Cloud-based Events Management & Analytics Service
FortiGate-100EF 1 Year FortiAnalyzer Cloud: Cloud-based Events and Security Log Monitoring including IOC Service
#FC-10-FG1HF-188-02-12
List Price: Liên hệ
Fortinet FortiGate-100EF ASE FortiCare (24x7 plus Advanced Services Ticket Handling)
FortiGate-100EF 1 Year ASE FortiCare (24x7 plus Advanced Services Ticket Handling)
#FC-10-FG1HF-284-02-12
List Price: Liên hệ
FortiGate-100EF 3 Year ASE FortiCare (24x7 plus Advanced Services Ticket Handling)
#FC-10-FG1HF-284-02-36
List Price: Liên hệ
FortiGate-100EF 5 Year ASE FortiCare (24x7 plus Advanced Services Ticket Handling)
#FC-10-FG1HF-284-02-60
List Price: Liên hệ
.png){kind=icon}
.png){kind=logo}
Bạn đang cần tư vấn về sản phẩm: FG-100EF ?
Thiết bị Firewall FortiGate FG-100EF hoạt động tốt và ổn định nhất ở trong môi trường có nhiệt độ từ 0°C đến 40°C ạ
Thông tin chi tiết về các license của Firewall FortiGate FG-100EF đã được gửi đến mail của bạn. Bạn vui lòng check mail nhé. Nếu có thắc mắc gì khác, bạn có thể liên hệ với shop để được giải đáp.
Thiết bị tường lửa Firewall FortiGate FG-100EF có tính năng security nào đặc biệt không vậy shop, cho mình xin thêm thông tin với
Thông tin về các tính năng của Firewall FortiGate FG-100EF cùng với datasheet của sản phẩm đã được gửi vào mail của bạn, bạn vui lòng check giúp shop nha. Nếu có thắc mắc gì khác, hãy liên hệ với shop qua hotline 0906.051.599 để được tư vấn một cách chi tiết hơn bạn nhé
