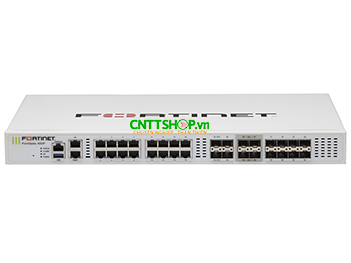

| Specifications - Datasheet Fortigate FG-400F-BDL-950-12 |
| Interfaces and Modules |
| Hardware Accelerated GE RJ45 Interfaces |
16 |
| Hardware Accelerated GE SFP Slots |
8 |
| Hardware Accelerated 10GE SFP+ Slots |
4 |
| Hardware Accelerated 10GE SFP+ Ultra Low Latency Slots |
4 |
| GE RJ45 Management Ports |
2 |
| USB Ports |
1 |
| RJ45 Console Port |
1 |
| Trusted Platform Module (TPM) |
Yes |
| Included Transceivers |
2x SFP (SX 1 GE) |
| System Performance |
| IPS Throughput |
12 Gbps |
| NGFW Throughput |
10 Gbps |
| Threat Protection Throughput |
9 Gbps |
| System Performance and Capacity |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) |
79.5 / 78.5 / 70 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 64 byte, UDP) |
79.5 / 78.5 / 70 Gbps |
| Firewall Latency (64 byte UDP packets) |
4.19 μs / 2.5 μs |
| Firewall Throughput (Packets Per Second) |
105 Mpps |
| Concurrent Sessions (TCP) |
7.8 Million |
| New Sessions/Second (TCP) |
500000 |
| Firewall Policies |
10000 |
| IPsec VPN Throughput (512 byte) |
55 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels |
2000 |
| Client-to-Gateway IPsec VPN Tunnels |
50000 |
| SSL-VPN Throughput |
3.6 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) |
5000 |
| SSL Inspection Throughput (IPS, avg. HTTPS) |
8 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) |
6000 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) |
800000 |
| Application Control Throughput (HTTP 64K) |
28 Gbps |
| CAPWAP Throughput (HTTP 64K) |
65 Gbps |
| High Availability Configurations |
Active / Active, Active / Passive, Clustering |
| Power |
| AC Power Input |
100–240V AC, 50/60Hz |
| AC Current (Maximum) |
6A |
| AC Power Consumption (Average / Maximum) |
154.8 W / 189.2 W |
| Dimensions |
| Height x Width x Length |
1.75 x 17.0 x 15.0 in
4.445 x 43.2 x 38 cm |
| Weight |
14.11 lbs (6.4 kg) |
| Form Factor |
Rack Mount, 1 RU |
