FortiGate FG-500E-BDL with 1 year 8x5 UTM Bundle License
FortiGate Part Number |
:
|
List Price |
: $
|
Giá bán |
:
|
Bảo hành |
:
|
Made In |
:
|
Stock |
:
|
Firewall Fortinet FortiGate FG-500E-BDL cung cấp khả năng tường lửa thế hệ mới cho các doanh nghiệp vừa và lớn, với sự linh hoạt được triển khai tại các doanh nghiệp hoặc các chi nhánh.
FG-500E-BDL Datasheet
Firewall FortiGate FG-500E-BDL giúp chống lại các mối đe dọa trên mạng với bộ xử lý bảo mật cung cấp hiệu suất cao, hiệu quả bảo mật và khả năng hiển thị chi tiết các vấn đề bảo mật.

Thông số kỹ thuật Firewall FortiGate FG-500E-BDL
Interfaces and Modules |
Hardware Accelerated 10 GE SFP+ Slots |
2 |
Hardware Accelerated GE SFP Slots |
8 |
Hardware Accelerated GE RJ45 Ports |
8 |
GE RJ45 Management / HA Ports |
2 |
USB Ports (Client / Server) |
2 |
Console Port |
1 |
Internal Storage |
NIL |
Included Transceivers |
2x SFP (SX 1 GE) |
System Performance and Capacity |
Firewall Throughput (1518 / 512 / 64 byte, UDP) |
36 / 36 / 32 Gbps |
Firewall Latency (64 byte, UDP) |
2 μs |
Firewall Throughput (Packet per Second) |
33 Mpps |
Concurrent Sessions (TCP) |
8 Million |
New Sessions/Sec (TCP) |
300,000 |
Firewall Policies |
10,000 |
IPsec VPN Throughput (512 byte) |
20 Gbps |
Gateway-to-Gateway IPsec VPN Tunnels |
2000 |
Client-to-Gateway IPsec VPN Tunnels |
50,000 |
SSL-VPN Throughput |
5 Gbps |
Concurrent SSL-VPN Users |
500 |
SSL Inspection Throughput (IPS, HTTP) |
6.8 Gbps |
Application Control Throughput (HTTP 64K) |
14 Gbps |
CAPWAP Throughput (1444 byte, UDP) |
18 Gbps |
Virtual Domains (Default / Maximum) |
10 / 10 |
Maximum Number of Switches Supported |
48 |
Maximum Number of FortiAPs (Total / Tunnel Mode) |
512 / 256 |
Maximum Number of FortiTokens |
1,000 |
Maximum Number of Registered FortiClients |
2,000 |
High Availability Configurations |
Active / Active, Active / Passive, Clustering |
System Performance — Optimal Traffic Mix |
IPS Throughput |
11 Gbps |
System Performance — Enterprise Traffic Mix |
IPS Throughput |
5.2 Gbps |
NGFW Throughput |
5 Gbps |
Threat Protection Throughput |
4.7 Gbps |
Dimensions and Power |
Height x Width x Length (inches) |
1.75 x 17.0 x 15.0 |
Height x Width x Length (mm) |
44.45 x 432 x 380 |
Weight |
16.1 lbs (7.3 kg) |
Form Factor |
1 RU |
AC Power Supply |
100–240V AC, 60–50 Hz |
DC Power Supply |
- |
Power Consumption (Average / Maximum) |
95 W / 193 W |
Heat Dissipation |
613 BTU/h |
Redundant Power Supplies |
Yes, Hot Swappable |
Operating Environment and Certifications |
Operating Temperature |
32–104°F (0–40°C) |
Storage Temperature |
-31–158°F (-35–70°C) |
Humidity |
10–90% non-condensing |
Noise Level |
43 dBA |
Operating Altitude |
Up to 7,400 ft (2,250 m) |
Compliance |
FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB |
Certifications |
ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6 |
License |
Hardware plus 1 year 8x5 Forticare and FortiGuard UTM Bundle |
Các loại nguồn sử dụng cho Firewall FortiGate FG-500E-BDL
Optional Power Supply |
SP-FG300E-PS |
AC power supply for FG-300/301E and FG-500/501E |
Các loại module quang sử dụng cho Firewall FortiGate FG-500E-BDL
10 GE SFP+ Transceiver Module, Short Range |
FG-TRAN-SFP+SR |
10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots. |
10 GE SFP+ Transceiver Module, Long Range |
FG-TRAN-SFP+LR |
10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots. |
10 GE SFP+ Active Direct Attach Cable, 10m / 32.8 ft |
SP-CABLE-ADASFP+ |
10 GE SFP+ active direct attach cable, 10m / 32.8 ft for all systems with SFP+ and SFP/SFP+ slots |
1 GE SFP LX transceiver module |
FG-TRAN-LX |
1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots |
1 GE SFP RJ45 transceiver module |
FG-TRAN-GC |
1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots |
1 GE SFP SX transceiver module |
FG-TRAN-SX |
1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots |
Các tùy chọn Option, License cho FG-500E-BDL
Fortinet FortiGate-500E 360 Protection (ASE FortiCare plus App Ctrl, IPS, AV, Web Filtering, AS, FSA Cloud, Security Rating, IoT Detection, SD-WAN Orchestrator/Cloud Monitoring/Overlay Ctrl VPN, FMG/FAZ/IPAM Cloud, Industrial Security and FortiConverter S
FortiGate-500E 1 Year 360 Protection (ASE FortiCare plus App Ctrl, IPS, AMP, Web Filtering, AS, Security Rating, IoT Detection, SD-WAN Orchestrator/Cloud Monitoring/Overlay Ctrl VPN, FMG/FAZ/IPAM Cloud, Industrial Security and FortiConverter Svc)
#FC-10-0500E-817-02-12
List Price: Liên hệ
FortiGate-500E 3 Year 360 Protection (ASE FortiCare plus App Ctrl, IPS, AMP, Web Filtering, AS, Security Rating, IoT Detection, SD-WAN Orchestrator/Cloud Monitoring/Overlay Ctrl VPN, FMG/FAZ/IPAM Cloud, Industrial Security and FortiConverter Svc)
#FC-10-0500E-817-02-36
List Price: Liên hệ
FortiGate-500E 5 Year 360 Protection (ASE FortiCare plus App Ctrl, IPS, AMP, Web Filtering, AS, Security Rating, IoT Detection, SD-WAN Orchestrator/Cloud Monitoring/Overlay Ctrl VPN, FMG/FAZ/IPAM Cloud, Industrial Security and FortiConverter Svc)
#FC-10-0500E-817-02-60
List Price: Liên hệ
Fortinet FortiGate-500E Enterprise Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering, Antispam, FortiSandbox Cloud, IoT Detection, Industrial Security, Security Rating, and FortiConverter Svc)
FortiGate-500E 1 Year Enterprise Protection (24x7 FortiCare plus Application Control, IPS, AMP, Web Filtering, Antispam, IoT Detection, Industrial Security, Security Rating, and FortiConverter Svc)
#FC-10-0500E-811-02-12
List Price: Liên hệ
FortiGate-500E 3 Year Enterprise Protection (24x7 FortiCare plus Application Control, IPS, AMP, Web Filtering, Antispam, IoT Detection, Industrial Security, Security Rating, and FortiConverter Svc)
#FC-10-0500E-811-02-36
List Price: Liên hệ
FortiGate-500E 5 Year Enterprise Protection (24x7 FortiCare plus Application Control, IPS, AMP, Web Filtering, Antispam, IoT Detection, Industrial Security, Security Rating, and FortiConverter Svc)
#FC-10-0500E-811-02-60
List Price: Liên hệ
FortiGate-500E 1 Year IoT Detection Service
FortiGate-500E 1 Year IoT Detection Service
#FC-10-0500E-231-02-12
List Price: Liên hệ
Fortinet FortiGate-500E FortiIPAM Cloud Service
FortiGate-500E 1 Year FortiIPAM Cloud Service
#FC-10-0500E-233-02-12
List Price: Liên hệ
Fortinet FortiGate-500E SD-WAN Orchestrator Entitlement License
Fortinet FortiGate-500E SD-WAN Orchestrator Entitlement License
#FC-10-0500E-319-02-12
List Price: Liên hệ
Unified Threat Protection (UTP) (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud)
FortiGate-500E 1 Year Unified Threat Protection (UTP) (24x7 FortiCare plus Application Control, IPS, AMP, Web Filtering and Antispam Service)
#FC-10-0500E-950-02-12
List Price: Liên hệ
FortiGate-500E 3 Year Unified Threat Protection (UTP) (24x7 FortiCare plus Application Control, IPS, AMP, Web Filtering and Antispam Service)
#FC-10-0500E-950-02-36
List Price: Liên hệ
FortiGate-500E 5 Year Unified Threat Protection (UTP) (24x7 FortiCare plus Application Control, IPS, AMP, Web Filtering and Antispam Service)
#FC-10-0500E-950-02-60
List Price: Liên hệ
FortiGate-500E Services
FortiGate-500E 1 Year FortiGuard Advanced Malware Protection (AMP) including Antivirus, Mobile Malware and FortiGate Cloud Sandbox Service
#FC-10-0500E-100-02-12
List Price: Liên hệ
FortiGate-500E 1 Year FortiGuard IPS Service
#FC-10-0500E-108-02-12
List Price: Liên hệ
FortiGate-500E 1 Year FortiGuard Web Filtering Service
#FC-10-0500E-112-02-12
List Price: Liên hệ
FortiGate-500E 1 Year FortiGuard Industrial Security Service
#FC-10-0500E-159-02-12
List Price: Liên hệ
FortiCloud Management, Analysis and 1 Year Log Retention
FortiGate-500E 1 Year FortiGate Cloud Management, Analysis and 1 Year Log Retention
#FC-10-0500E-131-02-12
List Price: Liên hệ
FortiGate-500E 3 Year FortiGate Cloud Management, Analysis and 1 Year Log Retention
#FC-10-0500E-131-02-36
List Price: Liên hệ
FortiGate-500E 5 Year FortiGate Cloud Management, Analysis and 1 Year Log Retention
#FC-10-0500E-131-02-60
List Price: Liên hệ
24x7 FortiCare Contract
FortiGate-500E 1 Year 24x7 FortiCare Contract
#FC-10-0500E-247-02-12
List Price: Liên hệ
FortiGate-500E 3 Year 24x7 FortiCare Contract
#FC-10-0500E-247-02-36
List Price: Liên hệ
FortiGate-500E 5 Year 24x7 FortiCare Contract
#FC-10-0500E-247-02-60
List Price: Liên hệ
Fortinet FortiGate-500E Threat Protection
FortiGate-500E 1 Year Advanced Threat Protection (24x7 FortiCare plus Application Control, IPS and AMP Service)
#FC-10-0500E-928-02-12
List Price: Liên hệ
FortiGate-500E 3 Year Advanced Threat Protection (24x7 FortiCare plus Application Control, IPS and AMP Service)
#FC-10-0500E-928-02-36
List Price: Liên hệ
FortiGate-500E 5 Year Advanced Threat Protection (24x7 FortiCare plus Application Control, IPS and AMP Service)
#FC-10-0500E-928-02-60
List Price: Liên hệ
Fortinet FortiGate-500E Fortiguard Security Audit Update Service
FortiGate-500E 1 Year FortiGuard Security Rating Service
#FC-10-0500E-175-02-12
List Price: Liên hệ
FortiConverter Service for FortiGate
FortiGate-500E 1 Year FortiConverter Service for one time configuration conversion service
#FC-10-0500E-189-02-12
List Price: Liên hệ
Fortinet FortiGate-500E SD-WAN Cloud Assisted Monitoring: Cloud-based SD-WAN Bandwidth & Quality Monitoring Service
FortiGate-500E 1 Year SD-WAN Cloud Assisted Monitoring: Cloud-based SD-WAN Bandwidth & Quality Monitoring Service
#FC-10-0500E-288-02-12
List Price: Liên hệ
Fortinet FortiGate-500E SD-WAN Overlay Controller VPN Service: Cloud-based SD-WAN VPN Overlay Service & Portal
FortiGate-500E 1 Year SD-WAN Overlay Controller VPN Service: Cloud-based SD-WAN VPN Overlay Service & Portal
#FC-10-0500E-289-02-12
List Price: Liên hệ
Fortinet FortiGate-500E FortiManager Cloud: Cloud-based Central Management & Orchestration Service
FortiGate-500E 1 Year FortiManager Cloud: Cloud-based Central Management & Orchestration Service
#FC-10-0500E-179-02-12
List Price: Liên hệ
Fortinet FortiGate-500E FortiAnalyzer Cloud: Base subscription for Cloud-based Events Management & Analytics Service
FortiGate-500E 1 Year FortiAnalyzer Cloud: Cloud-based Events and Security Log Monitoring including IOC Service
#FC-10-0500E-188-02-12
List Price: Liên hệ
Fortinet FortiGate-500E ASE FortiCare (24x7 plus Advanced Services Ticket Handling)
FortiGate-500E 1 Year ASE FortiCare (24x7 plus Advanced Services Ticket Handling)
#FC-10-0500E-284-02-12
List Price: Liên hệ
FortiGate-500E 3 Year ASE FortiCare (24x7 plus Advanced Services Ticket Handling)
#FC-10-0500E-284-02-36
List Price: Liên hệ
FortiGate-500E 5 Year ASE FortiCare (24x7 plus Advanced Services Ticket Handling)
#FC-10-0500E-284-02-60
List Price: Liên hệ
Bạn đang cần tư vấn về sản phẩm: FG-500E-BDL ?

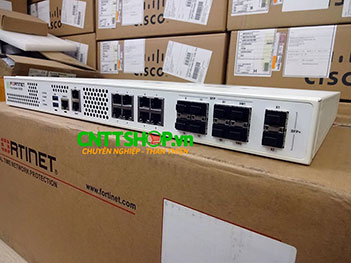

Firewall Fortinet FG-500E-BDL có 1 cổng USB, 1 Cổng Console, 2 cổng MGMT/HA chuẩn RJ45, 8 cổng RJ45 và 8 cổng SFP tốc độ Gigabit. 2 cổng SFP+ tốc độ 10Gig
Để add thêm Licensen 5 năm 24x7 cho Firewall FG-500E-BDL bạn cần mua License FC-10-0500E-950-02-60 bạn nhé
Chào anh!
Cảm ơn anh đã quan tâm đến sản phẩm đang được CNTTShop phân phối. CNTTShop chuyên phân phối thiết bị Fortinet chính hãng. Thiết bị tường lửa Fortinet FortiGate FG-500E-BDL có sẵn 1 nguồn, có thể chạy full tính năng với mô hình mạng chỉ có 45 user. CNTTShop sẽ liên hệ với anh để tư vấn tốt nhất.
Trân trọng./.
Chào chị,
Các cổng trên thiết bị FG-500E-BDL đều có thể cấu hình như các cổng WAN để sử dụng.
Thông tin đến chị.
Chào anh!
Cảm ơn anh đã quan tâm đến sản phẩm của CNTTShop. Thiết bị tường lửa FG-500E có sẵn 08 cổng RJ45. Anh vui lòng cung cấp email, số điện thoại hoặc liên hệ email kd@cnttshop.vn, hotline: 0906 051 599 để nhận báo giá thiết bị tường lửa Fortinet Fortigate FG-500E, FG-500E-BDL và được tư vấn tốt nhất.
Trân trọng./.
