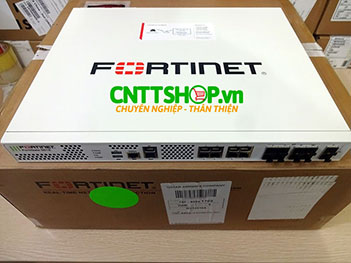

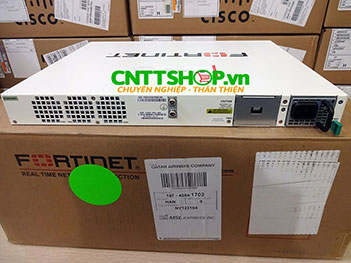

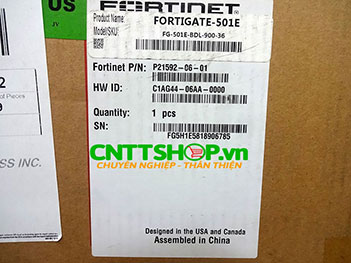

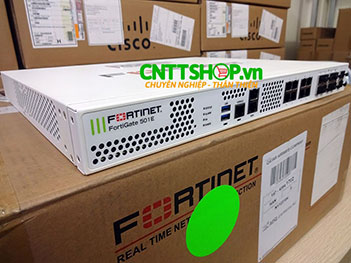

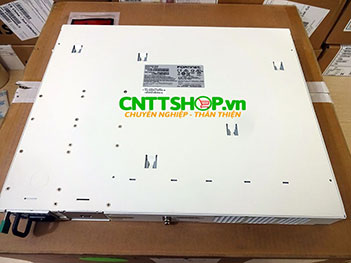

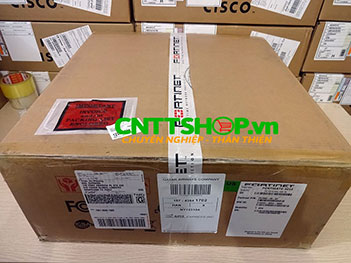

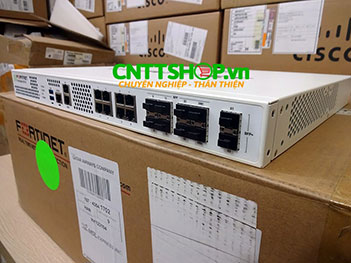

FG-501E Firewall Fortinet FortiGate 501E series
| FortiGate Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|
Firewall Fortinet FortiGate FG-501E cung cấp khả năng tường lửa thế hệ mới cho các doanh nghiệp vừa và lớn, với sự linh hoạt được triển khai tại các doanh nghiệp hoặc các chi nhánh.
FG-501E Datasheet
Tường lửa thế hệ mới Firewall FortiGate FG-501E giúp chống lại các mối đe dọa trên mạng với bộ xử lý bảo mật cung cấp hiệu suất cao, hiệu quả bảo mật và khả năng hiển thị chi tiết các vấn đề bảo mật.
Thông số kỹ thuật Firewall FortiGate FG-501E
| Interfaces and Modules |
| Hardware Accelerated 10 GE SFP+ Slots |
2 |
| Hardware Accelerated GE SFP Slots |
8 |
| Hardware Accelerated GE RJ45 Ports |
8 |
| GE RJ45 Management / HA Ports |
2 |
| USB Ports (Client / Server) |
2 |
| Console Port |
1 |
| Internal Storage |
2x 240 GB SSD |
| Included Transceivers |
2x SFP (SX 1 GE) |
| System Performance and Capacity |
| Firewall Throughput (1518 / 512 / 64 byte, UDP) |
36 / 36 / 32 Gbps |
| Firewall Latency (64 byte, UDP) |
2 μs |
| Firewall Throughput (Packet per Second) |
33 Mpps |
| Concurrent Sessions (TCP) |
8 Million |
| New Sessions/Sec (TCP) |
300,000 |
| Firewall Policies |
10,000 |
| IPsec VPN Throughput (512 byte) |
20 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels |
2000 |
| Client-to-Gateway IPsec VPN Tunnels |
50,000 |
| SSL-VPN Throughput |
5 Gbps |
| Concurrent SSL-VPN Users |
500 |
| SSL Inspection Throughput (IPS, HTTP) |
6.8 Gbps |
| Application Control Throughput (HTTP 64K) |
14 Gbps |
| CAPWAP Throughput (1444 byte, UDP) |
18 Gbps |
| Virtual Domains (Default / Maximum) |
10 / 10 |
| Maximum Number of Switches Supported |
48 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) |
512 / 256 |
| Maximum Number of FortiTokens |
1,000 |
| Maximum Number of Registered FortiClients |
2,000 |
| High Availability Configurations |
Active / Active, Active / Passive, Clustering |
| System Performance — Optimal Traffic Mix |
| IPS Throughput |
11 Gbps |
| System Performance — Enterprise Traffic Mix |
| IPS Throughput |
5.2 Gbps |
| NGFW Throughput |
5 Gbps |
| Threat Protection Throughput |
4.7 Gbps |
| Dimensions and Power |
| Height x Width x Length (inches) |
1.75 x 17.0 x 15.0 |
| Height x Width x Length (mm) |
44.45 x 432 x 380 |
| Weight |
16.6 lbs (7.5 kg) |
| Form Factor |
1 RU |
| AC Power Supply |
100–240V AC, 60–50 Hz |
| DC Power Supply |
- |
| Power Consumption (Average / Maximum) |
105 W / 200 W |
| Heat Dissipation |
613 BTU/h |
| Redundant Power Supplies |
Yes, Hot Swappable |
| Operating Environment and Certifications |
| Operating Temperature |
32–104°F (0–40°C) |
| Storage Temperature |
-31–158°F (-35–70°C) |
| Humidity |
10–90% non-condensing |
| Noise Level |
43 dBA |
| Operating Altitude |
Up to 7,400 ft (2,250 m) |
| Compliance |
FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB |
| Certifications |
ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6 |
Các tùy chọn Option, License cho FG-501E
Fortinet FortiGate-501E 360 Protection (ASE FortiCare plus App Ctrl, IPS, AV, Web Filtering, AS, FSA Cloud, Security Rating, IoT Detection, SD-WAN Orchestrator/Cloud Monitoring/Overlay Ctrl VPN, FMG/FAZ/IPAM Cloud, Industrial Security and FortiConverter S
FortiGate-501E 1 Year 360 Protection (ASE FortiCare plus App Ctrl, IPS, AMP, Web Filtering, AS, Security Rating, IoT Detection, SD-WAN Orchestrator/Cloud Monitoring/Overlay Ctrl VPN, FMG/FAZ/IPAM Cloud, Industrial Security and FortiConverter Svc)
#FC-10-0501E-817-02-12
List Price: Liên hệ
FortiGate-501E 3 Year 360 Protection (ASE FortiCare plus App Ctrl, IPS, AMP, Web Filtering, AS, Security Rating, IoT Detection, SD-WAN Orchestrator/Cloud Monitoring/Overlay Ctrl VPN, FMG/FAZ/IPAM Cloud, Industrial Security and FortiConverter Svc)
#FC-10-0501E-817-02-36
List Price: Liên hệ
FortiGate-501E 5 Year 360 Protection (ASE FortiCare plus App Ctrl, IPS, AMP, Web Filtering, AS, Security Rating, IoT Detection, SD-WAN Orchestrator/Cloud Monitoring/Overlay Ctrl VPN, FMG/FAZ/IPAM Cloud, Industrial Security and FortiConverter Svc)
#FC-10-0501E-817-02-60
List Price: Liên hệ
Fortinet FortiGate-501E Enterprise Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering, Antispam, FortiSandbox Cloud, IoT Detection, Industrial Security, Security Rating, and FortiConverter Svc)
FortiGate-501E 1 Year Enterprise Protection (24x7 FortiCare plus Application Control, IPS, AMP, Web Filtering, Antispam, IoT Detection, Industrial Security, Security Rating, and FortiConverter Svc)
#FC-10-0501E-811-02-12
List Price: Liên hệ
FortiGate-501E 3 Year Enterprise Protection (24x7 FortiCare plus Application Control, IPS, AMP, Web Filtering, Antispam, IoT Detection, Industrial Security, Security Rating, and FortiConverter Svc)
#FC-10-0501E-811-02-36
List Price: Liên hệ
FortiGate-501E 5 Year Enterprise Protection (24x7 FortiCare plus Application Control, IPS, AMP, Web Filtering, Antispam, IoT Detection, Industrial Security, Security Rating, and FortiConverter Svc)
#FC-10-0501E-811-02-60
List Price: Liên hệ
Fortinet FortiGate-501E IoT Detection Service
FortiGate-501E 1 Year IoT Detection Service
#FC-10-0501E-231-02-12
List Price: Liên hệ
Fortinet FortiGate-501E FortiIPAM Cloud Service
FortiGate-501E 1 Year FortiIPAM Cloud Service
#FC-10-0501E-233-02-12
List Price: Liên hệ
Fortinet FortiGate-501E SD-WAN Orchestrator Entitlement License
FortiGate-501E 1 Year SD-WAN Orchestrator Entitlement License
#FC-10-0501E-319-02-12
List Price: Liên hệ
Unified Threat Protection (UTP) (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud)
FortiGate-501E 1 Year Unified Threat Protection (UTP) (24x7 FortiCare plus Application Control, IPS, AMP, Web Filtering and Antispam Service)
#FC-10-0501E-950-02-12
List Price: Liên hệ
FortiGate-501E 3 Year Unified Threat Protection (UTP) (24x7 FortiCare plus Application Control, IPS, AMP, Web Filtering and Antispam Service)
#FC-10-0501E-950-02-36
List Price: Liên hệ
FortiGate-501E 5 Year Unified Threat Protection (UTP) (24x7 FortiCare plus Application Control, IPS, AMP, Web Filtering and Antispam Service)
#FC-10-0501E-950-02-60
List Price: Liên hệ
FortiGate-501E Services
FortiGate-501E 1 Year FortiGuard Advanced Malware Protection (AMP) including Antivirus, Mobile Malware and FortiGate Cloud Sandbox Service
#FC-10-0501E-100-02-12
List Price: Liên hệ
FortiGate-501E 1 Year FortiGuard IPS Service
#FC-10-0501E-108-02-12
List Price: Liên hệ
FortiGate-501E 1 Year FortiGuard Web Filtering Service
#FC-10-0501E-112-02-12
List Price: Liên hệ
FortiGate-501E 1 Year FortiGuard Industrial Security Service
#FC-10-0501E-159-02-12
List Price: Liên hệ
FortiCloud Management, Analysis and 1 Year Log Retention
FortiGate-501E 1 Year FortiGate Cloud Management, Analysis and 1 Year Log Retention
#FC-10-0501E-131-02-12
List Price: Liên hệ
FortiGate-501E 3 Year FortiGate Cloud Management, Analysis and 1 Year Log Retention
#FC-10-0501E-131-02-36
List Price: Liên hệ
FortiGate-501E 5 Year FortiGate Cloud Management, Analysis and 1 Year Log Retention
#FC-10-0501E-131-02-60
List Price: Liên hệ
24x7 FortiCare Contract
FortiGate-501E 1 Year 24x7 FortiCare Contract
#FC-10-0501E-247-02-12
List Price: Liên hệ
FortiGate-501E 3 Year 24x7 FortiCare Contract
#FC-10-0501E-247-02-36
List Price: Liên hệ
FortiGate-501E 5 Year 24x7 FortiCare Contract
#FC-10-0501E-247-02-60
List Price: Liên hệ
Fortinet FortiGate-501E Threat Protection
FortiGate-501E 1 Year Advanced Threat Protection (24x7 FortiCare plus Application Control, IPS and AMP Service)
#FC-10-0501E-928-02-12
List Price: Liên hệ
FortiGate-501E 3 Year Advanced Threat Protection (24x7 FortiCare plus Application Control, IPS and AMP Service)
#FC-10-0501E-928-02-36
List Price: Liên hệ
FortiGate-501E 5 Year Advanced Threat Protection (24x7 FortiCare plus Application Control, IPS and AMP Service)
#FC-10-0501E-928-02-60
List Price: Liên hệ
Fortinet FortiGate-501E Fortiguard Security Audit Update Service
FortiGate-501E 1 Year FortiGuard Security Rating Service
#FC-10-0501E-175-02-12
List Price: Liên hệ
FortiConverter Service for FortiGate
FortiGate-501E 1 Year FortiConverter Service for one time configuration conversion service
#FC-10-0501E-189-02-12
List Price: Liên hệ
Fortinet FortiGate-501E SD-WAN Cloud Assisted Monitoring: Cloud-based SD-WAN Bandwidth & Quality Monitoring Service
FortiGate-501E 1 Year SD-WAN Cloud Assisted Monitoring: Cloud-based SD-WAN Bandwidth & Quality Monitoring Service
#FC-10-0501E-288-02-12
List Price: Liên hệ
Fortinet FortiGate-501E SD-WAN Overlay Controller VPN Service: Cloud-based SD-WAN VPN Overlay Service & Portal
FortiGate-501E 1 Year SD-WAN Overlay Controller VPN Service: Cloud-based SD-WAN VPN Overlay Service & Portal
#FC-10-0501E-289-02-12
List Price: Liên hệ
Fortinet FortiGate-501E FortiManager Cloud: Cloud-based Central Management & Orchestration Service
FortiGate-501E 1 Year FortiManager Cloud: Cloud-based Central Management & Orchestration Service
#FC-10-0501E-179-02-12
List Price: Liên hệ
Fortinet FortiGate-501E FortiAnalyzer Cloud: Base subscription for Cloud-based Events Management & Analytics Service
FortiGate-501E 1 Year FortiAnalyzer Cloud: Cloud-based Events and Security Log Monitoring including IOC Service
#FC-10-0501E-188-02-12
List Price: Liên hệ
Fortinet FortiGate-501E ASE FortiCare (24x7 plus Advanced Services Ticket Handling)
FortiGate-501E 3 Year ASE FortiCare (24x7 plus Advanced Services Ticket Handling)
#FC-10-0501E-284-02-36
List Price: Liên hệ
FortiGate-501E 1 Year ASE FortiCare (24x7 plus Advanced Services Ticket Handling)
#FC-10-0501E-284-02-12
List Price: Liên hệ
FortiGate-501E 5 Year ASE FortiCare (24x7 plus Advanced Services Ticket Handling)
#FC-10-0501E-284-02-60
List Price: Liên hệ
