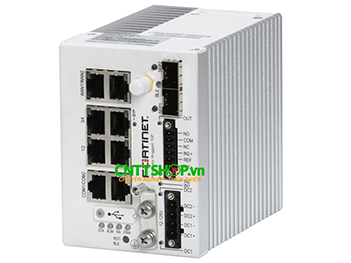

| Datasheet Fortigate FGR-70F |
| Specifications |
FGR-70F |
| Interfaces and Modules |
| GE RJ45 Interfaces |
6 |
| Bypass GE RJ45 Port Pair |
PORT3 and PORT4 |
| Dedicated GE SFP Slots |
2 |
| GE RJ45/SFP Shared Media Pairs |
No |
| Serial Interface |
1 RJ45 |
| USB (Client / Server) |
1 |
| RJ45 Console Port |
1 |
| Cellular Modem |
No |
| Bluetooth Low Energy (BLE) |
Yes |
| Transceivers Included |
No |
| Processor |
FortiSoC4 |
| Trusted Platform Module (TPM) |
Yes |
| Digital I/O Module (DIO) |
Yes |
| System Performance and Capacity |
IPv4 Firewall Throughput
(1518* / 512 / 64 byte UDP
packets) |
8/8/8 Gbps |
| Firewall Latency (64 byte, UDP) |
6.71 μs |
Firewall Throughput
(Packets Per Second) |
12 Mpps |
| Concurrent Sessions (TCP) |
1 M |
| New Sessions/Second (TCP) |
35 000 |
| Firewall Policies |
5000 |
| IPsec VPN Throughput (512 byte) 1 |
6.5 Gbps |
Gateway-to-Gateway IPsec VPN
Tunnels |
200 |
Client-to-Gateway IPsec VPN
Tunnels |
500 |
| SSL-VPN Throughput |
450 Mbps |
Concurrent SSL-VPN Users
(Recommended Maximum) |
100 |
SSL Inspection Throughput
(IPS, avg. HTTPS) 3 |
500 Mbps |
SSL Inspection CPS
(IPS, avg. HTTPS) 3 |
380 |
SSL Inspection Concurrent
Session (IPS, avg. HTTPS) 3 |
90 000 |
Application Control Throughput
(HTTP 64K) |
1.1 Gbps |
Virtual Domains
(Default / Maximum) |
45209 |
Maximum Number of FortiAPs
(Total / Tunnel) |
64 / 32 |
| Maximum Number of FortiTokens |
500 |
Maximum Number of
FortiSwitches |
16 |
| High Availability Configurations |
Active-Active, Active-Passive,
Clustering |
| FGR-60F |
FGR-70F-3G4G |
| System Performance — Enterprise Traffic Mix |
| IPS Throughput 2 |
975 Mbps |
| NGFW Throughput 2, 4 |
950 Mbps |
| Threat Protection Throughput 2, 5 |
580 Mbps |
| Dimensions and Power |
| Height x Width x Length (inches) |
4.8 x 3.2 x 4.4 |
| Height x Width x Length (mm) |
122 x 80.5 x 111 |
| Weight |
2.87 lbs (1.3 kg) |
| Form Factor |
DIN-rail |
| Antennae (Height x Width) |
| IP Rating |
IP40 |
| Power Supply6, 7, 8 |
Redundant dual inputs, 2 pins per
terminal block, supports negative
(+12V to +125V DC) and positive
ground (-12V to -125V DC) power
sources, DC cables are not included. |
Power Consumption
(Average / Maximum) |
16 W /18 W |
| Maximum Current |
12V DC / 1.5A |
| Heat Dissipation |
62 BTU/h |
| Operating Environment |
| Operating Temperature |
-40°–167°F (-40°–75°C) |
| Storage Temperature |
-40°–167°F (-40°–75°C) |
| Humidity |
5%–95% non-condensing |
| Operating Altitude |
Up to 10 000 ft (3048 m) |
