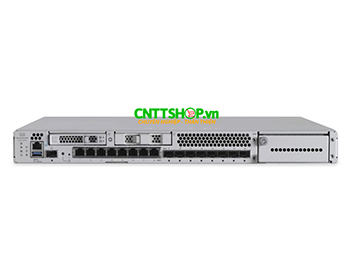

| Datasheet Firewall FPR3110-NGFW-K9 |
| Hardware |
| Interfaces |
8 x RJ45, 8 x 1/10G SFP+ |
| Optional interfaces |
10G SFP+ |
| Maximum number of interfaces |
Up to 24 total Ethernet ports, (8x1G RJ-45, 8x1/10G SFP, and network module) |
| Integrated network management ports |
1x 1/10G SFP |
| Serial port |
1x RJ-45 console |
| USB |
1x USB 3.0 Type-A (900mA) |
| Storage |
1x 900 GB, 1x spare slot |
| System Performance |
| Throughput: FW + AVC (1024B) |
17.0 Gbps |
| Throughput: FW + AVC + IPS (1024B) |
17.0 Gbps |
| Maximum new connections per second, with AVC |
130,000 |
| TLS |
4.8 Gbps |
| Throughput: IPS (1024B) |
17.0 Gbps |
IPSec VPN Throughput
(1024B TCP w/Fastpath) |
8 Gbps |
Projected IPSec VPN Throughput
(1024B TCP w/Fastpath) with VPN Offload (FTD 7.2) |
11.0 Gbps |
| Maximum VPN Peers |
3,000 |
| Local On-device Management |
Yes |
| Centralized management |
Centralized configuration, logging, monitoring, and reporting are performed by the Firewall Management Center or alternatively in the cloud with Cisco Defense Orchestrator |
| Application Visibility and Control (AVC) |
Standard, supporting more than 4000 applications, as well as geolocations, users, and websites |
| AVC: OpenAppID support for custom, open source, application detector |
Standard |
| Cisco Security Intelligence |
Standard, with IP, URL, and DNS threat intelligence |
| Cisco Secure IPS |
Available; can passively detect endpoints and infrastructure for threat correlation and Indicators of Compromise (IoC) intelligence |
| Cisco Malware Defense |
Available; enables detection, blocking, tracking, analysis, and containment of targeted and persistent malware, addressing the attack continuum both during and after attacks. Integrated threat correlation with Cisco Secure Endpoint is also optionally available |
| Cisco Secure Malware Analytics |
Available |
| URL Filtering: number of categories |
More than 80 |
| URL Filtering: number of URLs categorized |
More than 280 million |
| Third-party and open-source ecosystem |
Third-party and open-source ecosyste |
| High availability and clustering |
Active/active, Active/standby. Cisco Secure Firewall 3100 Series allows clustering of up to 8 chassis |
| Cisco Trust Anchor Technologies |
Secure Firewall 3100 Series platforms include Trust Anchor Technologies for supply chain and software image assurance. Please see the section below for additional details |
| Dimensions |
| H x W x D |
1.75 x 17 x 20 in.
(4.4 x 43.3 x 50.8 cm)
|
| Weight |
23 lb (10.5 kg) 1 x power supplies, 1 x NM, fan module, 1x SSD |
| Form factor (rack units) |
1RU |
| Rack mountable |
Yes. Fixed mount brackets optional.
(2- post). Mount rails included (4-post EIA- 310-D rack)
|
| Power |
| Power supply configuration |
Single 400W AC, Dual 400W AC optional.
Single/Dual 400W DC optional
|
| AC input voltage |
100 to 240V AC |
| AC maximum input current |
< 6A at 100V |
| AC maximum output power |
400W |
| AC frequency |
50 to 60 Hz |
| Redundancy |
1+1 AC or DC with dual supplies |
| Fans |
2 hot-swappable fan modules (with 2 fans each) |
| Noise |
65 dBA@ 25C
74 dBA maximum
|
| Environment |
| Temperature: operating |
32 to 104°F
(0 to 40°C) |
| Temperature: nonoperating |
-4 to 149°F
(-20 to 65°C)
|
| Humidity: operating |
10 to 85%
noncondensing
|
| Humidity: nonoperating |
5 to 95% noncondensing |
| Altitude: operating |
10,000 ft (max) |
| Altitude: nonoperating |
40,000 ft (max) |
