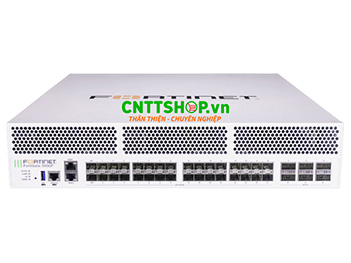

| Datasheet Fortigate 3500F |
| Specifications |
| Interfaces and Modules |
Hardware Accelerated 100 GE QSFP28 /
40 GE QSFP+ Slots |
6 |
Hardware Accelerated 25 GE SFP28 /
10 GE SFP+ / GE SFP Slots |
32 |
| 10GE/ GE RJ45 Management Ports |
2 |
| USB Ports (Client / Server) |
1/1 |
| Console Port |
1 |
| Onboard Storage |
- |
| Trusted Platform Module (TPM) |
yes |
| Included Transceivers |
2x SFP+ (SR 10 GE) |
| System Performance — Enterprise Traffic Mix |
| IPS Throughput |
72 Gbps |
| NGFW Throughput |
65 Gbps |
| Threat Protection Throughput |
63 Gbps |
| System Performance and Capacity |
IPv4 Firewall Throughput
(1518 / 512 / 64 byte, UDP) |
595 / 590 / 420 Gbps |
IPv6 Firewall Throughput
(1518 / 512 / 86 byte, UDP) |
595 / 590 / 420 Gbps |
| Firewall Latency (64 byte, UDP) |
2.98 μs |
| Firewall Throughput (Packet per Second) |
630 Mpps |
| Concurrent Sessions (TCP) |
140 Million / 348 Million |
| New Sessions/Second (TCP) |
1 Million / 5 Million |
| Firewall Policies |
200 000 |
| IPsec VPN Throughput (512 byte) |
165 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels |
40 000 |
| Client-to-Gateway IPsec VPN Tunnels |
200 000 |
| SSL-VPN Throughput |
16 Gbps |
Concurrent SSL-VPN Users
(Recommended Maximum, Tunnel Mode) |
30 000 |
SSL Inspection Throughput
(IPS, avg. HTTPS) |
63 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) |
60 000 |
SSL Inspection Concurrent Session
(IPS, avg. HTTPS) |
15 Million |
Application Control Throughput
(HTTP 64K) |
135 Gbps |
| CAPWAP Throughput (HTTP 64K) |
65 Gbps |
| Virtual Domains (Default / Maximum) |
10 / 500 |
Maximum Number of FortiSwitches
Supported |
300 |
Maximum Number of FortiAPs (Total /
Tunnel) |
4096 / 2048 |
| Maximum Number of FortiTokens |
20 000 |
| High Availability Configurations |
Active-Active, Active-Passive, Clustering |
| Dimensions and Power |
| Height x Width x Length (inches) |
3.5 x 17.4 x 21.9 |
| Height x Width x Length (mm) |
89 x 443 x 556 |
| Weight |
43.8 lbs (19.9 kg) |
Form Factor
(supports EIA/non-EIA standards) |
Rack Mount, 2 RU |
| AC Power Supply |
100–240V AC, 50/60 Hz |
Power Consumption
(Average / Maximum) |
760 W / 1174 W |
| AC Current (Maximum) |
12A@120V, 9A@240V |
| Heat Dissipation |
4006 BTU/h |
| Redundant Power Supplies |
Yes, Hot Swappable |
| Operating Environment and Certifications |
| Operating Temperature |
32–104°F (0–40°C) |
| Storage Temperature |
-31–158°F (-35–70°C) |
| Humidity |
20–90% non-condensing |
| Noise Level |
53.5 dBA |
| Forced Airflow |
Front to Back |
| Operating Altitude |
Up to 7400 ft (2250 m) |
| Compliance |
FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
| Certifications |
ICSA Labs Firewall, IPsec, IPS, Antivirus,
SSL-VPN, USGv6/IPv6 |
