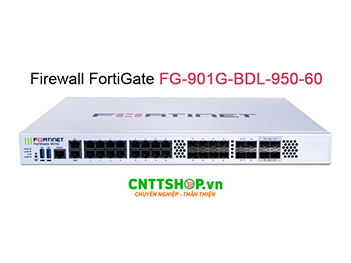

| DataSheet FortiGate FG-901G-BDL-950-60 |
| Specifications |
| Interfaces and Modules |
Hardware Accelerated 25 GE SFP28 / 10 GE
SFP+ Ultra Low Latency Slots |
4 |
Hardware Accelerated 10 GE SFP+ / GE SFP
Slots |
4 |
| Hardware Accelerated GE SFP Slots |
8 |
| Hardware Accelerated GE RJ45 Slots |
16 |
| 2.5 GE / GE HA Port |
1 |
| GE Management Port |
1 |
| USB Ports (Client / Server) |
2/2 |
| Console Port |
1 |
| Onboard Storage |
2 x 480GB SSD |
| Trusted Platform Module (TPM) |
yes |
| Included Transceivers |
2x SFP SX |
| System Performance — Enterprise Traffic Mix |
| PS Throughput |
26 Gbps |
| NGFW Throughput |
22 Gbps |
| Threat Protection Throughput |
20 Gbps |
| System Performance and Capacity |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) |
164 / 163 / 153 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) |
164 / 163 / 153 Gbps |
| Firewall Latency (64 byte, UDP) |
3.78 / 2.5 μs |
| Firewall Throughput (Packet per Second) |
229.5 Mpps |
| Concurrent Sessions (TCP) |
16 Million |
| New Sessions/Second (TCP) |
720 000 |
| Firewall Policies |
10 000 |
| IPsec VPN Throughput (512 byte) |
55 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels |
2000 |
| Client-to-Gateway IPsec VPN Tunnels |
50 000 |
| SSL-VPN Throughput |
10 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) |
10 000 |
| SSL Inspection Throughput (IPS, avg HTTPS) |
16.7 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) |
18 000 |
| SSL Inspection Concurrent Session (IPS, avg HTTPS) |
1.6 Million |
| Application Control Throughput (HTTP 64K) |
74.8 Gbps |
| CAPWAP Throughput (HTTP 64K) |
70 Gbps |
| Virtual Domains (Default / Maximum) |
10 / 10 |
| Maximum Number of FortiSwitches Supported |
96 |
| Maximum Number of FortiAPs (Total / Tunnel) |
1024 / 512 |
| Maximum Number of FortiTokens |
5000 |
| High Availability Configurations |
Active-Active, Active-Passive, Clustering |
| Dimensions and Power |
| Height x Width x Length (inches) |
1.5 x 17.0 x 15.0 |
| Height x Width x Length (mm) |
44.45 x 432 x 380 |
| Weight |
16.53 lbs (7.5 kg) |
| Form Factor (supports EIA/non-EIA standards) |
Rack Mount, 1RU |
| AC Power Supply |
AC Power Supply |
| AC Current (Maximum) |
6A@100VAC |
| Power Consumption (Average / Maximum) |
144 W / 264 W |
| Heat Dissipation |
902 BTU/h |
| Power Supply Efficiency Rating |
80Plus Compliant |
| Redundant Power Supplies (Hot Swappable) |
Yes (comes with 2PSU default) |
| Operating Environment and Certifications |
| Operating Temperature |
32°–113°F (0°–45°C) |
| Storage Temperature |
-31°–158°F (-35°–70°C) |
| Humidity |
10%–90% non-condensing |
| Noise Level |
58 dBA |
| Forced Airflow |
Side and Front to Back |
| Operating Altitude |
Up to 10 000 ft (3048 m) |
| Compliance |
FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
| Certifications |
USGv6/IPv6 |
| Services |
5 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP) |
