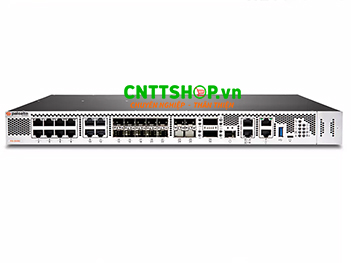

| Datasheet Firewall Palo Alto PAN-PA-3440-AC |
| Firewall throughput (HTTP/appmix) |
30.2/24 Gbps |
Threat Prevention throughput (HTTP/
appmix) |
11.0/12.8 Gbps |
| IPsec VPN throughput |
14.5 Gbps |
| Max sessions |
3M |
| New sessions per second |
268,000 |
| Virtual systems (base/max) |
1/11 |
| Interface Modes |
L2, L3, tap, virtual wire (transparent mode) |
| Routing |
OSPFv2/v3 with graceful restart, BGP with graceful restart, RIP, static routing
Policy-based forwarding
Point-to-point protocol over Ethernet (PPPoE)
Multicast: PIM-SM, PIM-SSM, IGMP v1, v2, and v3
Bidirectional Forwarding Detection (BFD) |
| IPsec VPN |
Key exchange: manual key, IKEv1, and IKEv2 (pre-shared key, certificate-based authentication)
Encryption: 3DES, AES (128-bit, 192-bit, 256-bit)
Authentication: MD5, SHA-1, SHA-256, SHA-384, SHA-512 |
| VLANs |
802.1Q VLAN tags per device/per interface: 4,094/4,094
Aggregate interfaces (802.3ad), LACP |
| Network Address Translation |
NAT modes (IPv4): static IP, dynamic IP, dynamic IP and port (port address translation)
NAT64, NPTv6
Additional NAT features: dynamic IP reservation, tunable dynamic IP and port oversubscription |
| High Availability |
Modes: active/active, active/passive, HA clustering
Failure detection: path monitoring, interface monitoring |
| Mobile Network Infrastructure |
5G Security
5G MEC (multi-access edge computing) Security
GTP Security
SCTP Security |
| Hardware Specifications |
| Interface |
12x 1G/2.5G/5G/10G
10x 1G/10G SFP/SFP+
4x 25G SFP28
2x 40G/100G QSFP/QSFP28 |
| Management I/O |
1x 100/1000 out-of-band management port
1x 100/1000 high availability (2), 10G SFP+ high availability
1x RJ-45 console port (1), Micro USB ( |
| Storage Capacity |
480 GB SSD |
| Power Supply (Avg/Max Power Consumption) |
Redundant 450-watt AC (155W/190W) |
| Max BTU/hr |
650 |
| Input Voltage Frequency |
AC: 100–240 VAC (50–60Hz) |
| Max Current Consumption |
AC: 1.9 A @ 100 VAC, 0.8 A @ 240 VAC |
| Mean Time Between Failure (MTBF) |
22 years |
| Rack Mount Dimensions |
1U, 19” standard rack 14.15” x 17.15” x 1.70” |
| Weight (Standalone Device/As Shipped) |
15.5 lbs / 25 lbs |
| Safety |
cTUVus, CB |
| EMI |
FCC Class A, CE Class A, VCCI Class A |
|
Certifications
|
See paloaltonetworks.com/company/certifications.html |
| Environment |
| Operating temperature: |
32° to 122° F, 0° to 50° C |
| Non-operating temperature: |
-4° to 158° F, -20° to 70° C |
| Humidity tolerance: |
10% to 90% |
| Maximum altitude: |
10,000 ft/3,048 m |
| Airflow: |
front to back |
