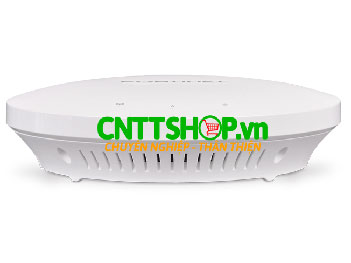

FAP-221E-V FortiAP 221E-V Indoor Wireless Access Point, Vietnam, Thailand reg domain.
Part Number |
:
|
List Price |
: $
|
Giá bán |
:
|
Bảo hành |
:
|
Made In |
:
|
Stock |
:
|
Mô tả tổng quan
FortiAP FAP-221E-V được quản lý tập trung bởi bộ điều khiển WLAN tích hợp của bất kỳ thiết bị bảo mật FortiGate nào chạy hệ điều hành FortiOS hoặc có thể được quản lý thông qua dịch vụ quản lý FortiCloud miễn phí.
Fortinet FAP-221E-V được thiết kế theo tiêu chuẩn chống nước IP67 và có khả năng chịu được nhiệt độ cao, FAP-221E-V thích hợp cho việc triển khai trong điều kiện khắc nghiệt hay lắp ngoài trời. FAP-221E-V sử dụng ăng-ten bên ngoài chất lượng cao cho việc triển khai cầu nối hoặc mạng lưới quan trọng và đường dài.
FortiAP FAP-221E Datasheet
Với sự tích hợp chức năng điều khiển không dây (wireless controller) vào các thiết bị FortiGate dẫn đầu thị trường, FortiAP FAP-221E-V hay các thiết bị AP khác của Fortinet đều có thể được quản lý tập trung. Điều này cho phép bạn dễ dàng triển khai, quản lý bảo mật có dây và không dây từ bảng điều khiển của 1 thiết bị duy nhất và bảo vệ mạng của bạn khỏi các mối đe dọa bảo mật mới nhất.

Thông số kỹ thuật FortiAP FAP-221E-V
Hardware |
Hardware Type |
Indoor |
Number of Radios |
2 |
Number of Antennas |
4 Internal |
Peak Antenna Gain |
4 dBi for 2.4 GHz, 5 dBi for 5 GHz |
Frequency Bands (GHz) |
2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725,
5.725–5.850 |
Frequency of Radio 1 |
2.4 GHz b/g/n (2x2:2 stream)
20/40 MHz (256 QAM) |
Frequency of Radio 2 |
5 GHz a/n/ac (2x2:2 stream)
20/40/80 MHz (256 QAM) |
Maximum Data Rate |
Radio 1: up to 400 Mbps
Radio 2: up to 867 Mbps |
Ethernet Ports |
1x GE RJ45 |
USB Port |
1x Type A |
Serial Console Port |
- |
Power over Ethernet (PoE) |
IEEE 802.3af |
Simultaneous SSIDs |
16 (14 if background
scanning enabled) |
EAP Type(s) |
EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2,
PEAPv1/EAP-GTC EAP-SIM, EAP-AKA, EAP-FAST |
User/Device Authentication |
WPA™ and WPA2™ with 802.1x or Preshared key,
WEP and Web Captive Portal, MAC blacklist & whitelist |
Maximum Tx Power |
25 dBm (316 mW) @ 2.4 GHz*
23 dBm (200 mW) @ 5 GHz |
Physical Security |
Kensington Lock |
IEEE Specifications |
802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i,
802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.1x, 802.11ac,
802.3af, 802.3az |
FortiPresence Capable |
Yes |
Wireless Mesh Capable |
Yes |
Per Radio Client Capacity |
Up to 512 |
reg domain |
Vietnam, Thailand |
Advanced 802.11 Features |
802.11ac Wave 2 MU-MIMO |
Yes |
Transmit Beam Forming
(TxBF) |
Yes |
Low-Density Parity Check
(LDPC) Encoding |
Yes |
Maximum Likelihood
Demodulation (MLD) |
Yes |
Maximum Ratio Combining
(MRC) |
Yes |
802.11ac 20/40/80 MHz
Channel |
Yes |
A-MPDU and A-MSDU
Packet Aggregation |
Yes |
MIMO Power Save |
Yes |
Short Guard Interval |
Yes |
WME Multimedia Extensions |
Yes |
Wireless Monitoring Capabilities |
Frequencies Scanned |
2.4 and 5 GHz |
Background Scan with Client
Access on 2.4 and 5 GHz |
Yes |
Full-time Scan as
Dedicated Monitor |
Yes |
Full-time Scan with Client
Access on 5G GHz |
No in AP mode |
Dimensions |
Diameter x Height |
6.3 x 1.85 inches
(160 x 47 mm) |
Weight |
1.1 lb (0.5 kg) |
Package (shipping) Weight |
4.95 lb (2.2 kg) |
Mounting Options |
Ceiling, T-Rail and wall |
Included Accessories |
Ceiling, T-Rail and Wall mount kit
(AC power adapter sold seperately |
Environment |
Power Supply |
Adapter Input: 100–240V,
50/60Hz, 0.9A
Maximum Output: 12V DC, 3A |
Power Consumption (Avg.) |
10.25 W |
Power Consumption (Max.) |
12.36 W |
Humidity |
5–90% non condensing |
Operating Temperature |
-4–122°F (-20–50°C) |
Storage Temperature |
-40–158°F (-40–70°C) |
Directives |
Low Voltage Directive • RoHS |
UL2043 Plenum Material |
Yes |
Mean Time Between Failures |
>30 Years |
Certifications |
WiFi Alliance Certified |
Yes |
DFS Certified for Europe |
Yes |
Hotspot 2.0 Certified |
Yes |
License sử dụng cho FortiAP FAP-221E-V
SKU |
Description |
FC-10-PE221-311-02-DD |
8x5 FortiCare Contract |
FC-10-PE221-247-02-DD |
24x7 FortiCare Contract |
FAP-FPL-PRO |
FortiPlanner Wireless AP Deployment Planning Utility — Pro upgrade license unlocks FortiPlanner Lite (free version) to support more than 50 Access Points and includes site survey tool. Requires Windows 7. |
Bạn đang cần tư vấn về sản phẩm: FAP-221E-V ?
Chào bạn, switch fortinet FS-124E-POE có thể cấp nguồn tối đa cho 12 bộ phát wifi Fortinet FAP-221E-V.
bộ phát wifi Fortinet 221E FAP-221E-V FortiAP 221E-V dùng nguồn POE IEEE 802.3af với mức tiêu thụ max 12.36 W
Bộ phát wifi Fortinet 221E có khả năng phủ sóng khoảng 20-50m trong thực tế, tùy vào điều kiện và môi trường sử dụng ạ.
Chào anh/chị, bộ phát wifi Fortinet 221E-V không cần thêm license gì để hoạt động với Fortigate FG-60E ạ.
Bộ phát wifi Fortinet FAP-221E-V có khả năng chịu tải tối đa 1024 client theo thông số của nhà sản xuất đưa ra.
