| Hardware |
| Hardware Type |
Ourdoor IP66 rated |
| Number of Radios |
2 |
| Number of Antennas |
4 external RP-SMA |
| Peak Antenna Gain |
5 dBi for 2.4 GHz, 5 dBi for 5 GHz |
| Frequency Bands (GHz) |
2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 |
| Frequency of Radio 1 |
5 GHz a/n |
| Frequency of Radio 2 |
2.4 GHz b/g/n |
| Throughput |
Radio 1: Up to 300 Mbps, Radio 2: Up to 300 Mbps |
| Tx/Rx Streams |
2x2 MIMO 2 spatial stream |
| Ethernet Ports |
1x GE RJ45 |
| USB Port |
- |
| Serial Console Port |
- |
| Power over Ethernet (PoE) |
IEEE 802.3af |
| WME Multimedia Extensions |
Yes (4 priority queues for voice, video, data and background traffic) |
| Simultaneous SSIDs |
16 (14 if background scanning enabled) |
| EAP Type(s) |
EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC EAP-SIM, EAP-AKA, EAP-FAST |
| User/Device Authentication |
WPA™ and WPA2™ with 802.1x or Preshared key, WEP and Web Captive Portal, MAC blacklist & whitelist |
| Maximum Tx Power |
20 dBm (100 mW) |
| Physical Security |
Concrete and pole mount |
| Mean Time Between Failures |
> 10 years |
| IEEE Specifications |
802.11a, 802.11b, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11n, 802.1x, 802.3af |
| 802.11ac 80MHz Channel |
- |
| 802.11n Features |
20 MHz and 40 MHz High-Throughput (HT) Support
Increased maximum frame transmission by incorporating A-MPDU and A-MSDU Packet Aggregation
Conserve power via Dynamic MIMO power save |
| Advanced 802.11n to enhance rate-over-range including: |
Low-density parity check (LDPC) encoding
Maximum likelihood demodulation (MLD)
Maximum Ratio Combining (MRC) for improved receiver performance
Transmit beamforming (TxBF) |
| Mounting Options |
Wall or pole |
| Included Accessories |
PoE injector with AC power adapter, pole mount kit, wall mount kit, grouding cable and 4x dipole antennas |
| FortiPresence Capable |
Yes |
| Reg Domain |
International |
| Wireless Monitoring Capabilities |
| Frequencies scanned |
2.4 and 5 GHz |
| Background scan with client access on 2.4 and 5 GHz |
Yes |
| Full-time scan as dedicated monitor |
Yes |
| Dimensions |
| Length x Width x Height |
6.9 x 6.9 x 1.9 inches (176 x 176 x 47 mm) |
| Weight |
0.77 lb (0.35 kg) |
| Package (shipping) Weight |
1.33 lb (0.6 kg) |
| Environment |
| Power Supply |
Adapter Input: 100–240V, 50/60Hz, 0.4A Output: 12V DC, 1.25A |
| Power Consumption (Average) |
6.78 W |
| Power Consumption (Maximum) |
11.76 W |
| Humidity |
10–90% non condensing |
| Operating Temperature |
23–110°F (-5–45°C) |
| Storage Temperature |
-4–58°F (-20–70°C) |
| Directives |
Low Voltage Directive • RoHS |
Switch
.png){kind=icon}
.png){kind=logo}

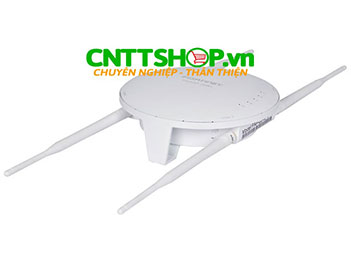

FortiAP 224D-I là sử dụng công nghệ wifi 802.11n có hiệu quả về chi phí, được thiết kế cho các khu vực không quan trọng có mật độ client thấp như các văn phòng chi nhánh nhỏ. Các cổng LAN tích hợp cho phép bạn kết nối trực tiếp các thiết bị có dây khác với AP, chẳng hạn như máy tính hoặc máy in
Bạn đang cần tư vấn về sản phẩm: FAP-224D-I ?
