| Hardware |
| Hardware Type |
Indoor AP |
| Number of Radios |
3 + 1 BT/BLE |
| Number of Antennas |
10 Internal + 1 BT/BLE Interna |
| Antenna Type and Peak Gain |
PIFA: 4 dBi for 2.4 GHz, 5 dBi for 5 GHz |
| Frequency Bands (GHz) |
2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 |
| Radio 1 Capabilities |
5.0 GHz a/n/ac/ax (4x4:4 stream) 20/40/80/160 MHz (64 QAM and 1024 QAM) |
| Radio 2 Capabilities |
2.4 GHz or 5.0 GHz (high band) a/b/g/n/ac/ax (4x4:4 stream) 20/40/80/160 MHz (64 QAM and 1024 QAM) |
| Radio 3 Capabilities |
2.4/5.0 GHz dual band b/g/n/ac (2x2:2 stream) 20/40 MHz (64 QAM) |
| Maximum Data Rate |
Radio 1: up to 4,804 Mbps
Radio 2: up to 4,804 Mbps
Radio 3: up to 300 Mbps
|
| Bluetooth Low Energy (BT/BLE) Radio |
Bluetooth scanning and iBeacon advertisement @ 4 dBm max TX power |
| Interfaces |
1x 10/100/1000/2500 Base-T RJ45
1x 10/100/1000 Base-T RJ45
1x Type A USB
1x RS-232 RJ45 Serial Port
|
| Power over Ethernet (PoE) |
Dual redundant PoE power ports with support for IEEE 802.3at |
| Simultaneous SSIDs |
Up to 16 (14 if background scanning enabled) |
| EAP Type(s) |
EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST |
| User/Device Authentication |
WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blacklist & whitelist |
| Maximum Tx Power (Conducted) |
• Radio 1: 5 GHz: 24 dBm / 251 mW (4 chains combined)*
• Radio 2: 2.4 GHz: 26 dBm / 398 mW (4 chains combined)* 5 GHz: 24 dBm / 251 mW (4 chains combined)*
• Radio 3: 2.4 GHz: 22 dBm / 158 mW (2 chains combined)*
|
| Kensington Lock |
Yes |
| IEEE Standards |
802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11ac, 802.1X, 802.3af, 802.3at, 802.3az |
| SSID Types Supported |
Local-Bridge, Mesh, & Tunnel |
| Per Radio Client Capacity |
Up to 512 |
| Cellular Co-existence |
Yes |
| LED Off Mode |
Yes |
| Advanced 802.11 Features |
| 802.11ac MU-MIMO Wave 2 |
Yes |
| Transmit Beam Forming (TxBF) |
Yes |
| Low-Density Parity Check (LDPC) Encoding |
Yes |
| Maximum Likelihood Demodulation (MLD) |
Yes |
| Maximum Ratio Combining (MRC) |
Yes |
| A-MPDU and A-MSDU Packet Aggregation |
Yes |
| MIMO Power Save |
Yes |
| Short Guard Interva |
Yes |
| OFMDA |
Yes |
| Wireless Monitoring Capabilities |
| Rogue Scan Radio Modes |
Background, Dedicated |
| WIPS / WIDS Radio Modes |
Background, Dedicated (recommended) |
| Packet Sniffer Mode |
Yes |
| Spectrum Analyzer |
Yes |
| Dimensions |
| Length x Width x Height |
8.46 x 8.46 x 2.26 inches (215 x 215 x 57.5 mm) |
| Weight |
1.0 lb (0.453 kg) |
| Package (shipping) Weight |
1.8 lbs (0.82 kg) |
| Mounting Options |
Ceiling, T-Rail, and Wall |
| Included Accessories |
Mount kits for Ceiling, T-Rail, and Wall |
| Environment |
| Power Supply |
SP-FAP200-PA-XX, or GPI-130 |
| Power Consumption (Maximum) |
24.5 W |
| Humidity |
10–90% Non-Condensed
5–90% Condensed
|
| Operating / Storage Temperature |
32–122°F (0–50°C) / -31–158°F (-35–70°C) |
| Directives |
Low Voltage Directive • RoHS |
| UL2043 Plenum Material |
Yes |
| Mean Time Between Failures |
>30 Years |
| Hit-less PoE Failover |
Yes (802.3at only |
| Certifications |
| Wi-Fi Alliance Certified |
No |
| Warranty |
| Limited Lifetime Warranty |
Yes |
Switch
.png){kind=icon}
.png){kind=logo}
.jpg)
.png){kind=logo}

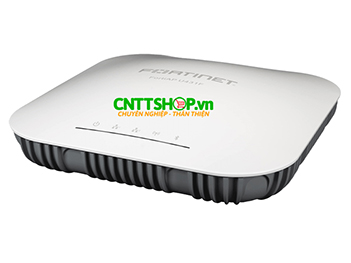

Bạn đang cần tư vấn về sản phẩm: FAP-U431F-V ?
