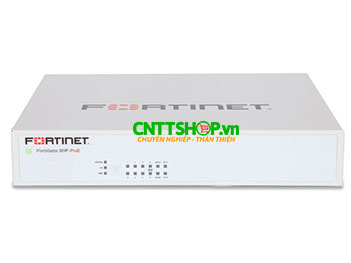

| Datasheet FortiGate FG-80F-POE |
| GE RJ45/SFP Shared Media Pairs |
2 |
| GE RJ45 PoE/+ Ports |
6 |
| GE RJ45 PoE/+ FortiLink Ports (Default) |
2 |
| USB Ports 3.0 |
1 |
| Console (RJ45) |
1 |
| Trusted Platform Module (TPM) |
1 |
| Bluetooth Low Energy (BLE) |
1 |
| IPS Throughput |
1.4 Gbps |
| NGFW Throughput |
1 Gbps |
| Threat Protection Throughput |
900 Mbps |
| System Performance |
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) |
10/10/7 Gbps |
| Firewall Latency (64 byte UDP packets) |
3.23 μs |
| Firewall Throughput (Packets Per Second) |
10.5 Mpps |
| Concurrent Sessions (TCP) |
1.5 Million |
| New Sessions/Second (TCP) |
45 000 |
| Firewall Policies |
5000 |
| IPsec VPN Throughput (512 byte) |
6.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels |
200 |
| Client-to-Gateway IPsec VPN Tunnels |
2500 |
| SSL-VPN Throughput |
950 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) |
200 |
| SSL Inspection Throughput (IPS, avg. HTTPS) |
715 Mbps |
| SSL Inspection CPS (IPS, avg. HTTPS) |
700 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) |
100 000 |
| Application Control Throughput (HTTP 64K) |
1.8 Gbps |
| CAPWAP Throughput (HTTP 64K) |
9 Gbps |
| Virtual Domains (Default / Maximum) |
10 / 10 |
| Maximum Number of FortiSwitches Supported |
16 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) |
96 / 48 |
| Maximum Number of FortiTokens |
500 |
| High Availability Configurations |
Active-Active, Active-Passive, Clustering |
| Dimensions |
| Height x Width x Length (inches) |
2.4 x 8.5 x 7.0 |
| Height x Width x Length (mm) |
60 x 216 x 178 |
| Weight |
3.1 lbs (1.4 kg) |
| Operating Environment and Certifications |
| Input Rating |
+54V DC, 3A (dual redundancy optional) |
| Power Required (Redundancy Optional) |
Powered by up to 2 External DC Power Adapters (1 adapter included), 100–240V AC, 50/60 Hz |
| Maximum Current |
115VAC/2.2A, 230VAC/1.1A |
| Total Available PoE Power Budget |
96W |
| Power Consumption (Average / Maximum) |
96W / 118W |
| Heat Dissipation |
402.26 BTU/h |
| 402.26 BTU/h |
32–104°F (0–40°C) |
| Storage Temperature |
-31–158°F (-35–70°C) |
| Humidity |
10–90% non-condensing |
| Noise Level |
31.56 dBA |
| Operating Altitude |
Up to 7400 ft (2250 m) |
| Compliance |
FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB |
| Certifications |
ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN |
