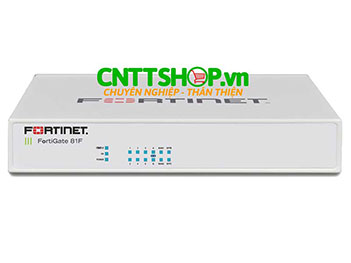

Tường lửa Fortigate FG-81F
| Fortigate Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|
FortiGate 81F cung cấp giải pháp SD-WAN tập trung vào ứng dụng, có thể mở rộng và bảo mật trong một thiết bị không quạt nhỏ gọn cho các văn phòng, chi nhánh doanh nghiệp cỡ vừa và nhỏ.
FG-81F Datasheet
FG-81F bảo vệ chống lại các mối đe dọa trên mạng với khả năng tăng tốc hệ thống trên chip và SD-WAN, giúp hệ thống an toàn trong một giải pháp đơn giản, giá cả phải chăng và dễ triển khai. Phương pháp kết nối mạng dựa trên bảo mật của Fortinet, cung cấp sự tích hợp chặt chẽ với thế hệ bảo mật mới.
Thông số kỹ thuật Fortigate 81F
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) |
10/10/7 Gbps |
| IPS Throughput |
1.4 Gbps |
| NGFW Throughput |
1 Gbps |
| Threat Protection |
900 Mbps |
| Hardware Specifications |
| GE RJ45/SFP Shared Media Pairs |
2 |
| GE RJ45 Internal Ports |
8 |
| USB Ports 3.0 |
1 |
| Console (RJ45) |
1 |
| Internal Storage |
1x 128 GB SSD |
| System Performance |
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) |
10/10/7 Gbps |
| Firewall Latency (64 byte UDP packets) |
4 μs |
| Firewall Throughput (Packets Per Second) |
10.5 Mpps |
| Concurrent Sessions (TCP) |
1.5 Million |
| New Sessions/Second (TCP) |
45,000 |
| Firewall Policies |
5,000 |
| IPsec VPN Throughput (512 byte) |
6.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels |
200 |
| Client-to-Gateway IPsec VPN Tunnels |
2,500 |
| SSL-VPN Throughput |
950 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) |
200 |
| SSL Inspection Throughput (IPS, avg. HTTPS) |
715 Mbps |
| SSL Inspection CPS (IPS, avg. HTTPS) |
700 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) |
100,000 |
| Application Control Throughput (HTTP 64K) |
1.8 Gbps |
| CAPWAP Throughput (HTTP 64K) |
9 Gbps |
| Virtual Domains (Default / Maximum) |
10 / 10 |
| High Availability Configurations |
Active / Active, Active / Passive, Clustering |
| Dimensions |
| Height x Width x Length |
1.5 x 8.5 x 6.3 inch, 38.5 x 216 x 160mm |
| Weight |
1.1 lbs (2.4 kg) |
| Form Factor |
Desktop/Wall Mount/Rack Tray |
| Operating Environment and Certifications |
| Input Rating |
Dual power 12Vdc, 3A |
| Power Required |
Powered by 2 External DC Power Adapters, 100–240V AC, 50/60 Hz |
| Power Consumption (Average / Maximum) |
13.5W / 16.5W |
| Heat Dissipation |
56.30 BTU/h |
| Operating Temperature |
32–104°F (0–40°C) |
| Storage Temperature |
-31–158°F (-35–70°C) |
| Humidity |
10–90% non-condensing |
| Noise Level |
Fanless 0 dBA |
| Operating Altitude |
Up to 7,400 ft (2,250 m) |
| Compliance |
FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB |
| Certifications |
ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN |
Các tùy chọn Option, License cho FG-81F
Fortinet FortiGate-81F 360 Protection (ASE FortiCare plus App Ctrl, IPS, AMP, Web Filtering, AS, Security Rating, IoT Detection, SD-WAN Orchestrator/Cloud Monitoring/Overlay Ctrl VPN, FMG/FAZ/IPAM Cloud, Industrial Security and FortiConverter Svc)
FortiGate-81F 1 Year 360 Protection (ASE FortiCare plus App Ctrl, IPS, AMP, Web Filtering, AS, Security Rating, IoT Detection, SD-WAN Orchestrator/Cloud Monitoring/Overlay Ctrl VPN, FMG/FAZ/IPAM Cloud, Industrial Security and FortiConverter Svc)
#FC-10-0081F-817-02-12
List Price: Liên hệ
FortiGate-81F 3 Year 360 Protection (ASE FortiCare plus App Ctrl, IPS, AMP, Web Filtering, AS, Security Rating, IoT Detection, SD-WAN Orchestrator/Cloud Monitoring/Overlay Ctrl VPN, FMG/FAZ/IPAM Cloud, Industrial Security and FortiConverter Svc)
#FC-10-0081F-817-02-36
List Price: Liên hệ
FortiGate-81F 5 Year 360 Protection (ASE FortiCare plus App Ctrl, IPS, AMP, Web Filtering, AS, Security Rating, IoT Detection, SD-WAN Orchestrator/Cloud Monitoring/Overlay Ctrl VPN, FMG/FAZ/IPAM Cloud, Industrial Security and FortiConverter Svc)
#FC-10-0081F-817-02-60
List Price: Liên hệ
Fortinet FortiGate-81F Enterprise Protection (24x7 FortiCare plus Application Control, IPS, AMP, Web Filtering, Antispam, IoT Detection, Industrial Security, Security Rating, and FortiConverter Svc)
FortiGate-81F 1 Year Enterprise Protection (24x7 FortiCare plus Application Control, IPS, AMP, Web Filtering, Antispam, IoT Detection, Industrial Security, Security Rating, and FortiConverter Svc)
#FC-10-0081F-811-02-12
List Price: Liên hệ
FortiGate-81F 3 Year Enterprise Protection (24x7 FortiCare plus Application Control, IPS, AMP, Web Filtering, Antispam, IoT Detection, Industrial Security, Security Rating, and FortiConverter Svc)
#FC-10-0081F-811-02-36
List Price: Liên hệ
FortiGate-81F 5 Year Enterprise Protection (24x7 FortiCare plus Application Control, IPS, AMP, Web Filtering, Antispam, IoT Detection, Industrial Security, Security Rating, and FortiConverter Svc)
#FC-10-0081F-811-02-60
List Price: Liên hệ
Fortinet FortiGate-81F Unified Threat Protection (UTP) (24x7 FortiCare plus Application Control, IPS, AMP, Web Filtering and Antispam Service)
FortiGate-81F 1 Year Unified Threat Protection (UTP) (24x7 FortiCare plus Application Control, IPS, AMP, Web Filtering and Antispam Service)
#FC-10-0081F-950-02-12
List Price: Liên hệ
FortiGate-81F 3 Year Unified Threat Protection (UTP) (24x7 FortiCare plus Application Control, IPS, AMP, Web Filtering and Antispam Service)
#FC-10-0081F-950-02-36
List Price: Liên hệ
FortiGate-81F 5 Year Unified Threat Protection (UTP) (24x7 FortiCare plus Application Control, IPS, AMP, Web Filtering and Antispam Service)
#FC-10-0081F-950-02-60
List Price: Liên hệ
Fortinet FortiGate-81F Advanced Threat Protection (24x7 FortiCare plus Application Control, IPS and AMP Service)
FortiGate-81F 1 Year Advanced Threat Protection (24x7 FortiCare plus Application Control, IPS and AMP Service)
#FC-10-0081F-928-02-12
List Price: Liên hệ
FortiGate-81F 3 Year Advanced Threat Protection (24x7 FortiCare plus Application Control, IPS and AMP Service)
#FC-10-0081F-928-02-36
List Price: Liên hệ
FortiGate-81F 5 Year Advanced Threat Protection (24x7 FortiCare plus Application Control, IPS and AMP Service)
#FC-10-0081F-928-02-60
List Price: Liên hệ
Fortinet FortiGate-81F FortiGate Cloud Management, Analysis and 1 Year Log Retention
FortiGate-81F 1 Year FortiGate Cloud Management, Analysis and 1 Year Log Retention
#FC-10-0081F-131-02-12
List Price: Liên hệ
FortiGate-81F 3 Year FortiGate Cloud Management, Analysis and 1 Year Log Retention
#FC-10-0081F-131-02-36
List Price: Liên hệ
FortiGate-81F 5 Year FortiGate Cloud Management, Analysis and 1 Year Log Retention
#FC-10-0081F-131-02-60
List Price: Liên hệ
Fortinet FortiGate-81F FortiGuard Advanced Malware Protection (AMP) including Antivirus, Mobile Malware and FortiGate Cloud Sandbox Service
FortiGate-81F 1 Year FortiGuard Advanced Malware Protection (AMP) including Antivirus, Mobile Malware and FortiGate Cloud Sandbox Service
#FC-10-0081F-100-02-12
List Price: Liên hệ
Fortinet FortiGate-81F FortiGuard IPS Service
FortiGate-81F 1 Year FortiGuard IPS Service
#FC-10-0081F-108-02-12
List Price: Liên hệ
Fortinet FortiGate-81F FortiGuard Web Filtering Service
FortiGate-81F 1 Year FortiGuard Web Filtering Service
#FC-10-0081F-112-02-12
List Price: Liên hệ
Fortinet FortiGate-81F FortiGuard Industrial Security Service
FortiGate-81F 1 Year FortiGuard Industrial Security Service
#FC-10-0081F-159-02-12
List Price: Liên hệ
Fortinet FortiGate-81F FortiGuard Security Rating Service
FortiGate-81F 1 Year FortiGuard Security Rating Service
#FC-10-0081F-175-02-12
List Price: Liên hệ
Fortinet FortiGate-81F IoT Detection Service
FortiGate-81F 1 Year IoT Detection Service
#FC-10-0081F-231-02-12
List Price: Liên hệ
Fortinet FortiGate-81F FortiIPAM Cloud Service
FortiGate-81F 1 Year FortiIPAM Cloud Service
#FC-10-0081F-233-02-12
List Price: Liên hệ
Fortinet FortiGate-81F SD-WAN Cloud Assisted Monitoring: Cloud-based SD-WAN Bandwidth & Quality Monitoring Service
FortiGate-81F 1 Year SD-WAN Cloud Assisted Monitoring: Cloud-based SD-WAN Bandwidth & Quality Monitoring Service
#FC-10-0081F-288-02-12
List Price: Liên hệ
Fortinet FortiGate-81F SD-WAN Overlay Controller VPN Service: Cloud-based SD-WAN VPN Overlay Service & Portal
FortiGate-81F 1 Year SD-WAN Overlay Controller VPN Service: Cloud-based SD-WAN VPN Overlay Service & Portal
#FC-10-0081F-289-02-12
List Price: Liên hệ
Fortinet FortiGate-81F SD-WAN Orchestrator Entitlement License
FortiGate-81F 1 Year SD-WAN Orchestrator Entitlement License
#FC-10-0081F-319-02-12
List Price: Liên hệ
Fortinet FortiGate-81F FortiManager Cloud: Cloud-based Central Management & Orchestration Service
FortiGate-81F 1 Year FortiManager Cloud: Cloud-based Central Management & Orchestration Service
#FC-10-0081F-179-02-12
List Price: Liên hệ
Fortinet FortiGate-81F FortiAnalyzer Cloud: Cloud-based Events and Security Log Monitoring including IOC Service
FortiGate-81F 1 Year FortiAnalyzer Cloud: Cloud-based Events and Security Log Monitoring including IOC Service
#FC-10-0081F-188-02-12
List Price: Liên hệ
Fortinet FortiGate-81F FortiConverter Service for one time configuration conversion service
FortiGate-81F 1 Year FortiConverter Service for one time configuration conversion service
#FC-10-0081F-189-02-12
List Price: Liên hệ
Fortinet FortiGate-81F 24x7 FortiCare Contract
FortiGate-81F 1 Year 24x7 FortiCare Contract
#FC-10-0081F-247-02-12
List Price: Liên hệ
FortiGate-81F 3 Year 24x7 FortiCare Contract
#FC-10-0081F-247-02-36
List Price: Liên hệ
FortiGate-81F 5 Year 24x7 FortiCare Contract
#FC-10-0081F-247-02-60
List Price: Liên hệ
Fortinet FortiGate-81F ASE FortiCare (24x7 plus Advanced Services Ticket Handling)
FortiGate-81F 1 Year ASE FortiCare (24x7 plus Advanced Services Ticket Handling)
#FC-10-0081F-284-02-12
List Price: Liên hệ
FortiGate-81F 3 Year ASE FortiCare (24x7 plus Advanced Services Ticket Handling)
#FC-10-0081F-284-02-36
List Price: Liên hệ
FortiGate-81F 5 Year ASE FortiCare (24x7 plus Advanced Services Ticket Handling)
#FC-10-0081F-284-02-60
List Price: Liên hệ
Fortinet FortiGate-81F Next Day Delivery Premium RMA Service (Requires 24x7 or ASE FortiCare)
FortiGate-81F 1 Year Next Day Delivery Premium RMA Service (Requires 24x7 or ASE FortiCare)
#FC-10-0081F-210-02-12
List Price: Liên hệ
Fortinet FortiGate-81F 4-Hour Hardware Delivery Premium RMA Service (Requires 24x7 or ASE FortiCare)
FortiGate-81F 1 Year 4-Hour Hardware Delivery Premium RMA Service (Requires 24x7 or ASE FortiCare)
#FC-10-0081F-211-02-12
List Price: Liên hệ
Fortinet FortiGate-81F 4-Hour Hardware and Onsite Engineer Premium RMA Service (Requires 24x7 or ASE FortiCare)
FortiGate-81F 1 Year 4-Hour Hardware and Onsite Engineer Premium RMA Service (Requires 24x7 or ASE FortiCare)
#FC-10-0081F-212-02-12
List Price: Liên hệ
Fortinet FortiGate-81F Secure RMA Service
FortiGate-81F 1 Year Secure RMA Service
#FC-10-0081F-301-02-12
List Price: Liên hệ
Bạn đang cần tư vấn về sản phẩm: #FG-81F ?
Phụ kiện thiết bị tường lửa Firewall Fortinet Fortigate FG-81F bao gồm dây nguồn, adapter, dây mạng, dây console và tài liệu kèm theo nhé bạn.
Firewall FortiGate FG-81F được bảo hành trong thời gian 12 tháng ạ
Thiết bị Firewall FortiGate FG-81F hoạt động tốt và ổn định nhất ở trong môi trường có nhiệt độ từ 0°C đến 40°C ạ
Thông tin về các tính năng của Firewall FortiGate FG-81F cùng với datasheet của sản phẩm đã được gửi vào mail của bạn, bạn vui lòng check giúp shop nha. Nếu có thắc mắc gì khác, hãy liên hệ với shop qua hotline 0906.051.599 để được tư vấn một cách chi tiết hơn bạn nhé
Giá tường lửa Fortigate FG-81F 8 x GE RJ45 ports, 2 x RJ45/SFP shared media WAN ports đã được gửi vào mail, bạn vui lòng check mail nhé.
