| TECHNOLOGY |
| OPERATING MODES |
Centralized deployment mode
Distributed deployment mode
Remote VPN tunnel mode |
| SECURITY |
WEP, WPA-PSK, WPA-TKIP, WPA2-AES, 802.11i, 802.1X (EAP-TLS, EAP-TTLS, PEAP, LEAP, EAP-FAST, EAP-SIM, EAP-AKA, and EAP-MD5)
802.1X and captive portal authentication against local database on the controller, RADIUS, and Active Directory
RADIUS-assisted per-user and per-ESSID access control via MAC filtering |
| MANAGEMENT |
Automatically discovers controllers and downloads configuration settings for plug-and-play deployment
Upgrades and management using System Director/E(z)RF® Network Manager
Support for SNMP |
| WIRELESS SPECIFICATIONS |

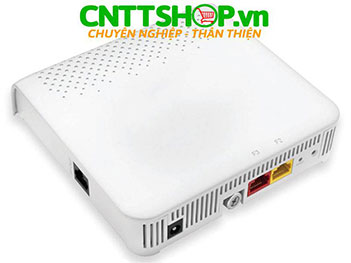

| Model Introduction |
AP122 is at dual-radio architecture with:
– 2.4 GHz Std 802.11b/g/n
– 5.6 GHz 802.11a/n/ac |
| Supported Radio Technologies |
2x2:2SS (two spatial streams)
Supported transmit beam-forming (TxBF)
IEEE Std 802.11b with Direct Sequence Spread Spectrum (DSSS)
IEEE Std 802.11ac with 20/40/80 MHz (HT20/HT40/VHT80) channel width
IEEE Std 802.11n with 40 MHz (HT40) channel width
IEEE Std 802.11a/g with 20 MHz channel |
| Supported Modulation |
IEEE Std 802.11ac: BPSK, QPS K, 16-QAM, 64-QAM, and 256-QAM
IEEE Std 802.11a/g/n: BPSK, QPSK, 16-QAM, and 64-QAM
IEEE Std 802.11b: BPSK, QPSK, CCK |
| Supported MCS Index |
Supported MCS0–MCS9 (NSS=1-3) for IEEE Std 802.11ac
Supported MCS0–MCS23 for IEEE Std 802.11n |
| Supported Frequency Bands |
2.400–2.4835 GHz (ISM)
5.150–5.250 GHz (UNII-1)
5.250–5.350 GHz (UNII-2, DFS)
5.470–5.725 GHz (UNII-2 Extended, DFS) |
| PHYSICAL SPECIFICATIONS |
| Power |
IEEE PoE (Power over Ethernet) 802.3af/802.3at injector or switch
48V external power adapter (sold separately) |
| Other Interfaces |
One 10/100/1000 Mbps BASE-T Ethernet RJ45 for Data uplink (G1)
One 10/100 Mbps BASE-T Ethernet RJ45 port with PoE Out support.
One 10/100 Mbps BASE-T Ethernet RJ45 port
One USB 2.0 port (Type-A)
One reset button
One RJ45 Passthrough port: RJ45 to RJ45 |
| LED Indicators |
One tri-color LED for AP status |
| Mounting |
Wall mount: junction box wall mount bracket included |
| Dimensions |
5.51 x 5.35 x 1.18 inches (14.0 x 13.6 x 3.0 cm) |
| Weight |
with mounting bracket: 2.3 lbs (1.1 kg) |
| Environmental |
Operating temperature: 32–104°F (0–40°C)
Operating humidity: 5–95% non-condensing
Storage temperature: -40–158°F (-40–70°C) ambient
Storage humidity: 5–95% non-condensing |
| REGULATORY COMPLIANCE |
| Unintentional Radiation Compliance Requirements |
FCC Part 15.107 – 47CFR15.107 October 1, 2008 Class B
FCC Part 15.109 – 47CFR15.109 October 1, 2008 Class B
ICES-003 Class B – issue 4, February 2004
EN 301 489-1
EN 301 489-17
EN55022 Class B – 2006
EN55024 / AS/NZS CISPR 24 / Immunity
EN61000-4-2,3,4,5,6
Japan VCCI Class B
EN60601-1-2 |
| Radio Compliance Requirements |
FCC Part 15.247 – 47 CFR Ch. I (10–1–00 Edition)
FCC Part 15.407 – 47 CFR15.407 October 1, 2008
RSS-210 Issue 8, December 2010
RSS-210 W52, W53 and W56
EN 300 328 v1.7.1 (2006-05)
EN 301 893 V1.7.1 (2008-12)
Japan Radio Law 38-24-1 (Ninsho) – WW 2.4 GHz band
Japan Radio Law 38-24-1 (Ninsho) – XW 5.3 GHz band and YX 5.6 GHz band |
| Safety Compliance Requirements |
UL 60950-1, 2nd Edition, 2011-12-19
CSA C22.2 No. 60950-1-07, 2nd Edition, 2011-12
EN 60950-1:2006+A11:2009+A1:2010+A12:2011
IEC 60950-1(ed. 2), IEC 60950-1(ed. 2);am1 |
| Environmental Compliance Requirements |
ROHS, Directive 2011/65/EU (RoHS 2)
WEEE, Directive 2012/19/EU
REACH, Regulation (EC) No 1907/2006 |
| Ethernet Standards |
Ethernet IEEE 802.3
Power Over Ethernet IEEE 802.3at PD
Power Over Ethernet IEEE 802.3af PSE
Wireless IEEE 802.11a/b/g/n/ac |
| CERTIFICATIONS |
| CERTIFICATIONS |
WiFi Certified — IEEE Std 802.11a/b/g/n/ac |
