TECHNOLOGY |
OPERATING MODES |
Centralized deployment mode
Distributed deployment mode
MESH mode
Bridge mode
Remote VPN tunnel mode |
SECURITY |
WEP, WPA-PSK, WPA-TKIP, WPA2-AES, 802.11i, 802.1X (EAP-TLS, EAP-TTLS, PEAP, LEAP, EAP-FAST, EAP-SIM, EAP-AKA, and EAP-MD5)
802.1X and captive portal authentication against local database on the controller, RADIUS, and Active Directory
RADIUS-assisted per-user and per-ESSID access control via MAC filtering |
MANAGEMENT |
Centrally managed by any Fortinet controller running System Director 6.1 or later
Automatically discovers controllers and downloads configuration settings for plug-and-play deployment
Upgrades and management via System Director / Network Manager
Support for SNMP
Concurrent Clients Per Radio (Maximum / Recommended) — 128 / 40 |
WIRELESS SPECIFICATIONS |
Model Introduction |

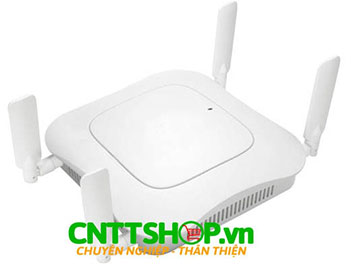

dual-radio, single-band IEEE Std 802.11b/g/n for 2.4 GHz band and IEEE Std 802.11a/n/ac for 5.x GHz band access point with four RP-SMA connectors and four external omnidirectional antennas |
Supported Radio Technologies |
Dual-radio access point for indoor environment
2x2:2SS (two spatial streams) Supported 2.4 GHz and 5.x GHz for single-band, dual-radio operation; data rate up to 1167 Mbps
Supported transmit beam-forming (TxBF)
IEEE Std 802.11n/a/g/ac with Orthogonal Frequency Division Multiplexing (OFDM)
IEEE Std 802.11b with 22 MHz channels and Direct Sequence Spread Spectrum (DSSS)
IEEE Std 802.11ac WAVE1 with 20/40/80 MHz (HT20/HT40/VHT80) channel width
IEEE Std 802.11n with 40 MHz (HT40) channel width
IEEE Std 802.11a/g with 20 MHz channel |
Supported Modulation |
IEEE Std 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, and 256-QAM
IEEE Std 802.11a/g/n: BPSK, QPSK, 16-QAM, and 64-QAM
IEEE Std 802.11b: BPSK, QPSK, CCK |
Supported MCS Index |
Supported MCS0–MCS9 for IEEE Std 802.11ac (NSS=1–2)
Supported MCS0–MCS15 for IEEE Std 802.11n |
Supported Frequency Bands |
2.400–2.4835 GHz (ISM)
5.150–5.250 GHz (UNII-1)
5.250–5.350 GHz (UNII-2, DFS)
5.470–5.725 GHz (UNII-2 Extended, DFS)
5.725–5.825 GHz (UNII-3)
Country-specific restrictions apply; adjusted by controller upon approva |
Data Rates Supported (Mbps) |
IEEE Std 802.11ac two streams: 13.0–866.7 Mbps (MCS0-HT20 @ 800 nS to MCS9-VHT80 @ 400 nS)
IEEE Std 802.11ac per stream: 6.5–433.3 Mbps (MCS0-HT20 @ 800 nS to MCS9-VHT80 @ 400 nS)
IEEE Std 802.11n Two streams: 13.0–300.0 Mbps (MCS8-HT20@800nS to MCS15-HT40@400nS)
IEEE Std 802.11n per stream: 6.5–150.0 Mbps (MCS0-HT20 @ 800nS to MCS7-HT40@400nS)
IEEE Std 802.11a/g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps IEEE Std 802.11b: 1, 2, 5.5, and 11 Mbps |
PHYSICAL SPECIFICATIONS |
Power |
Operated at IEEE Std 802.3af power, powered by IEEE Std 802.3af or 802.3 at PoE (Power over Ethernet) injector or switch
12V external power adapter (sold separately) |
Other Interfaces |
Networks: One 10/100/1000 BASE-T Ethernet RJ45 uplink (G1), one 10/100/1000 BASE-T Ethernet RJ45 (G2) (disabled when powered with 802.3af), auto-sensing link speed and MDI/MDX
Four RPSMA RF connectors (For AP822e, external antenna SKU)
One RJ45 port (G1) support IEEE Std 802.3af or 802.3 at PoE
One USB 2.0 port (Type-A) (disabled when powered with 802.3af)
One console port
One reset button
One Kensington security slot |
LED Indicators |
One tri-color LED for AP status
Additional LEDs for Ethernet activity over two RJ45 ports (G1 & G2) |
Mounting |
Wall mount: junction box wall mount bracket included
Three mounting kits included with access point:
650-00232, 15/16” T-bar & wall-mount combo adapter
650-00233, 9/16” T-bar adapter
Flat-surface wall-mount bracket (used with 650-00232)
840-00126, Wall Mount Hardware Kit (including to 669-00004 space, 665-00085 M3x10 screws, & 665-00102-M3x30 screws) |
Option (ordered separately) |
One RJ45 Console
CBL-RJ45-ADAPT-X5, GbE extension adapter
MNT-FEET-SET-X5, rubber feet for desktop staging |
Installation in the Air-Handling Space |
AP822e metal enclosure only by removing plastic façade |
Dimensions |
with mounting bracket: 7.1 x 7.1 x 2.7 inches (18.0 x 18.0 x 6.8 cm)
without plastic façade: 6.3 x 6.3 x 2.1 inches (16.1 x 16.0 x 5.2 cm)
|
Weight |
with mounting bracket: 1.9 lbs (0.9 kg)
without façade and mounting bracket: 1.5 lbs (0.7 kg) |
Environmental |
Operating temperature: 32–122°F (0–50°C)
Operating humidity: 5–95% non-condensing
Storage temperature: -40–158°F (-40–70°C) ambient
Storage humidity: 5–95% non-condensing |
REGULATORY APPROVAL |
REGULATORY APPROVAL |
LFCC (United States of America)
CE Mark (European Community)
Industry Canada (Canada)
TELEC (Japan)
Safety Approval (worldwide)
For more country-specific regulatory approval, please contact your Fortinet representative |
CERTIFICATIONS |
CERTIFICATIONS |
WiFi CERTIFIED™
EU RoHS
CB Report |
