| TECHNOLOGY |
| OPERATING MODES |
Centralized deployment mode
Distributed deployment mode
Remote VPN tunnel mode |
| QOS |
802.11E support (including WMM)
Dynamic WMM rate adaptation
Configurable QoS rules per user and application |
| SECURITY |
WEP, WPA-PSK, WPA-TKIP, WPA2-AES, 802.11i, 802.1X (EAP-TLS, EAP-TTLS, PEAP, LEAP, EAP-FAST, EAP-SIM, EAP-AKA, and EAP-MD5)
802.1X and captive portal authentication against local database on the controller, RADIUS, and Active Directory
RADIUS-assisted per-user and per-ESSID access control via MAC filtering |
| MANAGEMENT |
Centrally managed by any Fortinet controller running System Director
Automatically discovers controllers and downloads configuration settings for plug-and-play deployment
Upgrades and management using System Director / Network Manager
Support for SNMP |
| WIRELESS SPECIFICATIONS |
| Model Introduction |

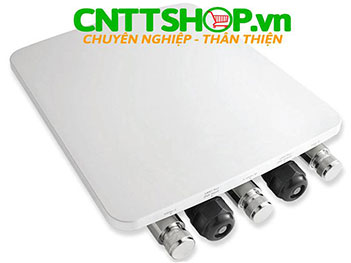

IEEE802.11a/b/g/n/ac access point, dual radio with six N-type connectors for external antennas |
| Supported Radio Technologies |
2.4 GHz and 5 GHz radio access point
3x3:3SS (three spatial streams)
Outdoor application
Supported 2.4 GHz (TurboQAM Mode) Supported transmit beam-forming (TxBF)
IEEE Std 802.11ac standard
IEEE Std 802.11n/ac with Orthogonal Frequency Division Multiplexing (OFDM)
IEEE Std 802.11b with Direct Sequence Spread Spectrum (DSSS)
IEEE Std 802.11ac with 20/40/80 MHz (VHT20/40/80) channel width
IEEE Std 802.11n with 40 MHz (HT40) channel width
IEEE Std 802.11a/g with 20 MHz channel
IEEE Std 802.11b with 22 MHz channe |
| Supported Modulation |
IEEE Std 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
IEEE Std 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
IEEE Std 802.11b: BPSK, QPSK, CCK
Featured 256-TurboQAM modulation for 2.4 GHz and 5 GHz operations |
| Supported MCS Index |
Supported MCS0–MCS9 (NSS=1-3) for IEEE Std 802.11ac
Supported MCS0–MCS23 for IEEE Std 802.11n |
| Supported Frequency Bands |
2.400–2.4835 GHz (ISM)
5.150–5.250 GHz (UNII-1)
5.250–5.350 GHz (UNII-2, DFS)
5.470–5.725 GHz (UNII-2 Extended, DFS)
5.725–5.825 GHz (UNII-3)
Country-specific restrictions apply; adjusted by controller upon approva |
| Operating Channels |
- 2.4 GHz Channels
- CH1–11 for U.S., Canada
- CH1–13 for Japan, Europe, rest of world
- 5 GHz HT20 (20 MHz) Channel
- Non-DFS Channel: CH36, 40, 44, 48, 144, 149, 153, 161, 165
- DFS Channel upon approval: CH 52, 56, 60, 64, 100, 104, 108, 112, 116, 120*, 124*, 128*, 132*, 136, 140, 144 (*weather radar)
- 5 GHz HT40 (40 MHz) Center Channel
- Non-DFS channel: CH38, 46, 151, 159
- DFS channel upon approval: CH54, 62, 102, 110, 118*, 116*, 134* 134, 142 (*weather radar)
- 5 GHz VHT80 (80 MHz) Center Channel
- Non-DFS channel: CH42, 155
- DFS channel upon approval: CH58, 106, 122* (*weather channel)
- Platform supports Dynamic Frequency Selection (DFS & DFS/TPC)
- Country-specific restrictions apply; adjusted by controller upon approva
|
| Supported Data Rate (Mbps) |
IEEE Std 802.11ac three streams: 19.5–1300 Mbps (MCS0-HT20@800nS to MCS9-HT40@400nS)
IEEE Std 802.11ac per stream: 6.5–433.3 Mbps (MCS0-HT20@800nS to MCS9-HT40@400nS)
IEEE Std 802.11n Three streams: 13–450 Mbps (MCS9-HT20@800nS to MCS23-HT40@400nS)
IEEE Std 802.11n Per stream: 6.5–150 Mbps (MCS0-HT20 @ 800nS to MCS7-HT40@400nS)
IEEE Std 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
IEEE Std 802.11b: 1, 2, 5.5, 11 Mbps |
| Configurable Transmission Power |
Transmission power configurable in 1.0 dBm increments
Unused radios can be disabled via software for lower power consumption
Antennas 6 external omnidirectional antennas for 3x3 MIMO with maximum antenna gain of 6 dBi in 2.4 Ghz and 7 dBi in 5 Ghz. |
| PHYSICAL SPECIFICATIONS |
| Power |
Operates at IEEE 802.3at power
Powered by IEEE Std 802.1at PoE (Power over Ethernet) injector or switch |
| Other Interfaces |
Networks: 1x 10/100/1000 Base-T Ethernet RJ45 uplink (G1), 1x 10/100/1000 Base-T Ethernet RJ45 (G2) for downlink and future expansion purposes, auto-sensing link speed and MDI/MDX
6 N-Type connectors for external antenna SKU (AP832e)
1 RJ45 port (G1) support IEEE Std 802.3af or 802.3at PoE
1 USB 2.0 port (Type-A) for future feature
1 Kensington security slot |
| LED Indicators |
1 LED for AP Power ON status
2 LEDs for Ethernet activity over two RJ45 ports (LAN1 & LAN2)
2 LEDs for the 2.4 GHz and 5.0 GHz radio status indicator |
| Mounting |
1.5–1.6 inch (5–7.5 cm) diameter pole-mounting kit (included)
Wall-mounting kit (included) |
| Dimensions |
11.0 x 8.54 x 2.0 inches (28.0 x 21.7 x 5.0 cm) |
| Weight |
without mounting bracket: 5 lbs (2.27 kg)
with mounting bracket: 7 lbs (3.18 kg) |
| Environmental |
Operating temperature: -40˚–149°F (-40–65°C)
Operating humidity: 5–95% non-condensing
Storage temperature: -40–158˚ F (-40–70°C) ambient
Storage humidity: 5–95% non-condensing
Surge protection built in |
| REGULATORY APPROVAL |
| REGULATORY APPROVAL |
LFCC (United States of America)
CE Mark (European Community)
Industry Canada (Canada)
TELEC (Japan)
Safety Approval (worldwide)
For more country-specific regulatory approval, please contact your Fortinet representative |
| CERTIFICATIONS |
| CERTIFICATIONS |
WiFi CERTIFIED™
EU RoHS
CB Report
IP67 |
