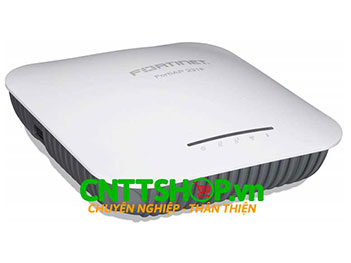

| FAP-231F |
| Hardware |
| Hardware Type |
Indoor AP |
| Number of Radios |
3 + 1 BLE |
| Number of Antennas |
3 Dual band Internal Wi-Fi + 1 BLE/ZigBee |
| Antenna Type and Peak Gain |
PIFA antenna
Dual band: 4.5dBi for 2.4Ghz and 5.5dBi for 5GHz
BLE antenna 4.0dBi at 2.4GHz band |
| Frequency Bands (GHz |
2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 |
| Radio 1 Capabilities |
Frequency band: 2.4GHz
Channel width: 20/40MHz
Modulation: BPSK, QPSK, 64/256/1024 QAM
MIMO Chains: 2x2 Service |
| Radio 2 Capabilities |
Frequency band: 5.0GHz
Channel width: 20/40/80MHz
Modulation: BPSK, QPSK, 64/256/1024 QAM
MIMO Chains: 2x2 Service |
| Radio 3 Capabilities |
Frequency bands: 2.4GHz and 5.0GHz
MIMO Chains: 1x1 Frequency Scanning |
| Maximum Data Rate |
Radio 1: up to 574 Mbps
Radio 2: up to 1201 Mbps
Radio 3: Frequency scanning only |
| Bluetooth Low Energy Radio |
Bluetooth scanning and iBeacon advertisement @ 10 dBm max TX power |
| Interfaces |
2x 10/100/1000 Base-T RJ45, 1x Type 2.0 USB, 1x RS-232 RJ45 Serial Port |
| Power over Ethernet (PoE) |
1 x 802.3at PoE default
1 x 802.3af PoE no USB function |
| Simultaneous SSIDs |
Up to 16 (14 if background scanning enabled) |
| EAP Type(s) |
EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST |
| User/Device Authentication |
WPA, WPA2, and WPA3 with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blocklist & allowlist |
| Maximum Tx Power (Conducted) |
Radio 1: 2.4GHz: 23 dBm / 200 mW (2 chains combined)
Radio 2: 5GHz: 22 dBm / 158 mW (2 chains combined) |
| IEEE Standards |
802.11a, 802.11b, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11ac, 802.11ax, 802.1Q, 802.1X, 802.3ad, 802.3af, 802.3at, 802.3az |
| SSID Types Supported |
Local-Bridge, Tunnel, and Mesh |
| Per Radio Client Capacity |
Up to 512 clients per radio (Radio1 and Radio2) |
| Reset Button |
Yes |
| LED Off Mode |
Yes |
| Advanced 802.11 Features |
| OFDMA |
Yes |
| Spatial Reuse (BSS Coloring) |
Yes |
| UL MU-MIMO 802.11ax mode |
Yes |
| DL-MU-MIMO |
Yes |
| Enhanced Target Wake Time (TWT) |
Yes |
| Dimensions |
| Length x Width x Height |
6.0 x 6.0 x 2.86 inches (153.2 x 153.2 x 53.0 mm) |
| Weight |
1.0 lbs (0.543 kg) |
| Package (shipping) Weight |
2.1lbs (0.95 kg) |
| Mounting Options |
Ceiling, T-Rail, and Wall |
| Included Accessories |
Standard Mount kit for Ceiling, T-Rail, and Wall |
| Environment |
| Power Supply |
802.3at PoE SP-FAP200-PA-XX or GPI-130 |
| Power Consumption (Maximum) |
17W |
| Humidity |
5 - 90% non condensing |
| Operating / Storage Temperature |
32–122°F (0 - 50°C) / -22–158°F (-30–70°C) |
