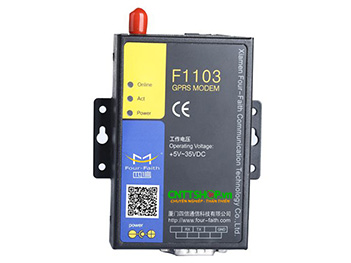

Four-Faith F1103 GPRS Modem
Tính năng của Four-Faith F1103:
- High-powered industrial cellular module
- Housing: iron, providing IP30 protection
- Power range: DC 5~35V
- RS232 port: 15KV ESD protection
- SIM/UIM port: 15KV ESD protection
- Power port: reverse-voltage and overvoltage protection
- Antenna port: lightning protection(optional)
- Support standard RS232 port that can connect toa serial device directly
- Provide dial-up software that can make it alwaysonline
- Provide SMS tool software
- Support standard AT command
- Support SMS, dial-up and CSD function
- Support APN/VPDN
Thông số kỹ thuật Four-Faith F1103 Specifications:
| Datasheet Four-Faith F1103 | |
| Cellular Module | Industrial cellular module |
| Standard and Band | EGSM900/ GSM1800MHz, GSM850/ 900/ 1800/1900MHz (optional) Compliant to GSM phase 2/2+ GPRS class 10, class 12 (optional) |
| Bandwidth | 85.6Kbps |
| TX power | GSM850/ 900: <33dBm GSM1800/ 1900: <30dBm |
| RX sensitivity | <-107dBm |
| Interface type | |

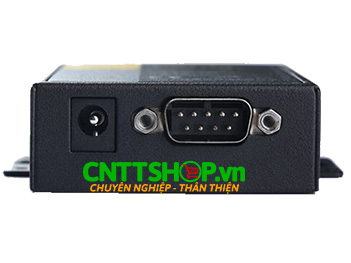

| Serial | 1 RS232 port, 15KV ESD protection Data bits: 5, 6 , 7, 8 Stop bits: 1, 1.5, 2 Parity: none, even, odd, space, mark Baud rate: 110~230400 bps |
| Indicator | “Power”, “ACT”, "Online” |
| Antenna | Standard SMA female interface, 50 ohm, lighting protection(optional) |

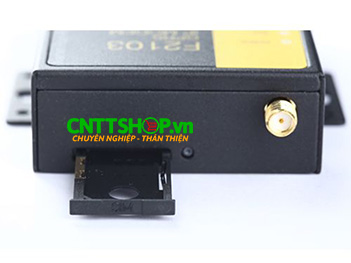

| SIM/UIM | Standard 3V/ 1.8V user card interface, 15KV ESD protection |
| Power | Standard 3-PIN power jack, reverse-voltage and over voltage protection |
| Power supply | |
| Standard Power | DC 12V/ 0.5A |
| Power range | DC 5~35V |
| Consumption | <200mA (12V) |
| Physical Characteristics | |
| Housing | Iron, providing IP30 protection |
| Dimensions | 91x58.5x22 mm |
| Weight | 205g |
| Environmental Limits | |
| Operating Temperature | -25~+65ºC (-13~+149℉) |
| Extended Operating Temperature | -30~+75ºC (-22~+167℉) |
| Storage Temperature | -40~+85ºC (-40~+185℉) |
| Operating Humidity | 95% ( unfreezing) |
