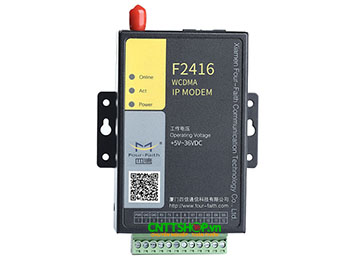

Four-Faith F2416 Data Terminal Unit
Thông số kỹ thuật Four-Faith F2416 Specifications:
|
Datasheet F2416 |
|
| Cellular Module | |
| Standard and Band | UMTS/ WCDMA/ HSDPA /HSUPA 850 /1900/ 2100MHz, 850/ 900/ 1900/ 2100MHz (optional) GSM850/ 900/ 1800/ 1900MHz WCDMA/ HSDPA/ HSUPA/ EDGE CLASS 12 |
| Bandwidth | HSDPA: 7.2Mbps(DL), HSUPA: 5.76Mbps (UL) UMTS: 384Kbps (DL), 384Kbps (UL) |
| TX power | <24dBm |
| RX sensitivity | <-109dBm |
| Hardware System | |
| CPU | Industrial 32 bits CPU |
| FLASH | 512KB (Extendable) |
| SRAM | 256KB |
| Interface Type | |
| Serial | 2 RS232 port and 1 RS485 (orRS422) port, 15KV ESD protection Data bits: 5, 6 , 7, 8 Stop bits: 1, 1.5, 2 Parity: none, even, odd, space, mark Baud rate: 110~230400 bps |
| Indicator | "Power", "ACT", "Online" |
| Antenna | Standard SMA female interface, 50 ohm, lighting protection (optional) |
| SIM/UIM | Standard 3V/1.8V user card interface, 15KV ESD protection |
| Power | Terminal block interface, reverse-voltage and overvoltage protection |
| Power Input | |
| Standard Power | DC 12V/0.5A |
| Power Range | DC 5~36V |
| Power Consumption | |
| Communication | 95~165mA@12VDC 205~365mA@5VDC |
| Standby | 40~50mA@12VDC 80~100mA@5VDC |
| Sleep | 5mA@12VDC 6mA@5VDC |
| Physical Characteristics | |
| Housing | Iron, providing IP30 protection |
| Dimensions | 91x58.5x22 mm |
| Weight | 205g |
| Environmental Limits | |
| Operating Temperature |
-35~+75ºC (-22~+167℉) |
| Storage Temperature | -40~+85ºC (-40~+185℉) |
| Operating Humidity | 95% ( unfreezing) |
