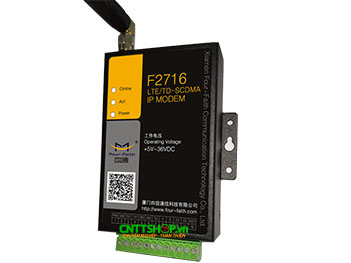

Four-Faith F2716 TDD-LTE IP MODEM
Thông số kỹ thuật Four-Faith F2716 Specifications:
| Datasheet F2116 | |
| Cellular Specifications | |
| Standard and Band |
LTE TDD 2600/ 1900/ 2300MHz(Band 38/ 39/ 40) (800/ 1400/ 1800MHz (Band27 /61 /62) (optional) TD-SCDMA 2010/ 1900MHz(A / F frequency band,Band 34/ 39) GSM/ GPRS/ EDGE 900/ 1800/ 1900MHz |
| Bandwidth |
LTE TDD: 61Mbps(DL), 18Mbps(UL) TD-SCDMA: 2.8Mbps(DL), 2.2Mbps(UL) |
| TX power | <23dBm |
| RX sensitivity | <-97dBm |
| Hardware System | |
| CPU | Industrial 32 bits CPU |
| FLASH | 512KB (Extendable) |
| SRAM | 256KB |
| Interface Type | |
| Serial |
2 RS232 port and 1 RS485(orRS422) port, 15KV ESD protection Data bits: 5, 6 ,7, 8 Stop bits: 1, 1.5, 2 Parity: none, even, odd, space, mark Baud rate: 110~230400 bps |
| Indicator | "Power", "ACT", "Online" |
| Antenna | Standard SMA female interface, 50 ohm, lighting protection(optional) |
| SIM/UIM | Standard 3V/ 1.8V user card interface, 15KV ESD protection |
| Power | Terminal block interface, reverse-voltage and overvoltage protection |
| Power Input | |
| Standard Power | DC 12V/ 0.5A |
| Power Range | DC 5~36V |
| Power Consumption | |
| Communication | 75~95mA@12VDC 150~200mA@5VDC |
| Standby | 40~50mA@12VDC 85~105mA@5VDC |
| Sleep | 3mA@12VDC 6mA@5VDC |
| Physical Characteristics | |
| Housing | Iron, providing IP30 protection |
| Dimensions | 91x58.5x22 mm |
| Weight | 205g |
| Environmental Limits | |
| Operating Temperature |
-35~+75ºC (-22~+167℉) |
| Storage Temperature | -40~+85ºC (-40~+185℉) |
| Operating Humidity | 95% ( unfreezing) |
