| Datasheet Four-Faith F3334 |
| Cellular Specification |
| Cellular Module |
Industrial cellular module |
| Standard and Band |
GSM850/ 900/ 1800/ 1900MHz
GPRS/ EDGE Class 12 |
| Bandwidth |
236.8Kbps |
| TX power |
GSM850/ 900: <33dBm
GSM1800/ 1900: <30dBm |
| RX sensitivity |
<-106dBm |
| WIFI Specification |
| Standard |
IEEE802.11b/g/n |
| Bandwidth |
IEEE802.11b/g: 54Mbps (max)
IEEE802.11n: 150Mbps (max) |
| Security |
WEP, WPA, WPA2, etc.
WPS (optional) |
| TX power |
21.5dBm（11g），26dBm（11b |
| RX sensitivity |
<-72dBm@54Mpbs |
| Hardware System |
| CPU |
Industrial 32bits CPU |
| FLASH |
8MB(Extendable to 64MB) |
| SDRAM |
64MB |

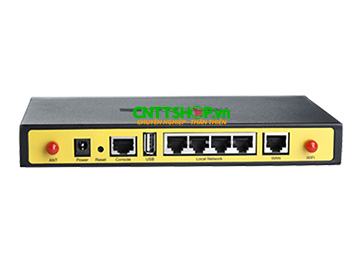

| Interface type |
| WAN |
1x 10/100 Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
| LAN |
4x 10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
| Serial |
1x RS232(or RS485/ RS422) port, 15KV ESD protection
Data bits: 5, 6 , 7, 8
Stop bits: 1, 1.5 (optional), 2
Parity: none, even, odd, space (optional), mark (optional)
Baud rate: 2400~115200 bps |

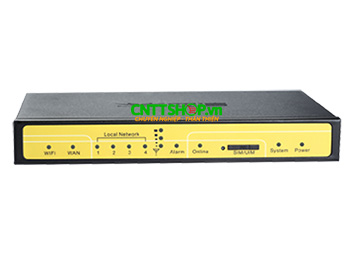

| Indicator |
"Power", "System", "Online", "Alarm", " Local Network ", "WAN", "WIFI", "Signal Strength" |
| Antenna |
Cellular: Standard SMA female interface, 50 ohm, lighting protection(optional)
WIFI: Standard SMA male interface, 50 ohm, lighting protection(optional) |
| SIM/UIM |
Standard 3V/1.8V user card interface, 15KV ESD protection |
| Power |
Standard 3-PIN power jack, reverse-voltage and overvoltage protection |
| Reset |
Restore the router to its original factory default settings |
| USB |
Standard A type USB host interface (reserved) |
| Power supply |
| Standard Power |
DC 12V/1.5A |
| Power range |
DC 5~35V |
| Consumption |
<450mA (12V) |
| Physical Characteristics |
| Housing |
Iron, providing IP30 protection |
| Dimensions |
206x135x28 mm |
| Weight |
790g |
| Environmental Limits |
| Operating Temperature |
-35~+75ºC（-31~+167℉) |
| Storage Temperature |
-40~+85ºC (-40~+185℉) |
| Operating Humidity |
95% ( unfreezing) |
