| Datasheet Four-Faith F3446 |
| Cellular Module |
Industrial cellular module |
| Standard and Band |
UMTS/WCDMA/ HSDPA/ HSUPA/ HSPA+ 850/ 1900/ 2100MHz, 850/ 900/1900/ 2100MHz (optional)
GSM 850/ 900/ 1800/ 1900MHz
GPRS/EDGE CLASS 12 |
| Bandwidth |
DC-HSPA+: Download speed 42Mbps, Upload speed 5.76Mbps
HSPA+: Download speed 21Mbps, Upload speed 5.76Mbps
HSDPA: Download speed 7.2Mbps, HSUPA: Upload speed 5.76Mbps
UMTS: 384Kbps |
| TX power |
<24dBm |
| WIFI Specification |
| Standard |
IEEE802.11b/ g/ n |
| Bandwidth |
IEEE802.11b/g: 54Mbps (max)
IEEE802.11n: 150Mbps (max) |
| Security |
WEP, WPA, WPA2, etc
WPS (optional) |
| TX power |
20dBm(11n), 24dBm(11g), 26dBm(11b) |
| RX sensitivity |
<-72dBm@54Mpbs |
| Hardware System |
| CPU |
Industrial 32bits CPU |
| FLASH |
16MB(Extendable to 64MB) |
| SDRAM |
128MB |

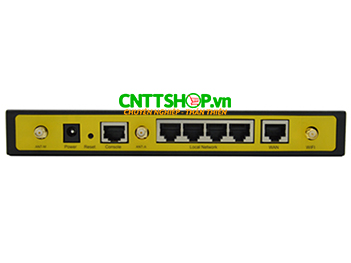

| Interface |
| WAN |
1x 10/100 Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
| LAN |
4x 10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
| Serial |
1x RS232 (or RS485/RS422) port, 15KV ESD protection
Data bits: 5, 6, 7, 8
Stop bits: 1, 1.5(optional), 2
Parity: none, even, odd, space (optional), mark (optional)
Baud rate: 2400~115200 bps |
| Indicator |
"Power", "System", "Online-1", "Online-2", " Local Network ", "WAN", "WIFI", "Signal Strength" |
| Antenna |
Cellular:2 Standard SMA female interface, 50 ohm, lighting protection(optional)
WIFI: Standard SMA male interface, 50 ohm, lighting protection (optional) |
| SIM/UIM |
Standard 3V/1.8V user card interface, 15KV ESD protection |
| Power |
Standard 3-PIN power jack, reverse-voltage and over-voltage protection |
| Reset |
Restore the router to its original factory default settings |
| Power |
| Standard Power |
DC 12V/1.5A |
| Power range |
DC 5~36V |
| Consumption |
| Standby |
272~295mA@12VDC |
| Communication |
283~360mA@12VDC |
| Schedule Shutdown |
2.57~4.2mA@12DVC |
| Physical Characteristics |
| Housing |
Iron, providing IP30 protection |
| Dimensions |
207x135x28 mm |
| Weight |
790g |
| Operating Temperature |
| Operating Temperature |
-35~+75ºC (-31~+167℉) |
| Storage Temperature |
-40~+85ºC (-40~+185℉) |
| Operating Humidity |
95% (unfreezing) |
